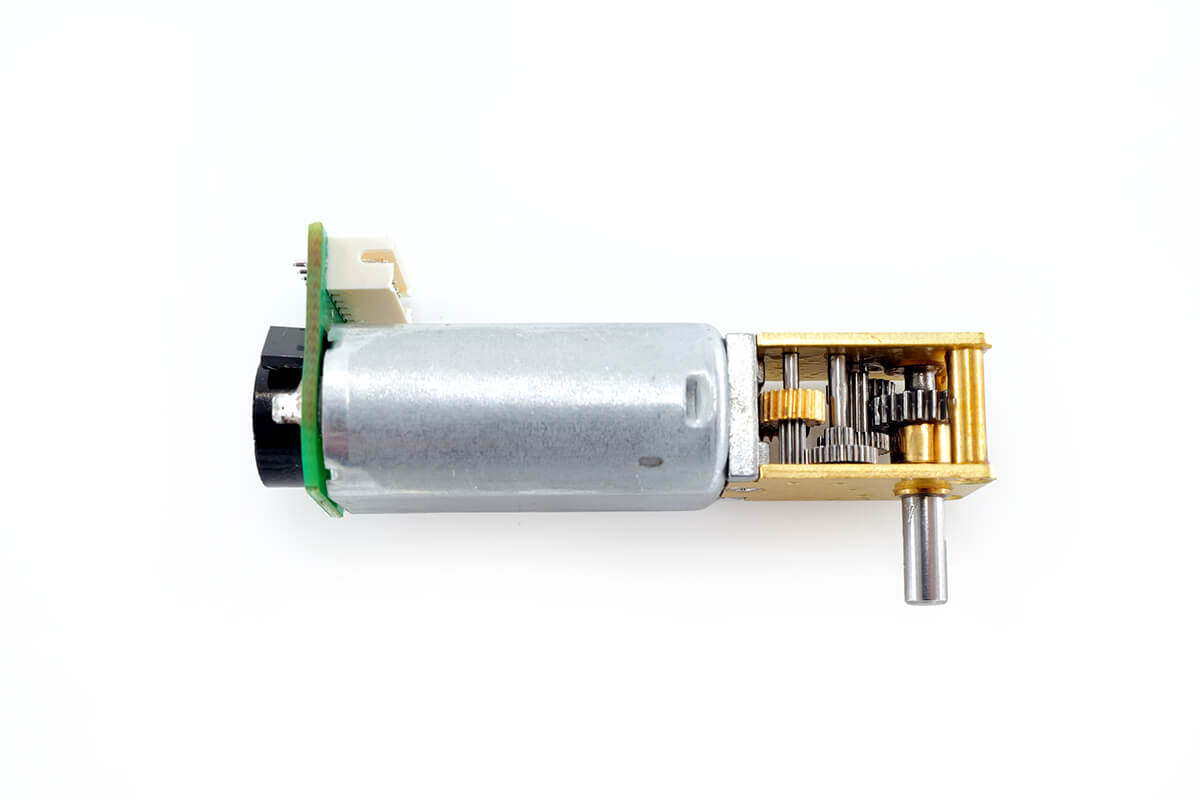

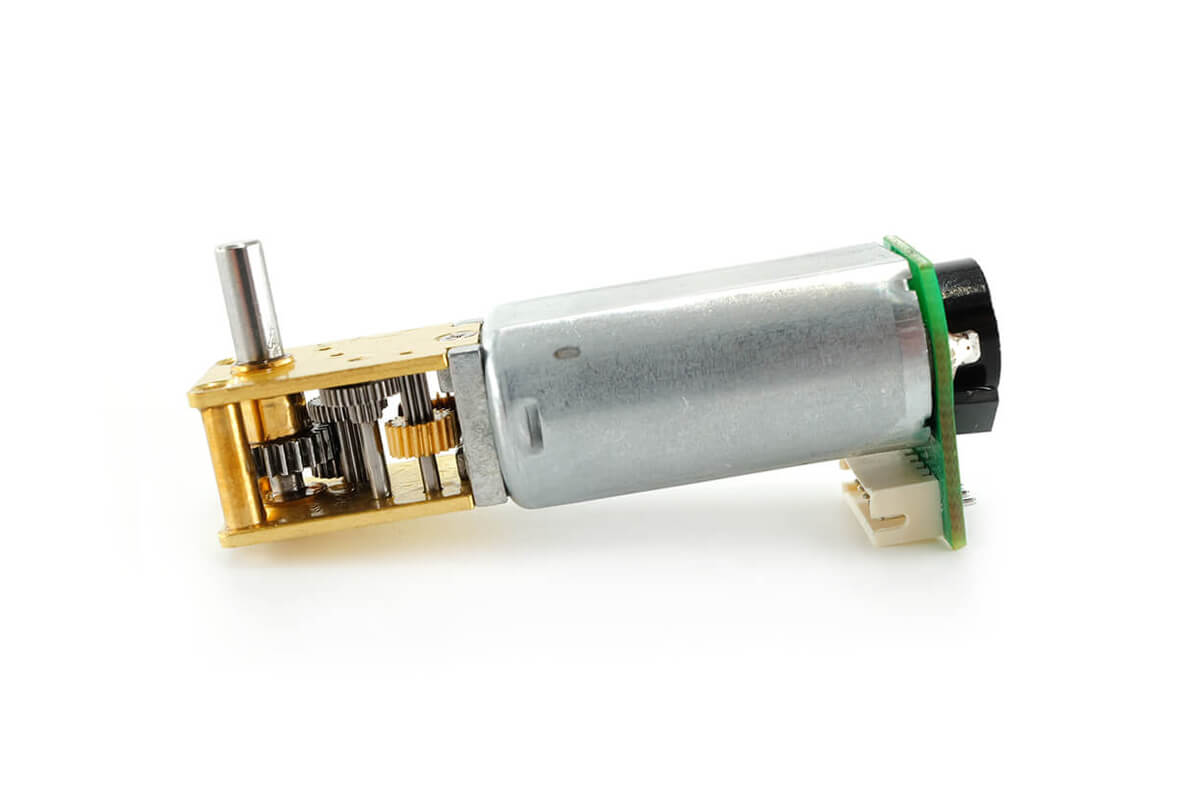

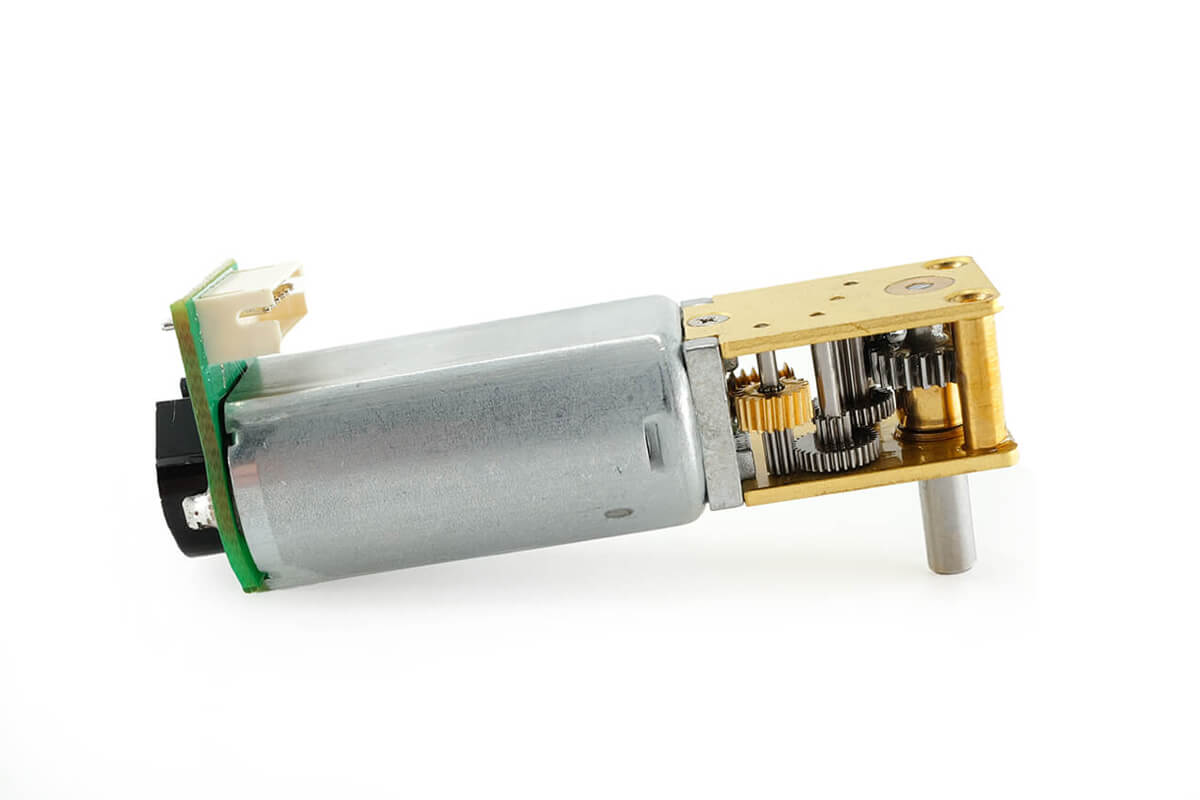

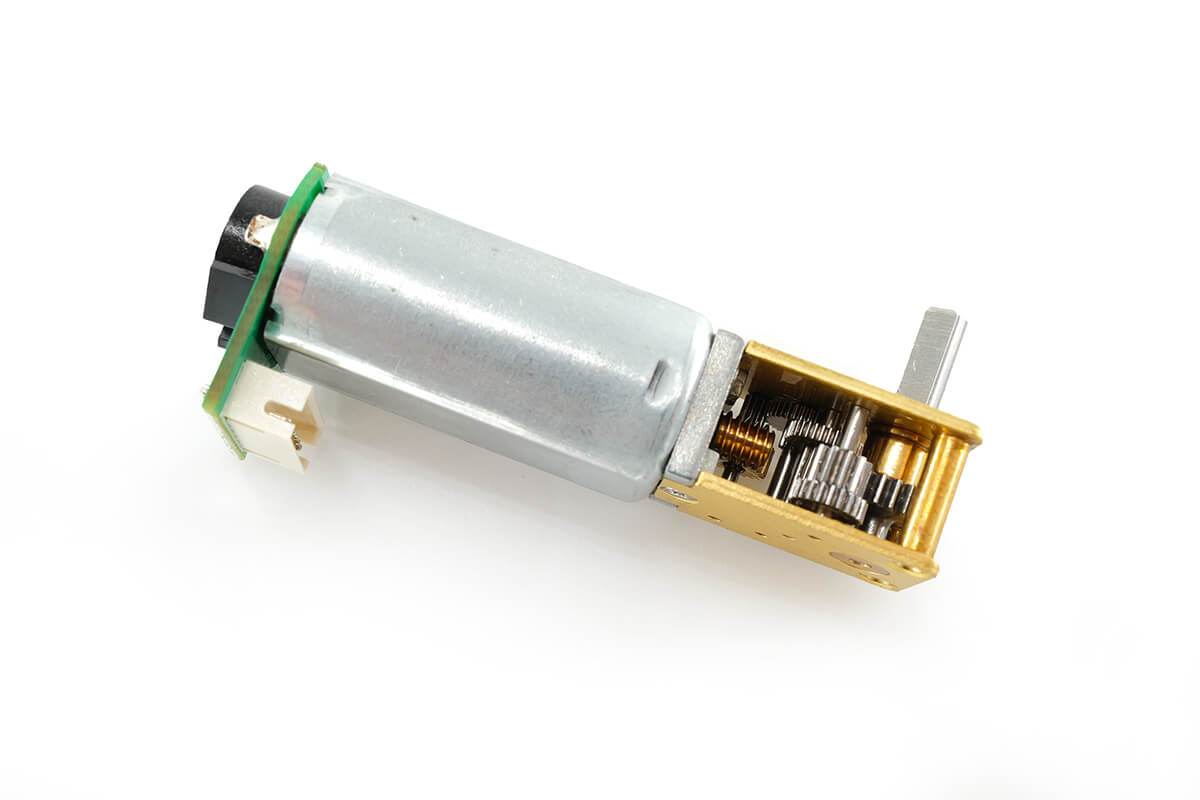

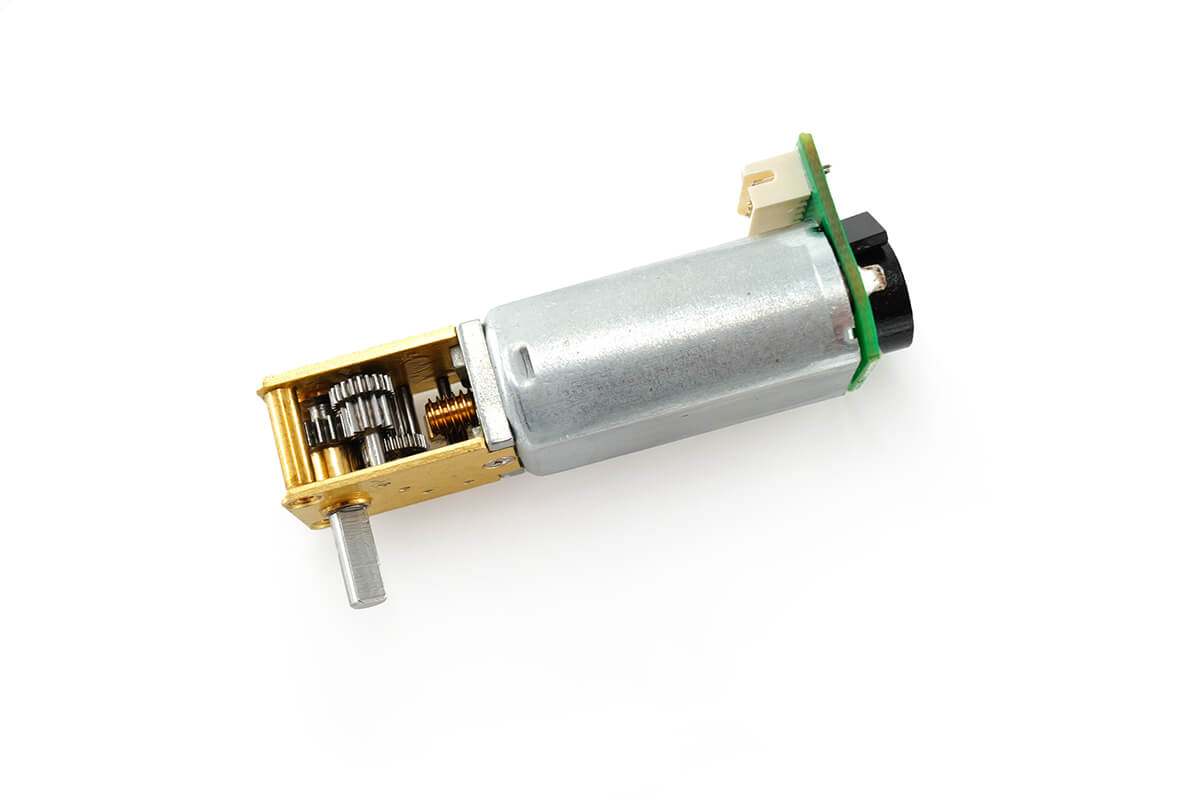

15mm 6V 12V Coaxial Different Direction Gearmotor w/Encoder Model NFP-GW12T-050YZ-EN
$15.50
Discover the efficiency of the 15mm 6V 12V Coaxial Different Direction Gearmotor. Experience high torque and durability for your projects!
Small Worm Geared Motor Key Features
- Type: Magnetic AB Hall Encoder Motors.
- Metal Gear: Wear-resistant, torsion-resistant, long-lasting, fast heat dissipation, strong compounding ability.
- Pure Copper Wire Winding: Low resistance, high conductivity, increased motor torque.
- High Temperature Resistance: High quality original material, ensures the components remain secure even at high speeds.
| Model | NFP-GW12T-050YZ-EN |
|---|---|
| Shaft Diameter | 4mm |
| Shaft Length | 7.5mm |
| Rated Voltage | 6V / 12V DC |
| No-load Speed | 8rpm – 135rpm |
| Weight | appr. 25g |
Model: NFP-GW12T-050YZ-EN, 6V DC
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 118:1 | 67rpm | ≤0.05A | 50rpm | ≤0.18A | 0.15kg.cm | ≤0.5kg.cm | ≤0.6A |
| 236:1 | 33rpm | ≤0.05A | 25rpm | ≤0.18A | 0.32kg.cm | ≤1.2kg.cm | ≤0.6A |
| 1,030:1 | 8rpm | ≤0.05A | 6rpm | ≤0.18A | 1.2kg.cm | ≤4.5kg.cm | ≤0.6A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-GW12T-050YZ-EN, 12V DC
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 118:1 | 135rpm | ≤0.65A | 105rpm | ≤0.23A | 0.3kg.cm | ≤1kg.cm | ≤1A |
| 236:1 | 68rpm | ≤0.65A | 53rpm | ≤0.23A | 0.65kg.cm | ≤2.5kg.cm | ≤1A |
| 1,030:1 | 16rpm | ≤0.65A | 12rpm | ≤0.23A | 2.4kg.cm | ≤9kg.cm | ≤1A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Lightweight Worm Gear Reduction Motor Dimension
Compact Size: With a 15mm diameter, this motor is perfect for use in tight spaces or small devices.
Worm Gearbox with Motor Magnetic Encoder Wiring Diagram
High Precision Encoder: The built-in encoder delivers real-time speed and position feedback, ensuring smooth and accurate control.
6V 12V DC Motor Encoder Parameters
Easy To Use: Miniature DC gear motor is compact and lightweight, making it easy to attach a wheel or copter blade to its output shaft.
| Parameters | AB Dual-phase Incremental Magnetic Hall Encoder |
|---|---|
| Line Speed | Basic Pulse 7PPR x Gear Reduction Ratio |
| Supply Voltage | 3.3V / 5.0V DC |
| Basic Skills | Built-in pull-up shaping resistor, direct connection to MCU |

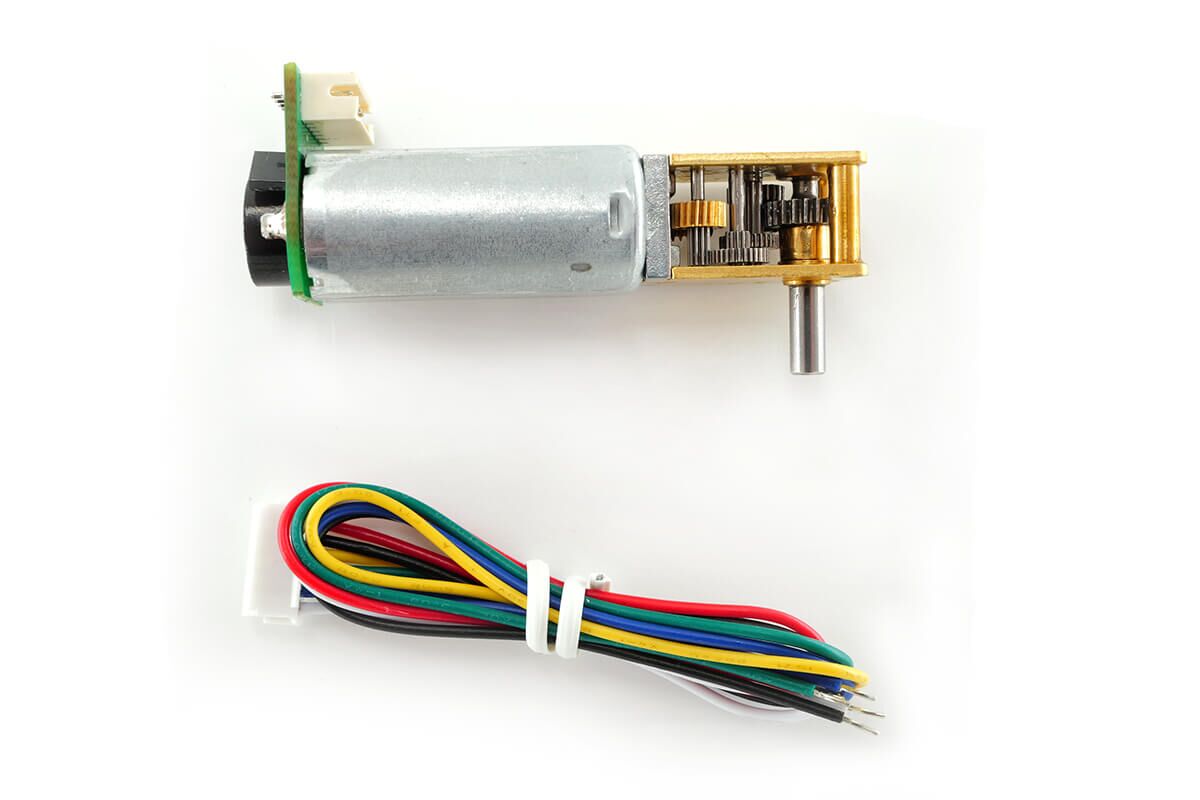

| Interface Type | ZH1.5-6PIN (standard connection cable) |
| Output Signal Type | Square Wave AB Phase |
| Response Frequency | 100KHz |
| Basic Pulse Number | 7PPR |
| Number Of Magnetic Ring Trigger Poles | 14 Poles (7 Pairs) |
Applications:
Intelligent Self-Balancing Two-Wheelers, Intelligent Tracking Cars, Smart Home Appliances, Robots, Camera Cranes, Electric Tape Cutting Machines, etc.
Keywords:
12 volt dc worm gear motor, high torque dc motor with encoder, 050 motor with encoder, magnetic encoder.
Development Samples:
Sampling quantities for stocked models are available for ordering directly from us online.
Engineering & Manufacturing:
Please contact one of our Sales Engineers for a quotation for production and consultation for customization and integration services.
Payment Method:
Payment methods : Paypal or T/T
Shipping Method:
1.Delivery: DHL door to door 5-7days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
5.In order to ensure you receive your order tax free upon import, we will declare it with a lower value, pls be noted ,thanks!
FAQ - Frequently Asked Questions
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It's better to offer application prototype drawings to us if possible.
Q: What's your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What's the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
