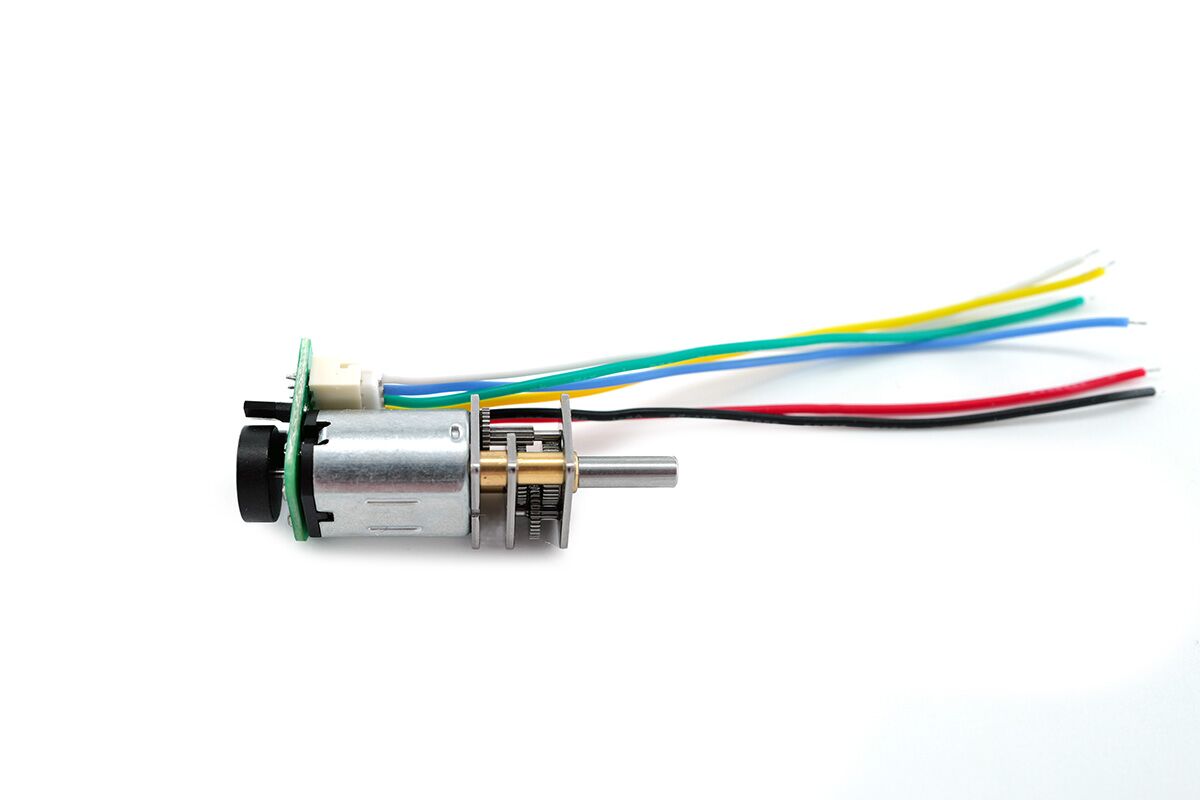

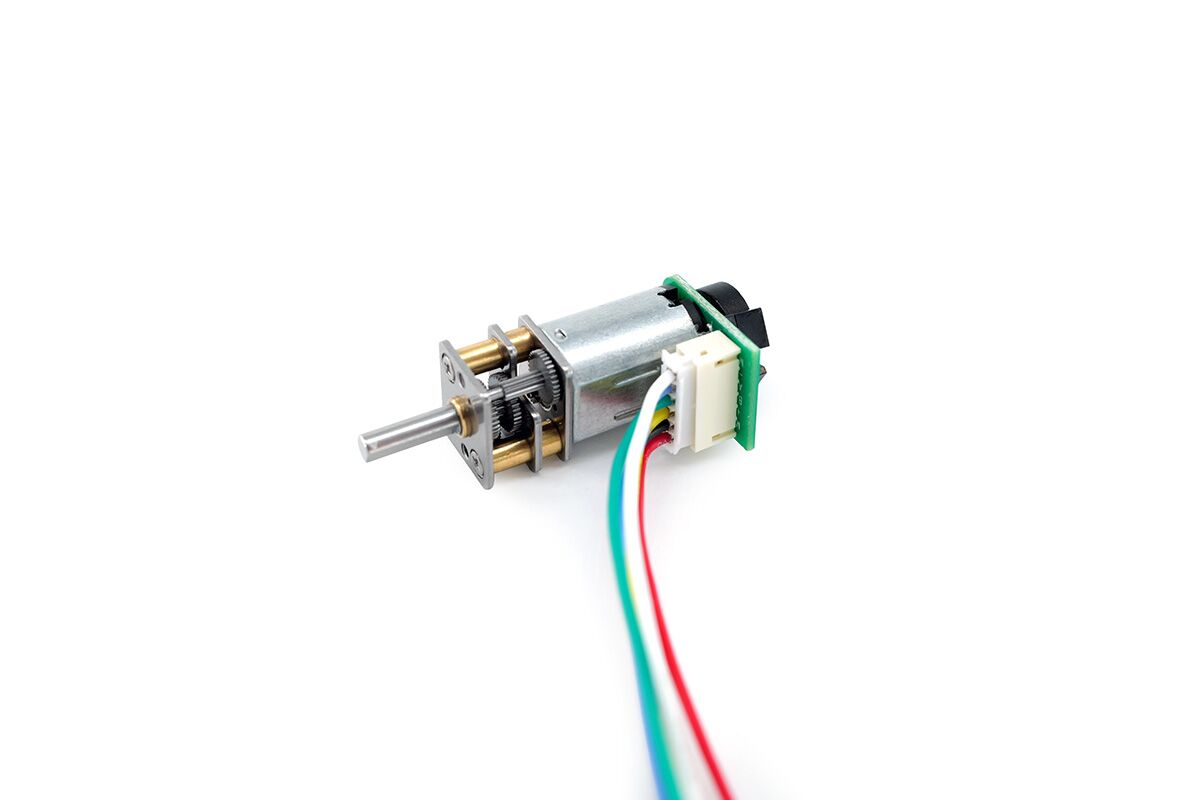

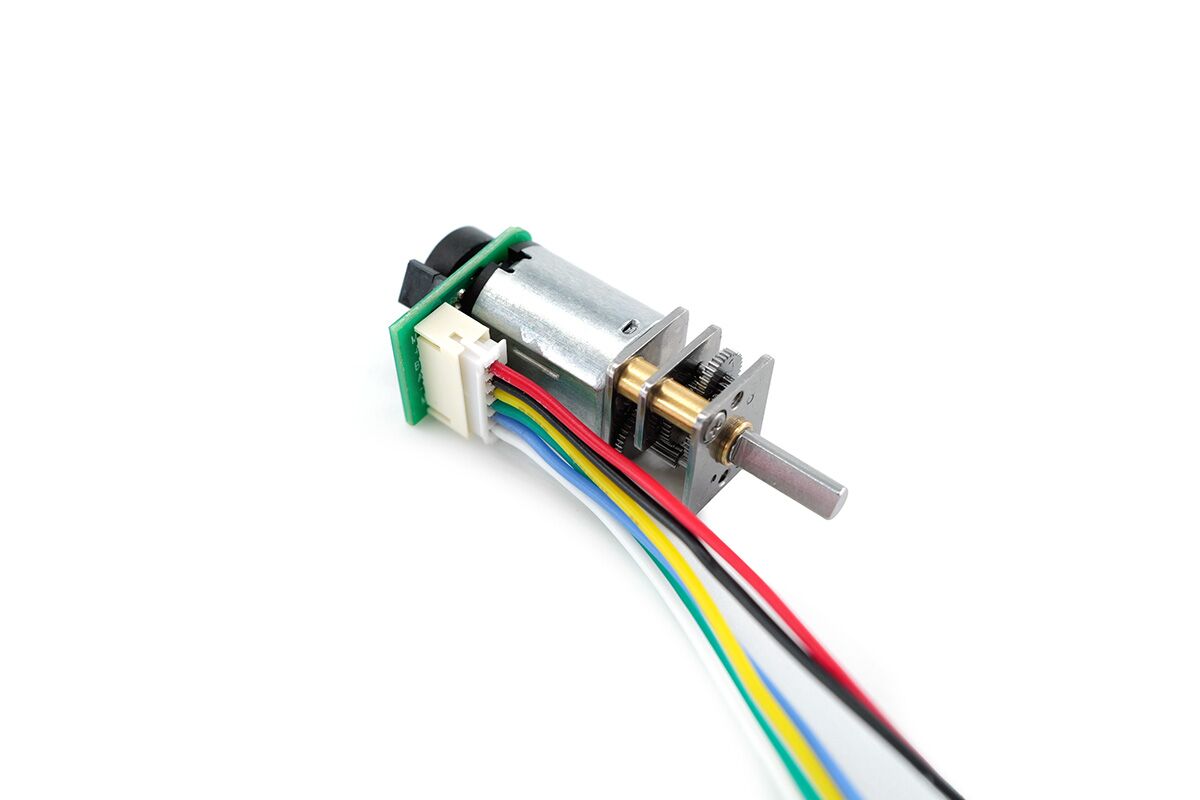

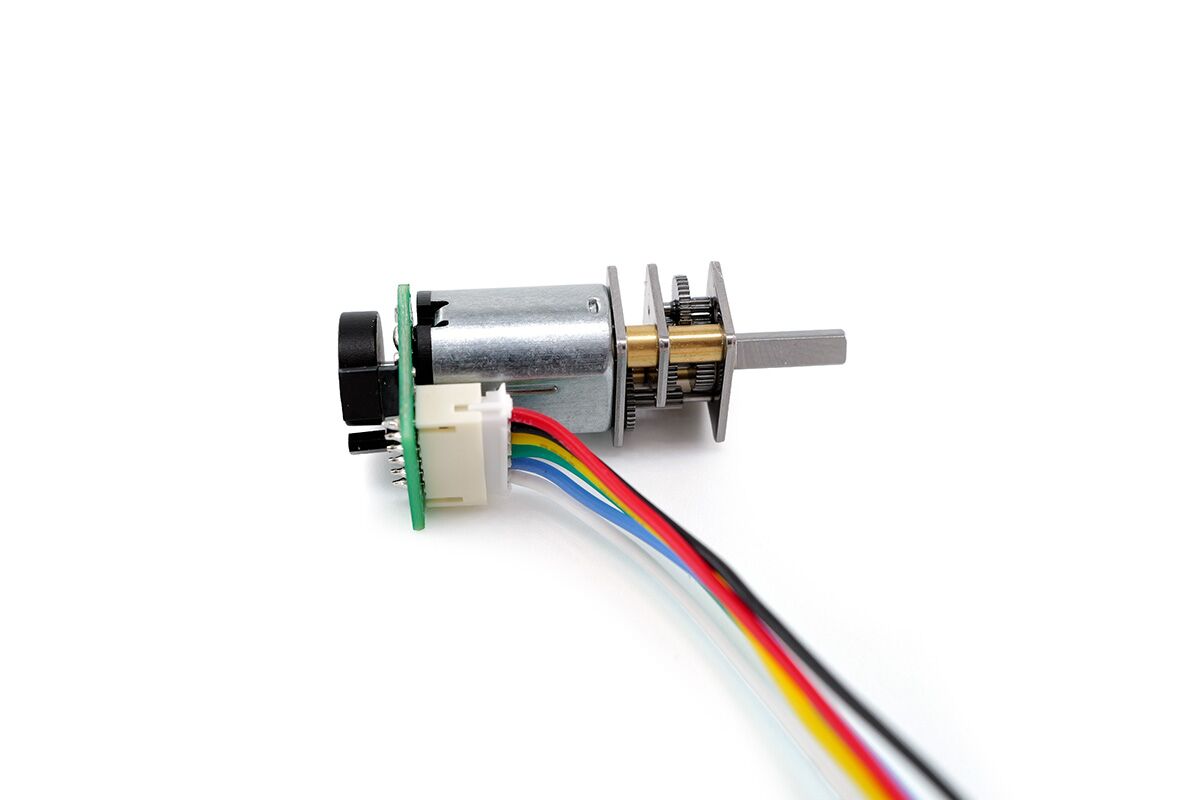

2.4V 5V 12V Small Gearmotor With Encoder Model NFP-GM12-N20VA-EN
180.00$
Ask for a quotation for mass production quantity, contact us or customizations and integration.
12V DC Gear Motor With Encoder Technical Sheet
DC micro gearmotor high torque gear boxes motor used for smart selfie stick, smart camera gimbal, smart robot camera corner, smart micro robot, etc.
Single Motor Technical Data
| Model | NFP-GM12-N20VA-EN-13110 | NFP-GM12-N20VA-EN-09220 | NFP-GM12-N20VA-EN-05430 |
|---|---|---|---|
| Voltage | 2.4V | 5.0V | 12.0V |
| No Load Speed | 14,800rpm | 14,800rpm | 16,000rpm |
| No Load Current | 60mA | 30mA | 15mA |
| At Maximum Efficiency Speed | 12,000rpm | 12,000rpm | 12,500rpm |
| At Maximum Efficiency Torque | 2.5g.cm | 2.5g.cm | 3.0g.cm |
| At Maximum Efficiency Current | 200mA | 120mA | 60mA |
| Output | 0.31W | 0.31W | 0.35W |
| Stall Torque | 13g.cm | 13g.cm | 13g.cm |
| Stall Current | 1.20A | 0.52A | 0.25A |
Gear Motor NFP-GM12-N20VA-EN-13110-XXX Technical Data
| Reduction Ratio | Length | No Load Speed | Rated Speed | Rated Torque | Max.Momentary Tolerance Torque |
|---|---|---|---|---|---|
| 10 | 9.0mm | 450rpm | 1,200rpm | 0.015kg.cm | 0.08kg.cm |
| 30 | 9.0mm | 470rpm | 400rpm | 0.05kg.cm | 0.23kg.cm |
| 50 | 9.0mm | 285rpm | 240rpm | 0.07kg.cm | 0.4kg.cm |
| 100 | 9.0mm | 145rpm | 120rpm | 0.15kg.cm | 0.8kg.cm |
| 150 | 9.0mm | 96rpm | 80rpm | 0.22kg.cm | 1.1kg.cm |
| 210 | 9.0mm | 69rpm | 57rpm | 0.31kg.cm | 1.5kg.cm |
| 250 | 9.0mm | 58rpm | 48rpm | 0.37kg.cm | 1.6kg.cm |
| 298 | 9.0mm | 50rpm | 40rpm | 0.45kg.cm | 1.9kg.cm |
| 380 | 9.0mm | 38rpm | 31rpm | 0.50kg.cm | 2.5kg.cm |
| 1,000 | 12mm | 14.5rpm | 12rpm | 1.00kg.cm | 3.0kg.cm |
Gear Motor NFP-GM12-N20VA-EN-09220-XXX Technical Data
| Reduction Ratio | Length | No Load Speed | Rated Speed | Rated Torque | Max.Momentary Tolerance Torque |
|---|---|---|---|---|---|
| 10 | 9mm | 1,450rpm | 1,200rpm | 0.015kg.cm | 0.08kg.cm |
| 30 | 9mm | 470rpm | 400rpm | 0.05kg.cm | 0.23kg.cm |
| 50 | 9mm | 285rpm | 240rpm | 0.07kg.cm | 0.4kg.cm |
| 100 | 9mm | 145rpm | 120rpm | 0.15kg.cm | 0.8kg.cm |
| 150 | 9mm | 96rpm | 80rpm | 0.22kg.cm | 1.1kg.cm |
| 210 | 9mm | 69rpm | 57rpm | 0.31kg.cm | 1.5kg.cm |
| 250 | 9mm | 58rpm | 48rpm | 0.37kg.cm | 1.6kg.cm |
| 298 | 9mm | 50rpm | 40rpm | 0.45kg.cm | 1.9kg.cm |
| 380 | 9mm | 38rpm | 31rpm | 0.50kg.cm | 2.5kg.cm |
| 1,000 | 12mm | 14.5rpm | 12rpm | 1.00kg.cm | 3.0kg.cm |
Gear Motor NFP-GM12-N20VA-EN-05430-XXX Technical Data
| Reduction Ratio | Length | No Load Speed | Rated Speed | Rated Torque | Max.Momentary Tolerance Torque |
|---|---|---|---|---|---|
| 10 | 9mm | 1,550rpm | 1,100rpm | 0.02kg.cm | 0.1kg.cm |
| 30 | 9mm | 530rpm | 400rpm | 0.05kg.cm | 0.2kg.cm |
| 50 | 9mm | 310rpm | 250rpm | 0.08kg.cm | 0.4kg.cm |
| 100 | 9mm | 160rpm | 125rpm | 0.18kg.cm | 0.8kg.cm |
| 150 | 9mm | 110rpm | 80rpm | 0.27kg.cm | 1.1kg.cm |
| 210 | 9mm | 78rpm | 60rpm | 0.37kg.cm | 1.5kg.cm |
| 250 | 9mm | 60rpm | 50rpm | 0.45kg.cm | 1.6kg.cm |
| 298 | 9mm | 55rpm | 42rpm | 0.50kg.cm | 1.9kg.cm |
| 380 | 9mm | 43rpm | 33rpm | 0.50kg.cm | 2.5kg.cm |
| 1,000 | 12mm | 16rpm | 13rpm | 1.00kg.cm | 3.0kg.cm |
12mm Diameter Small Geared DC Motor Outline Drawing
What is difference between N20 and N30 gear motor?
N20 and N30 gear motors differ mainly in size and power. N20 motor is smaller and suitable for compact applications, while the N30 motor, offers more power and higher torque. The N30 is ideal for tasks needing extra strength, unlike the space-efficient N20. Both operate on similar voltages but the N30 has a higher current draw due to its larger size.
Are you looking for a motor + gearbox (engine+transmission)? Here you can find a suitable solution.
Keywords:
micro dc gear motor, motor with metal gearbox, small dc gear motor, reduction gear motor, speed reduction motor, robot gear motors, small geared motor, n20 gearbox motor, n20 motor
Development Samples:
Sampling quantities for stocked models are available for ordering directly from us online.
Engineering & Manufacturing:
Please contact one of our Sales Engineers for a quotation for production and consultation for customization and integration services.
Payment Method:
Payment methods : Paypal or T/T
Shipping Method:
1.Delivery: DHL door to door 5-7days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
5.In order to ensure you receive your order tax free upon import, we will declare it with a lower value, pls be noted ,thanks!
FAQ – Frequently Asked Questions
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
