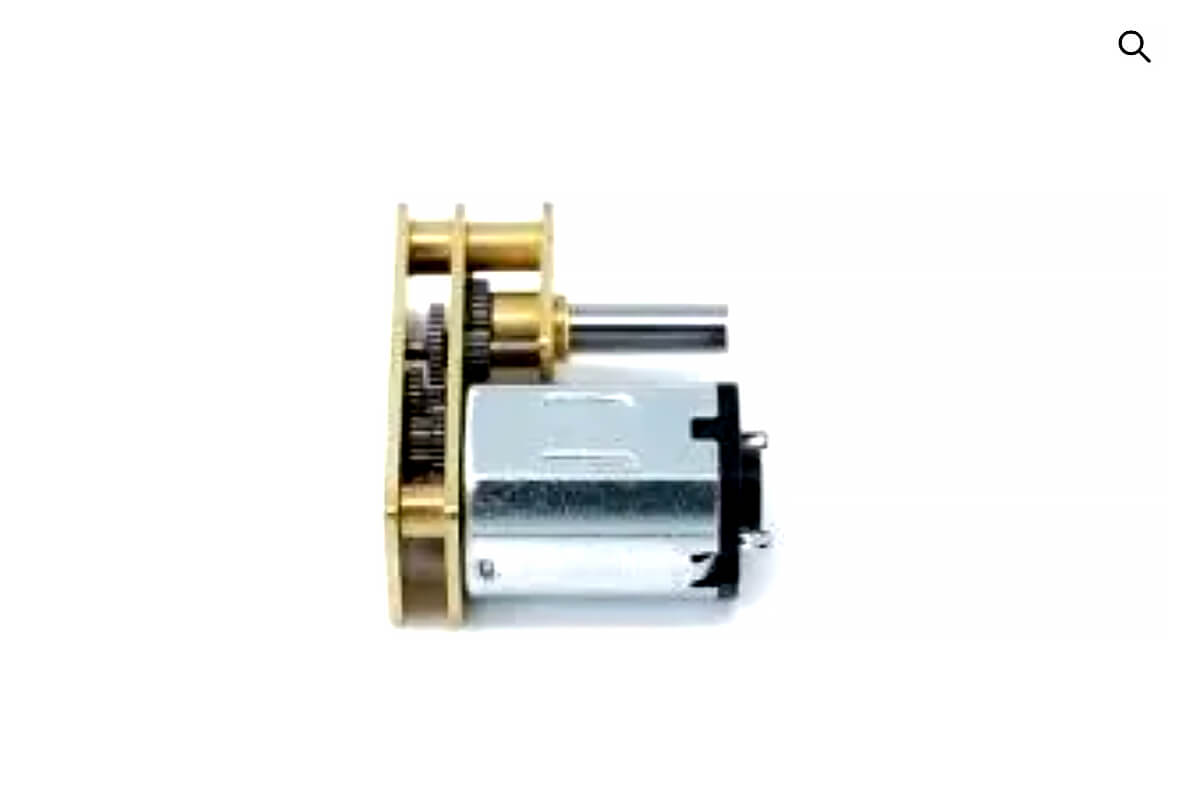

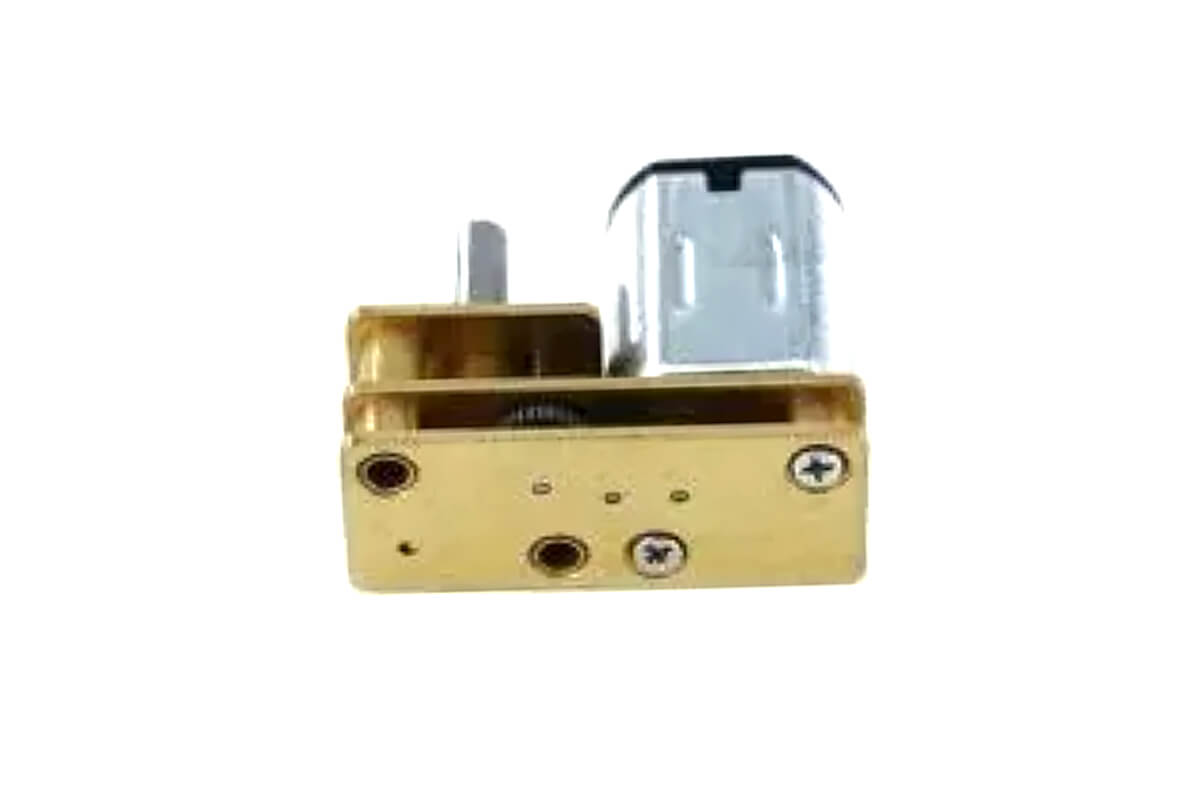

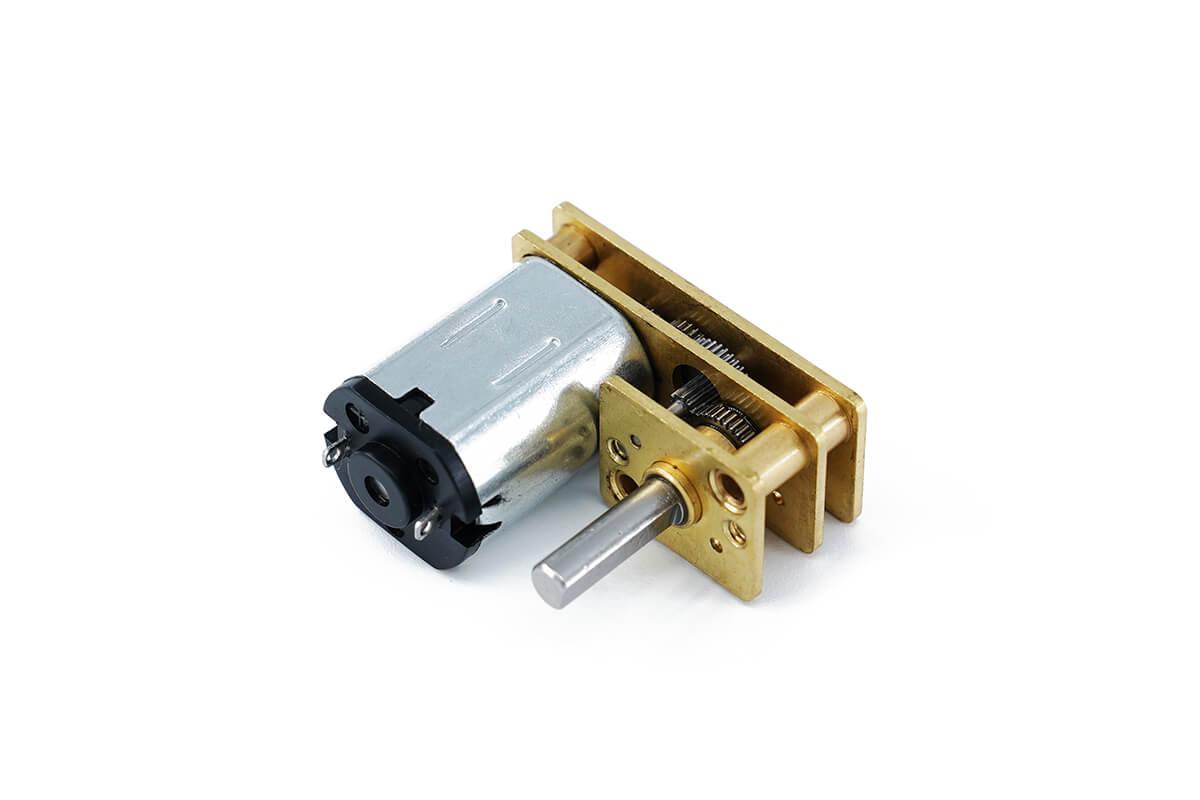

12mm 2.4V 5V 12V N20 Gearbox Motor U-type Speed Reducer Model NFP-GM1024-N20VA
$15.00
Unleash the potential of your applications with our 12mm 2.4V 5V 12V N20 Gearbox Motor U-type Speed Reducer. Order today for efficiency!
Notice: this motor model need to make new ones that would take extra 2-3 weeks.
Low Noise Gear Motor Speed Reducter Outline Drawing
What is dc geared motor?
DC geared motor is an assembly that combines a DC motor with a gearbox to achieve high torque at a reduced speed. The gear ratio, which is the ratio between the motor’s input speed and the gearbox’s output speed, can be customized. This allows for a wide range of torques and speeds, widely used in various applications, including robotics, hobbyist projects, industrial equipment, and automotive applications.
Single Motor Technical Data
| Motor Model | NFP-GM1024-N20VA-13110 | NFP-GM1024-N20VA-09220 | NFP-GM1024-N20VA-05430 |
|---|---|---|---|
| Voltage | 2.4V DC | 5.0V DC | 12.0V DC |
| No Load Speed | 14,800rpm | 14,800rpm | 16,000rpm |
| No Load Current | 60mA | 30mA | 15mA |
| At Max Efficiency Speed | 12,000rpm | 12,000rpm | 12,500rpm |
| At Max Efficiency Torque | 2.5g.cm | 2.5g.cm | 3.0g.cm |
| At Max Efficiency Current | 200mA | 120mA | 60mA |
| Output Power | 0.31W | 0.31W | 0.35W |
| Stall Torque | 13g.cm | 13g.cm | 13g.cm |
| Stall Current | 1.20A | 0.52A | 0.25A |
Motor with Gearbox NFP-GM1024-N20VA-13110 Technical Data
| Ratio | Gearbox Length | No Load Speed | Rated Speed | Rated Torque | Instant Torque |
|---|---|---|---|---|---|
| 50:1 | 9.0mm | 296rpm | 240rpm | 0.08kg.cm | 0.39kg.cm |
| 110:1 | 9.0mm | 135rpm | 109rpm | 0.17kg.cm | 0.86kg.cm |
| 168:1 | 9.0mm | 88rpm | 71rpm | 0.25kg.cm | 1.31kg.cm |
| 210:1 | 9.0mm | 70rpm | 57rpm | 0.32kg.cm | 1.64kg.cm |
| 250:1 | 9.0mm | 59rpm | 48rpm | 0.38kg.cm | 1.95kg.cm |
| 293:1 | 9.0mm | 51rpm | 41rpm | 0.44kg.cm | 2.29kg.cm |
| 350:1 | 9.0mm | 42rpm | 34rpm | 0.53kg.cm | 2.73kg.cm |
| 380:1 | 9.0mm | 39rpm | 32rpm | 0.57kg.cm | 2.96kg.cm |
| 500:1 | 9.0mm | 30rpm | 24rpm | 0.75kg.cm | 3.90kg.cm |
| 1,000:1 | 9.0mm | 15rpm | 12rpm | 1.50kg.cm | 7.80kg.cm |
Motor with Gearbox NFP-GM1024-N20VA-09220 Technical Data
| Ratio | Gearbox Length | No Load Speed | Rated Speed | Rated Torque | Instant Torque |
|---|---|---|---|---|---|
| 50:1 | 9.0mm | 296rpm | 240rpm | 0.08kg.cm | 0.39kg.cm |
| 110:1 | 9.0mm | 135rpm | 109rpm | 0.17kg.cm | 0.86kg.cm |
| 168:1 | 9.0mm | 88rpm | 71rpm | 0.25kg.cm | 1.31kg.cm |
| 210:1 | 9.0mm | 70rpm | 57rpm | 0.32kg.cm | 1.64kg.cm |
| 250:1 | 9.0mm | 59rpm | 48rpm | 0.38kg.cm | 1.95kg.cm |
| 293:1 | 9.0mm | 51rpm | 41rpm | 0.44kg.cm | 2.29kg.cm |
| 350:1 | 9.0mm | 42rpm | 34rpm | 0.53kg.cm | 2.73kg.cm |
| 380:1 | 9.0mm | 39rpm | 32rpm | 0.57kg.cm | 2.96kg.cm |
| 500:1 | 9.0mm | 30rpm | 24rpm | 0.75kg.cm | 3.90kg.cm |
| 1,000:1 | 9.0mm | 15rpm | 12rpm | 1.50kg.cm | 7.80kg.cm |
Motor with Gearbox NFP-GM1024-N20VA-05430 Technical Data
| Ratio | Gearbox Length | No Load Speed | Rated Speed | Rated Torque | Instant Torque |
|---|---|---|---|---|---|
| 50:1 | 9.0mm | 320rpm | 250rpm | 0.09kg.cm | 0.39kg.cm |
| 110:1 | 9.0mm | 145rpm | 114rpm | 0.20kg.cm | 0.86kg.cm |
| 168:1 | 9.0mm | 95rpm | 74rpm | 0.30kg.cm | 1.31kg.cm |
| 210:1 | 9.0mm | 76rpm | 60rpm | 0.38kg.cm | 1.64kg.cm |
| 250:1 | 9.0mm | 64rpm | 50rpm | 0.45kg.cm | 1.95kg.cm |
| 293:1 | 9.0mm | 55rpm | 43rpm | 0.53kg.cm | 2.29kg.cm |
| 350:1 | 9.0mm | 46rpm | 36rpm | 0.63kg.cm | 2.73kg.cm |
| 380:1 | 9.0mm | 42rpm | 33rpm | 0.68kg.cm | 2.96kg.cm |
| 500:1 | 9.0mm | 32rpm | 25rpm | 0.90kg.cm | 3.90kg.cm |
| 1,000:1 | 9.0mm | 16rpm | 13rpm | 1.80kg.cm | 7.80kg.cm |
Long Lifetime N20 Gearbox Motor Outline Drawing
Why gearbox is used with motor?
One of the primary reasons for using a gearbox is to increase the torque output of a motor, allowing the machinery to drive heavier loads. Second, reduce the speed outputted by a motor, gearboxes enable precise control and smoother operation in machinery. It can also contribute to reducing operational noise, help in matching the inertia of the motor to the inertia of the driven load, even change direction of rotation.
Used for:
smart selfie stick, smart camera gimbal, smart robot camera corner, robot, etc.
Keywords:
reduction motor gearbox, n20 gearmotors, small dc gear motor, gear motor for robot, 12v gear motor
Sampling quantities for stocked models are available for ordering directly from us online.
Engineering & Manufacturing:
Please contact one of our Sales Engineers for a quotation for production and consultation for customization and integration services.
Payment Method:
Payment methods : Paypal or T/T
Shipping Method:
1.Delivery: DHL door to door 5-7days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
5.In order to ensure you receive your order tax free upon import, we will declare it with a lower value, pls be noted ,thanks!
FAQ – Frequently Asked Questions
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
