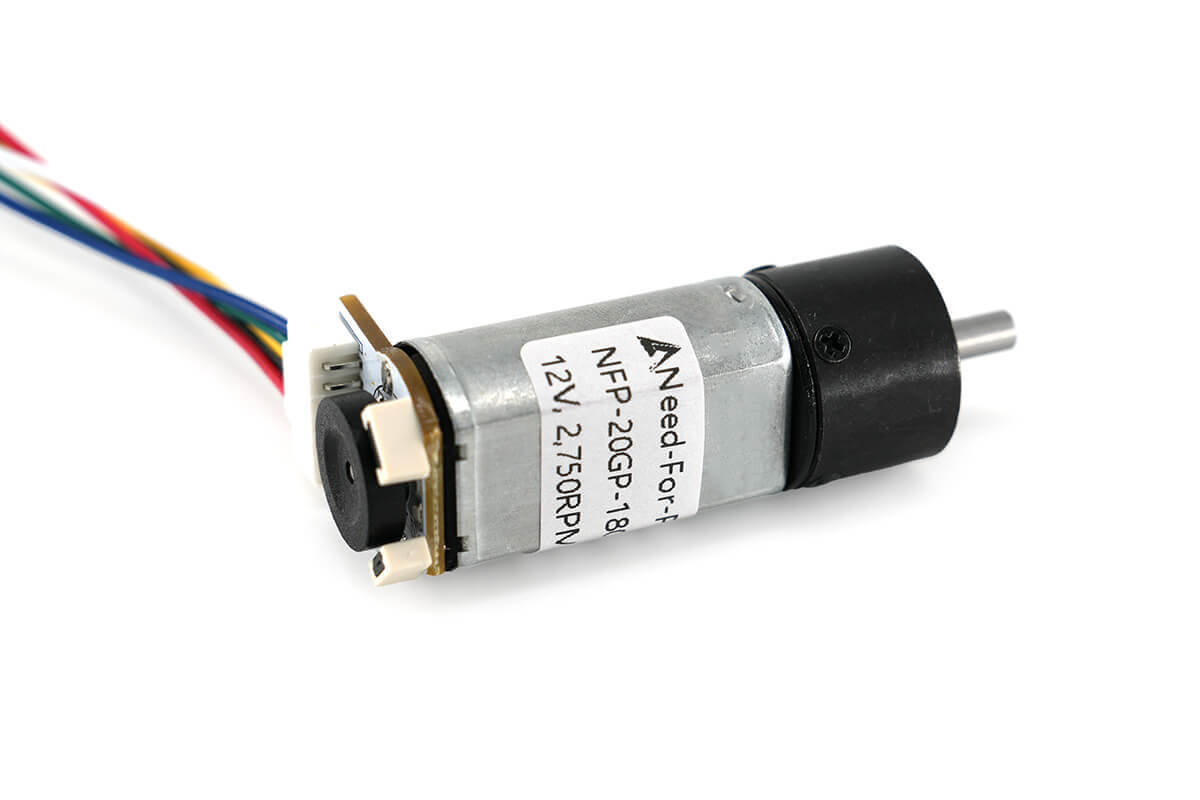

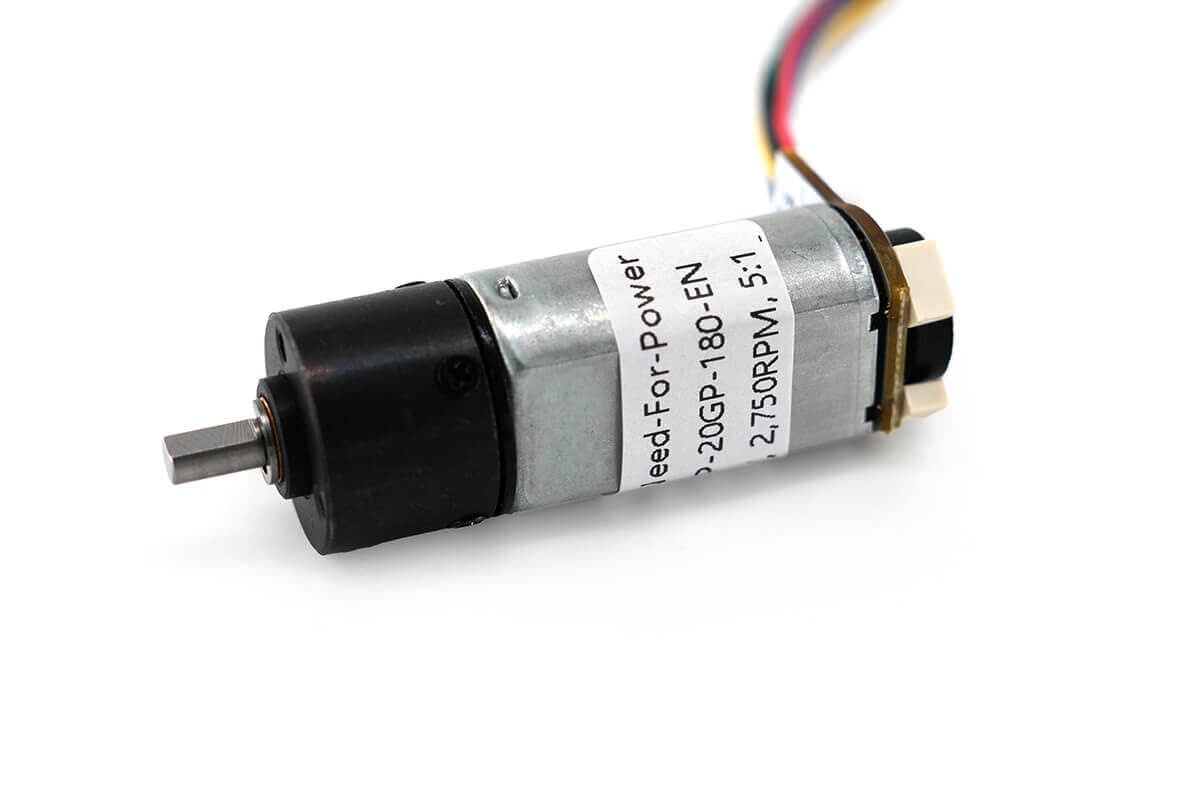

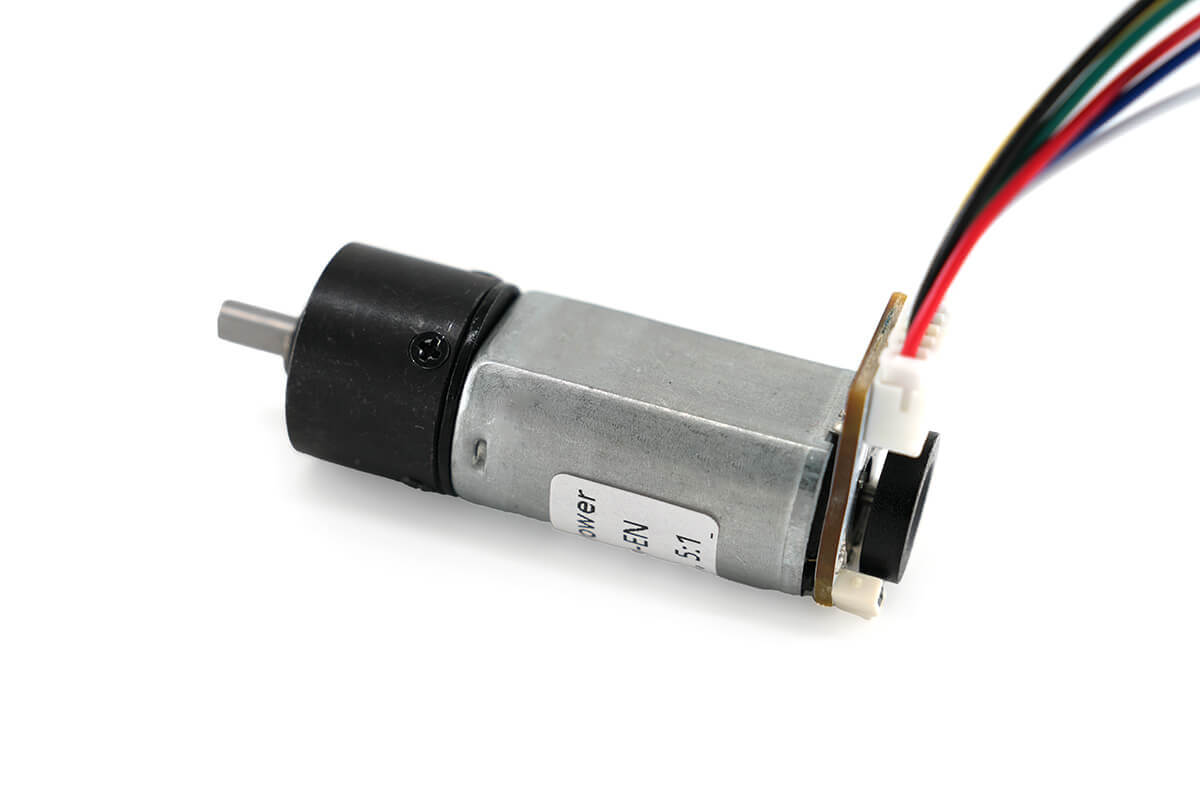

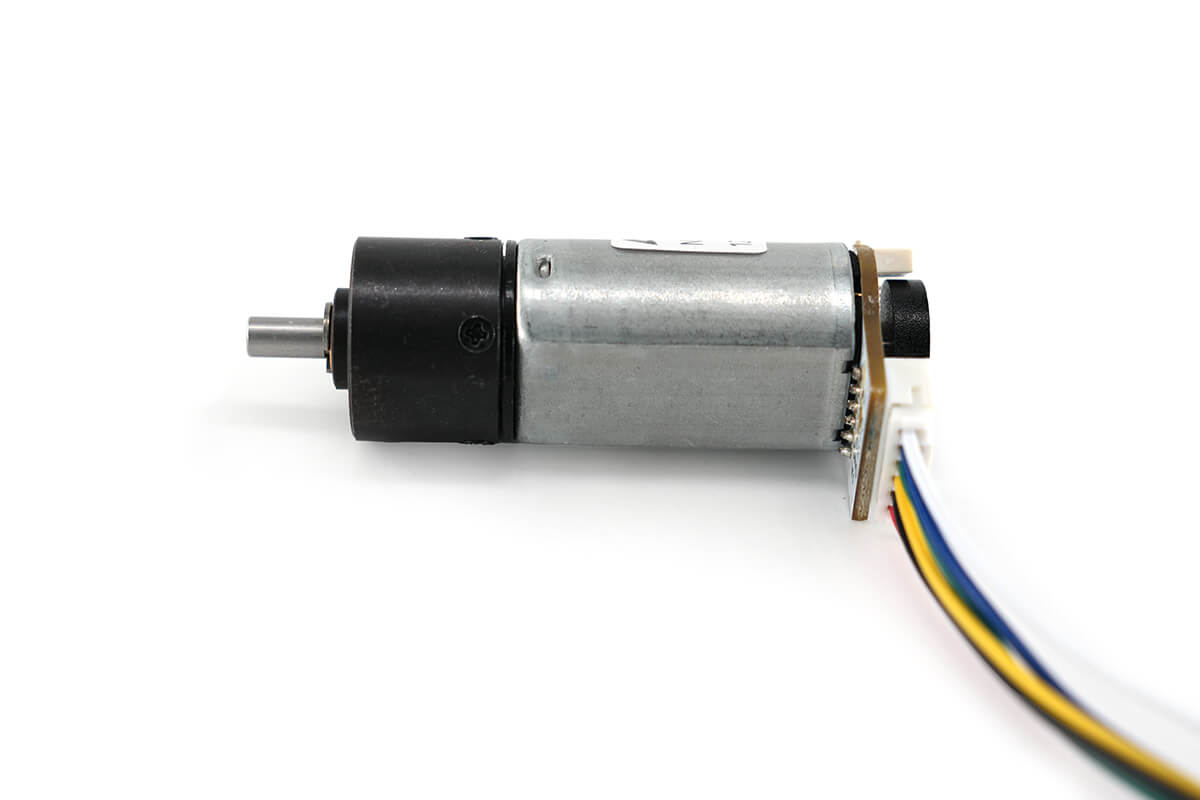

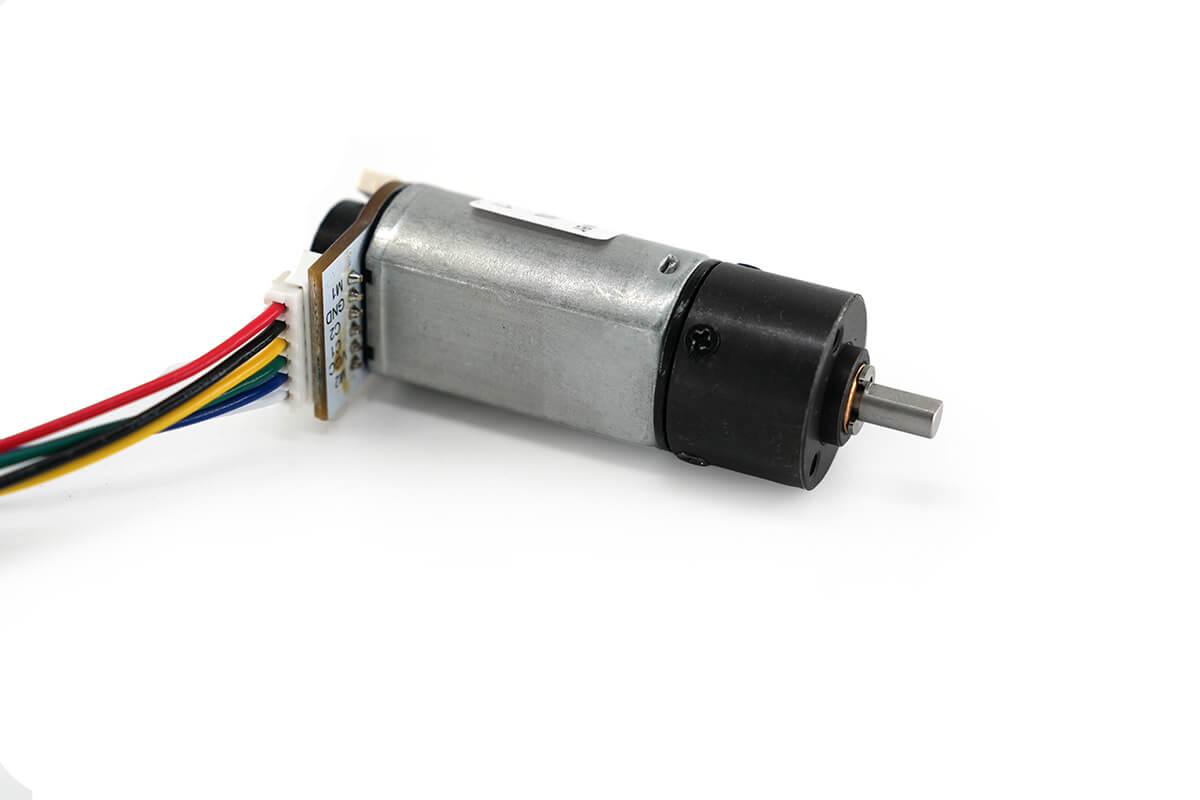

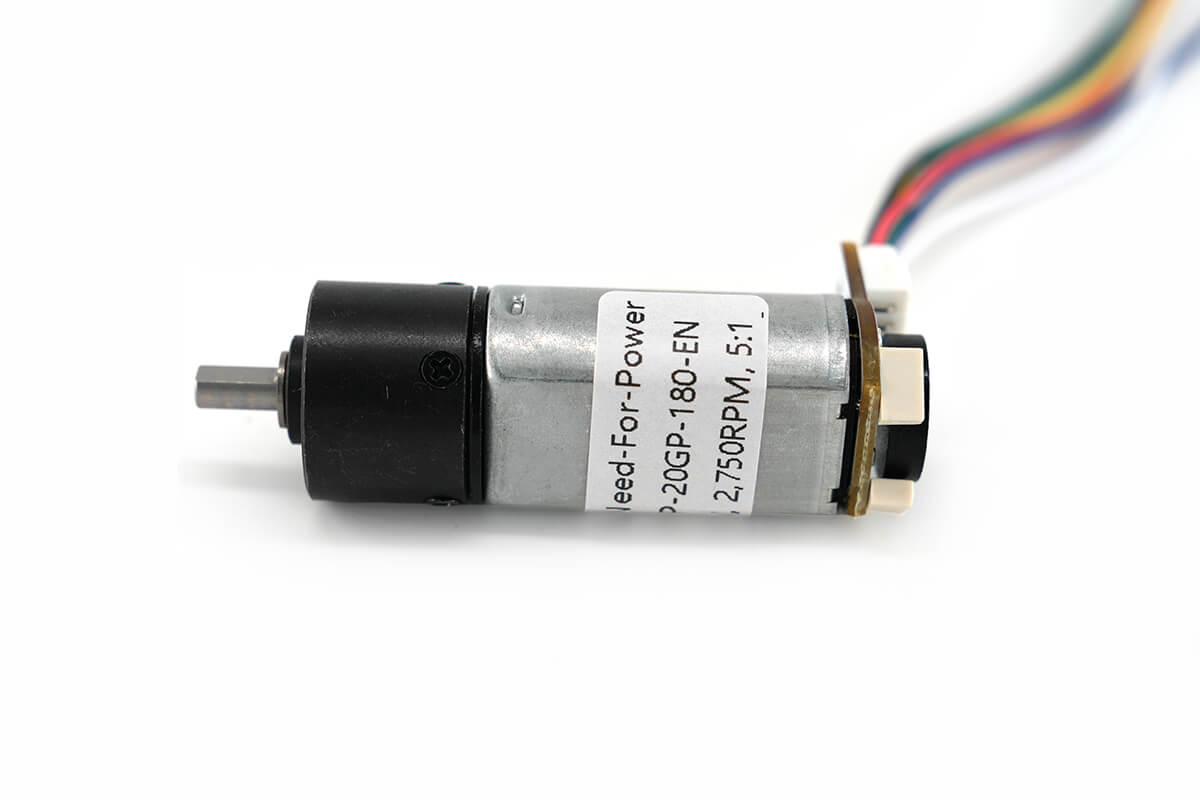

20mm DC Planetary Geared Motor with Encoder Model NFP-20GP-180-EN
$20.00
Experience precision and durability with our 20mm DC Planetary Geared Motor with Encoder. Engineered for long life and reduced noise, order now!
High Performance Planetary Gear Motor Datasheet
- Planetary Gear Rotating Frame: Axle and Frame Integration, Supported by bearings at both ends, ensures a long motor life, higher rigidity and precision.
- Motor Output Shaft: Incorporates oil-impregnated bearings, wear-resistant for durability.
- Input Sun Gear: Small module spur gear structure, full metal gear, reduced load noise.
- Graphite Carbon Brushes: High electrical conductivity; Graphite has low coefficient of friction, which reduces friction loss between the carbon brushes and the commutator, prolonging the life of the planetary gear motors.
| Model | NFP-20GP-180-EN |
|---|---|
| Shaft Diameter | 4mm |
| Shaft Length | 10.5cm |
| Voltage | 6V / 12V DC |
| No-load Speed | 9rpm – 2,750rpm |
| No-load Current | ≤0.23A / ≤0.28A |
| Rotation | CW / CCW |
| Weight | appr. 80g |
Model: NFP-20GP-180-EN, 6V DC
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque | Encoder Signal |
|---|---|---|---|---|---|---|---|---|---|
| 5.4:1 | 17.3mm | ≤0.23A | 1,350rpm | ≤0.45A | 1,140rpm | 0.09kg.cm | ≤1.5A | ≥0.4kg.cm | 59.4 |
| 19:1 | 21.5mm | ≤0.23A | 390rpm | ≤0.45A | 325rpm | 0.3kg.cm | ≤1.5A | ≥1.3kg.cm | 211.03 |
| 29:1 | 21.5mm | ≤0.23A | 250rpm | ≤0.45A | 210rpm | 0.5kg.cm | ≤1.5A | ≥1.7kg.cm | 320.76 |
| 84:1 | 24.7mm | ≤0.23A | 90rpm | ≤0.45A | 73rpm | 1.5kg.cm | ≤1.5A | ≥6kg.cm | 927.22 |
| 128:1 | 24.7mm | ≤0.23A | 58rpm | ≤0.45A | 48rpm | 2.3kg.cm | ≤1.5A | ≥9kg.cm | 1,406.4 |
| 157:1 | 24.7mm | ≤0.23A | 47rpm | ≤0.45A | 39rpm | 2.8kg.cm | ≤1.5A | ≥11kg.cm | 1,732.1 |
| 370:1 | 29.9mm | ≤0.23A | 20rpm | ≤0.45A | 16rpm | 6.5kg.cm | ≤1.5A | ≥15kg.cm | 4,065.49 |
| 560:1 | 29.9mm | ≤0.23A | 13rpm | ≤0.45A | 11rpm | 10kg.cm | ≤1.5A | ≥15kg.cm | 6,166.52 |
| 850:1 | 29.9mm | ≤0.23A | 9rpm | ≤0.45A | 7rpm | 10kg.cm | ≤1.5A | ≥15kg.cm | 9,353.36 |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-20GP-180-EN, 12V DC
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque | Encoder Signal |
|---|---|---|---|---|---|---|---|---|---|
| 5.4:1 | 17.3mm | ≤0.28A | 2,750rpm | ≤0.55A | 2,400rpm | 0.1kg.cm | ≤2.7A | ≥0.7kg.cm | 59.4 |
| 19:1 | 21.5mm | ≤0.28A | 780rpm | ≤0.55A | 680rpm | 0.4kg.cm | ≤2.7A | ≥2kg.cm | 211.03 |
| 29:1 | 21.5mm | ≤0.28A | 515rpm | ≤0.55A | 445rpm | 0.65kg.cm | ≤2.7A | ≥3kg.cm | 320.76 |
| 84:1 | 24.7mm | ≤0.28A | 175rpm | ≤0.55A | 154rpm | 1.8kg.cm | ≤2.7A | ≥8kg.cm | 927.22 |
| 128:1 | 24.7mm | ≤0.28A | 115rpm | ≤0.55A | 101rpm | 2.8kg.cm | ≤2.7A | ≥12kg.cm | 1,406.4 |
| 157:1 | 24.7mm | ≤0.28A | 95rpm | ≤0.55A | 82rpm | 3.5kg.cm | ≤2.7A | ≥15kg.cm | 1,732.1 |
| 370:1 | 29.9mm | ≤0.28A | 40rpm | ≤0.55A | 35rpm | 8kg.cm | ≤2.7A | ≥15kg.cm | 4,065.49 |
| 560:1 | 29.9mm | ≤0.28A | 26rpm | ≤0.55A | 23rpm | 10kg.cm | ≤2.7A | ≥15kg.cm | 6,166.52 |
| 850:1 | 29.9mm | ≤0.28A | 17rpm | ≤0.55A | 15rpm | 10kg.cm | ≤2.7A | ≥15kg.cm | 9,353.36 |
Note: all reduced no-load speeds have a tolerance of ±15%.
High Torque Planetary Gearbox Motor Outline Drawing
- Isolation Gasket near Shaft: Reduces frictional force, helps to lower temperature.
- Gear Ring: Known for its low side clearance, which contributes smooth operation.
- Positioning Ring: Provides fast heat dissipation, long lifespan for motor.
12V DC Motor with Planetary Gearbox and Encoder Wiring Connection
- Graphite Carbon Brush Rear Cover: Equipped with shock-absorbing rubber, ensuring a stable lifespan.
- Pure Copper Wire Winding: Strong conductivity, increasing the motor’s torque.

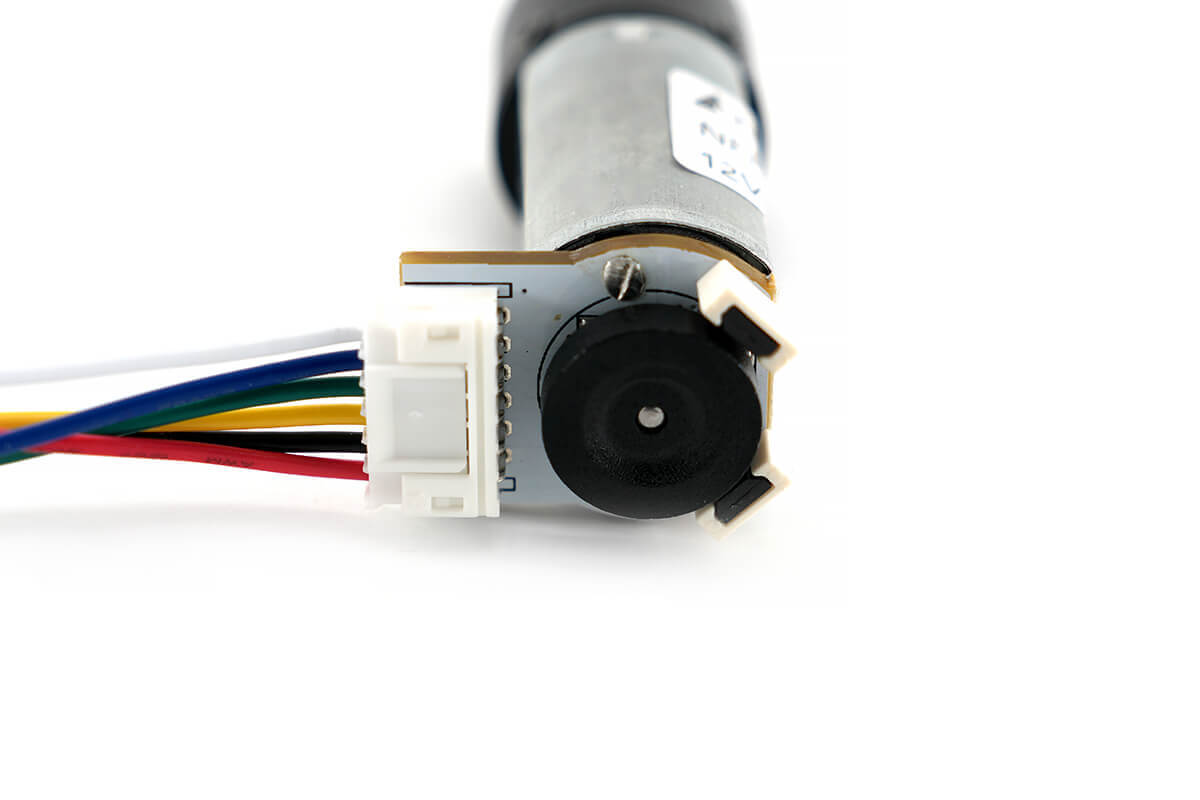

- AB Dual-Phase Hall Encoder: Offers rapid response, low power consumption, and excellent interference resistance (such as to temperature and vibration). 20mm 180 planetary geared motor can provide higher resolution than a single channel, thus more accurately measuring the motor’s position and speed.
- M1 and M2 reverse when the polarity is exchanged.
| Encoder Type | AB Dual-phase Incremental Magnetic Hall Encoder |
|---|---|
| Line Speed | Basic Pulse 11PPR x Gear Reduction Ratio |
| Supply Voltage | 3.3V / 5V DC |
| Basic Function | Built-in pull-up shaping resistor, direct connection to MCU |
| Interface Type | PH2.0-6PIN (standard connection cable) |
| Output Signal Type | Square Wave AB Phase |
| Response Frequency | 100KHz |
| Base Pulse Count | 11 PPR |
| Magnetic Ring Trigger Pole Number | 22 Poles (11 Pairs) |
What specifications should consider when selecting 20mm planetary gear motor?
- Gear Ratio: Determines the balance between speed and torque output.
- Voltage Rating: Ensures compatibility with your power supply.
- No-load Speed: The speed at which the gear motor runs without any load applied.
- Rated Torque: The maximum torque the motor can deliver under normal operating conditions.
- Current Draw: The amount of current the motor consumes, which affects power requirements.
- Shaft Type and Size: Important for mechanical integration with your application.
