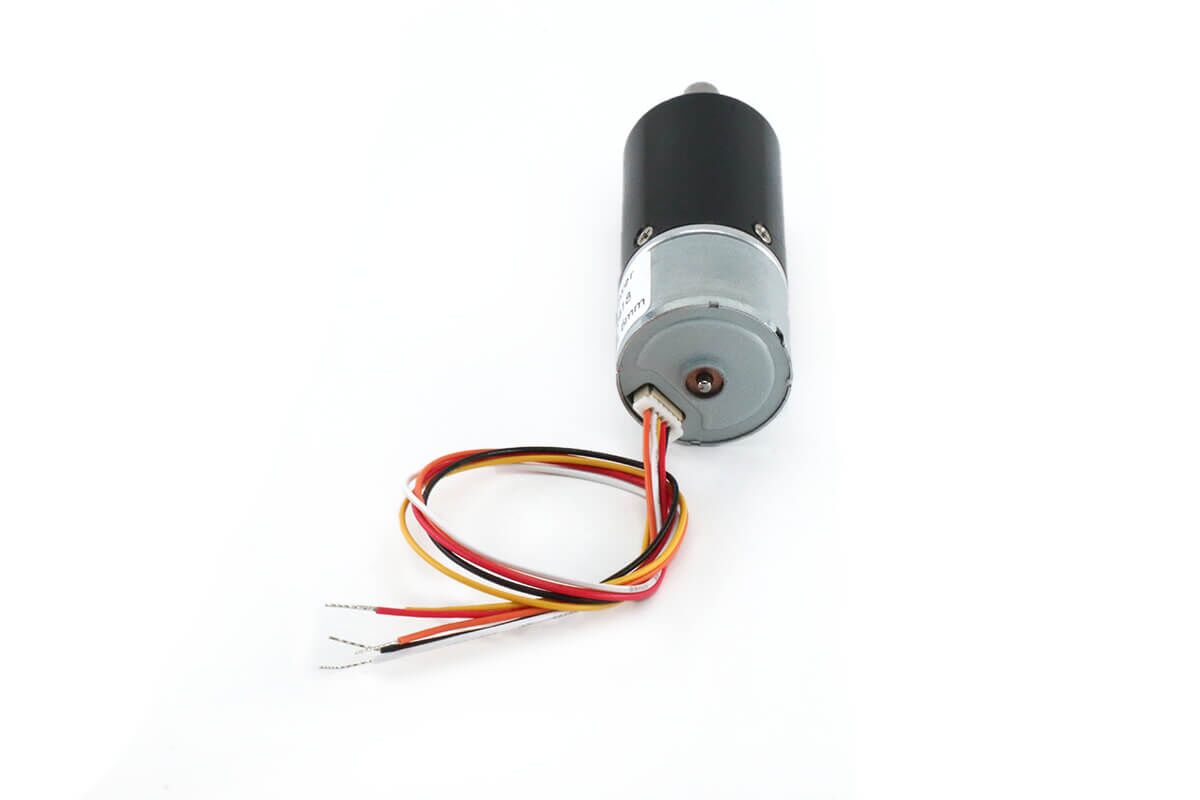

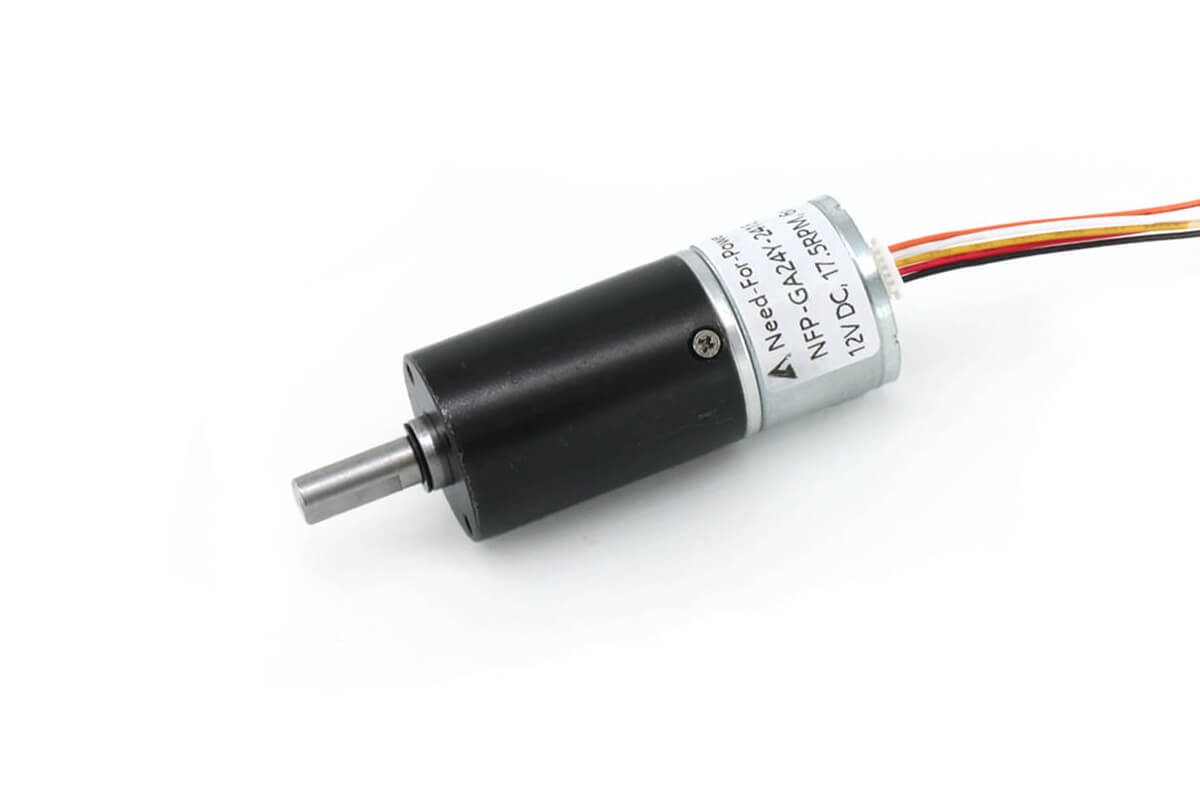

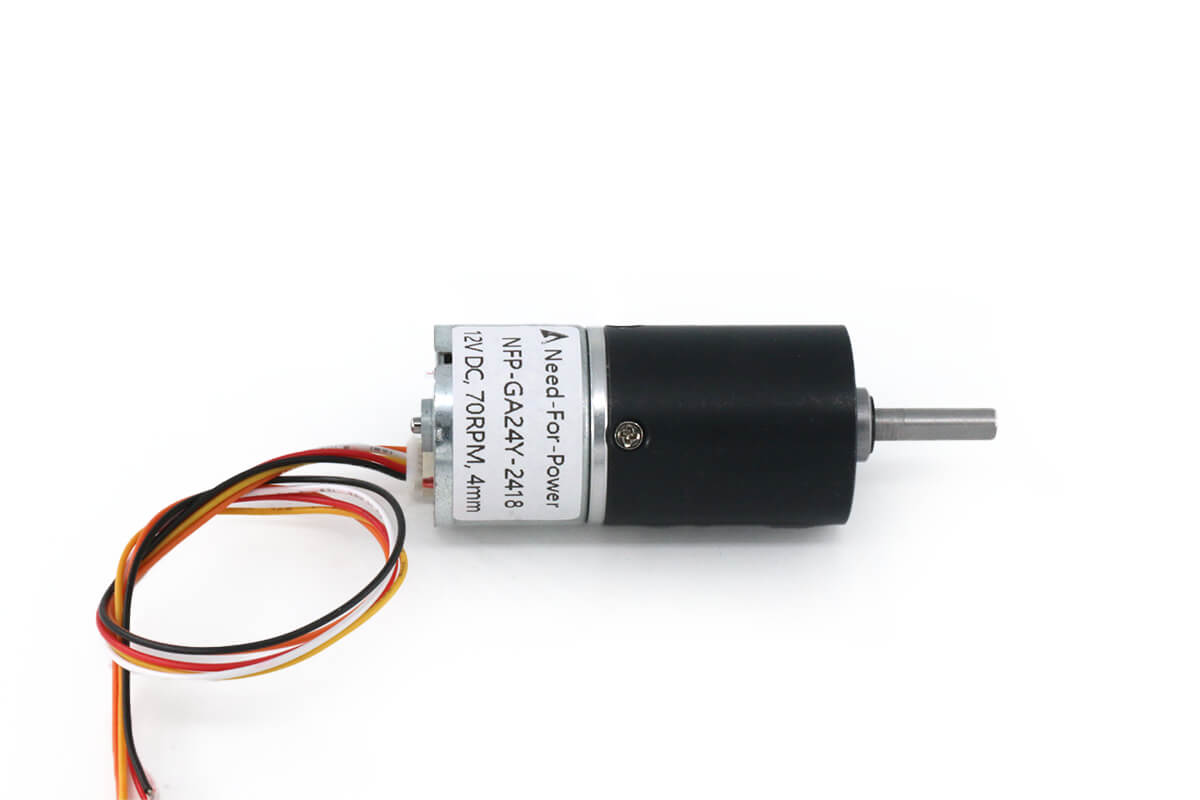

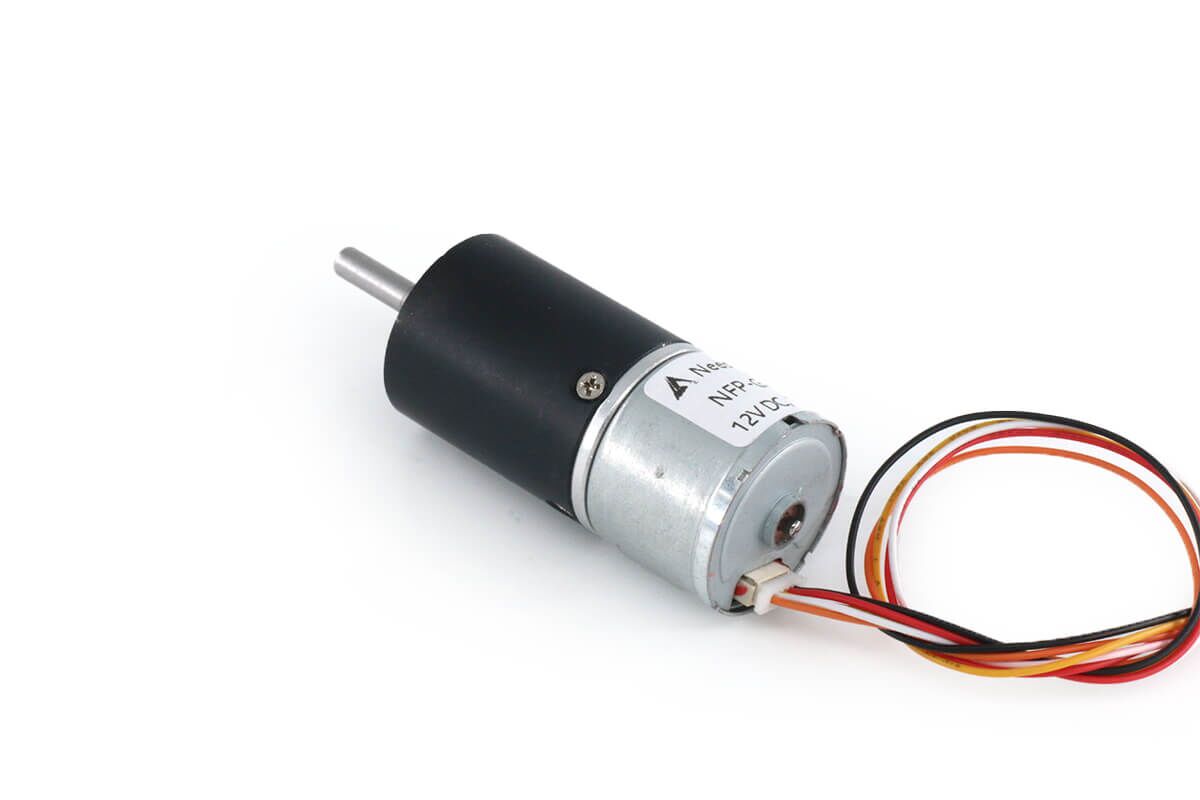

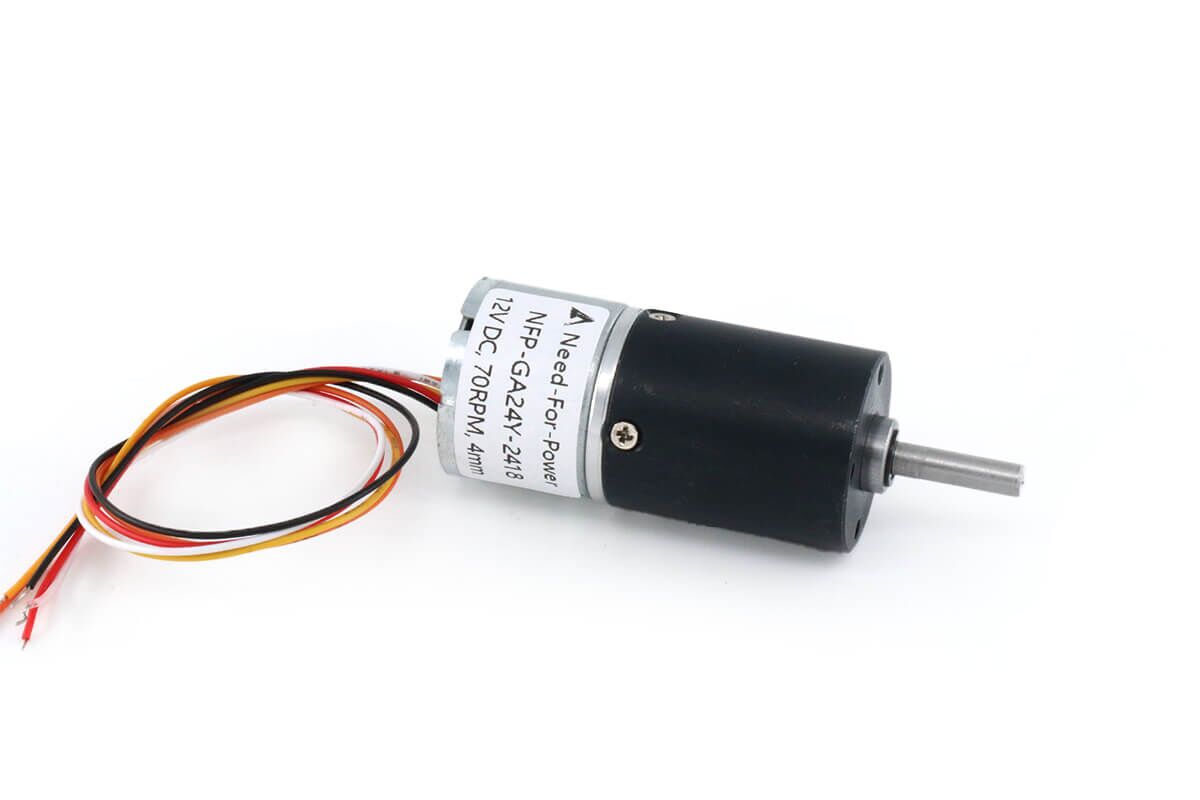

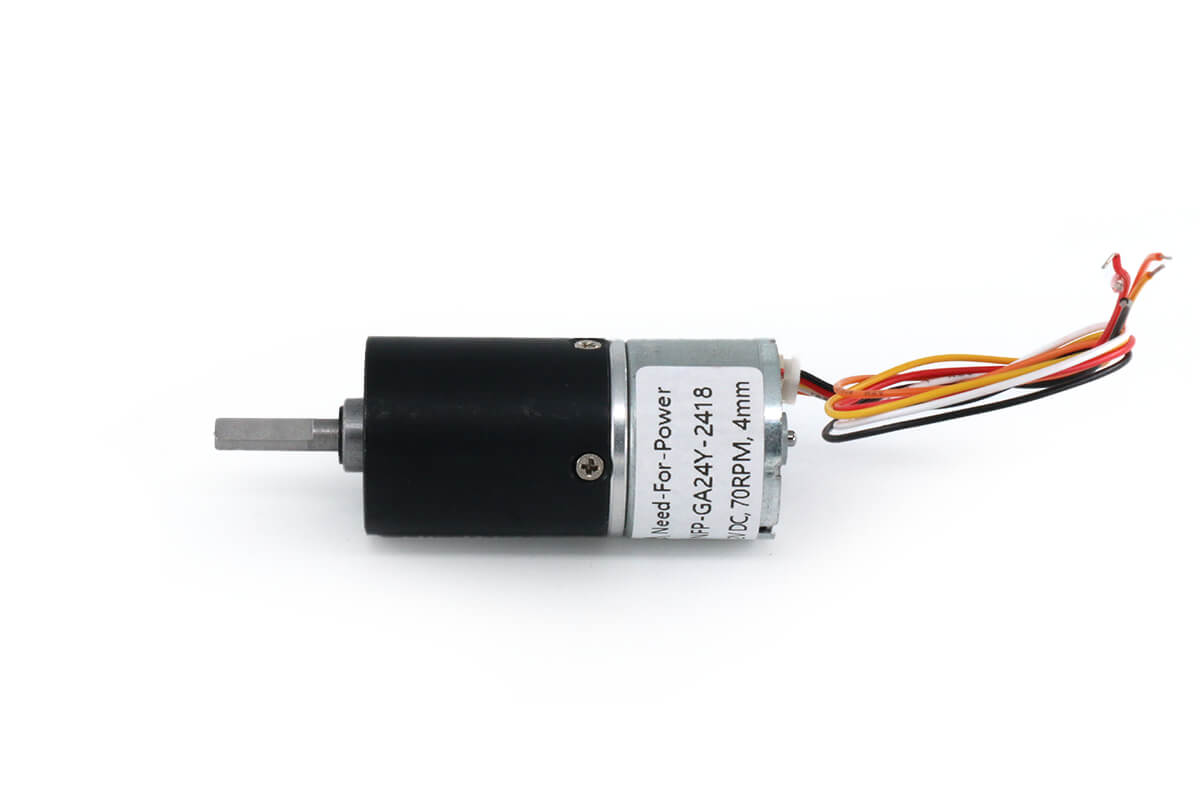

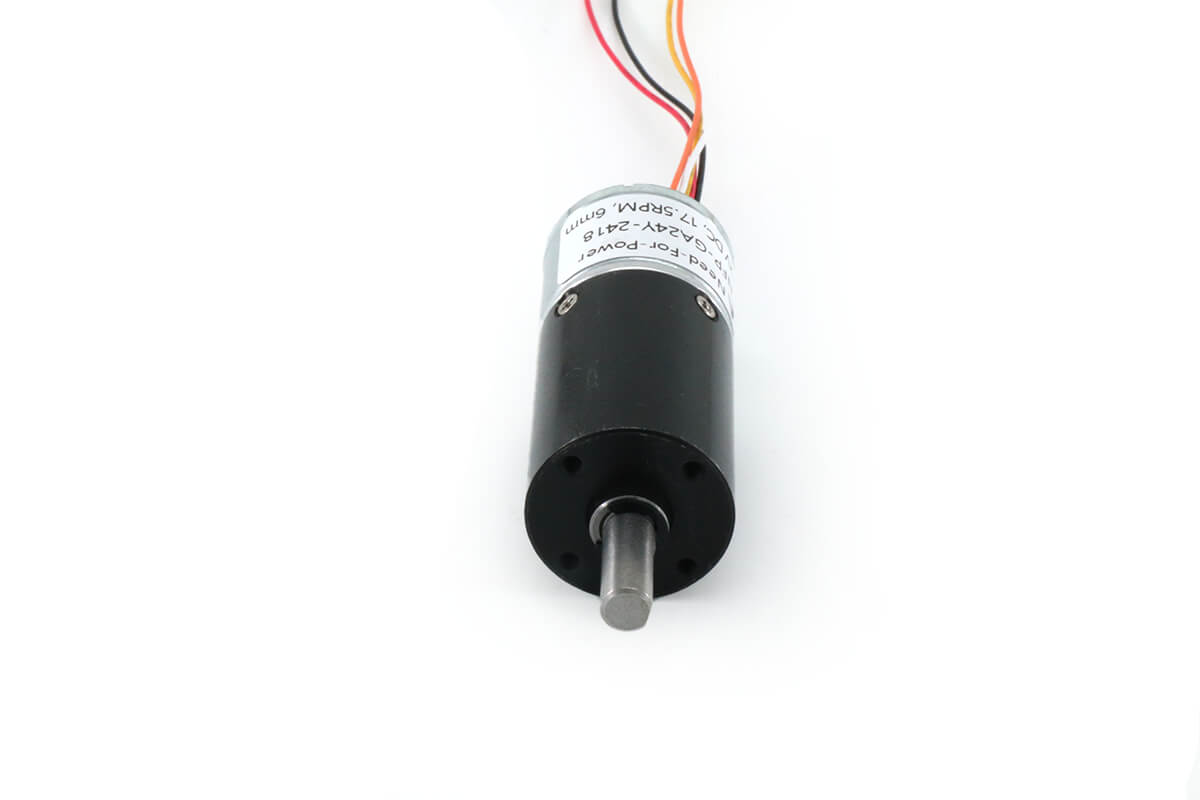

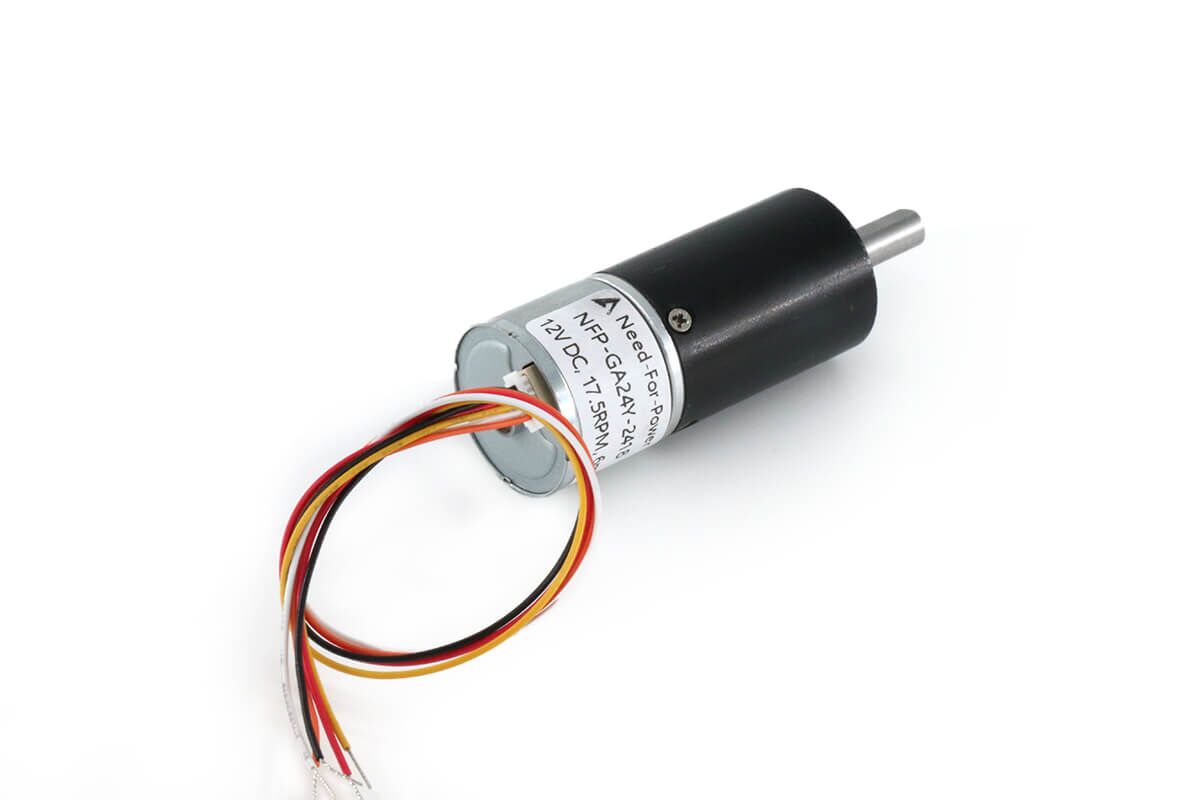

24mm 12V 24V BLDC Planetary Geared Motor Model NFP-GA24Y-2418
$20.00
Unleash high torque with the 24mm 12V 24V BLDC Planetary Geared Motor. Enjoy adjustable speeds to tackle any project effectively! ⚙️
First, this 24mm 12V 24V BLDC Planetary Geared Motor offers high torque and smooth speed control for many light and heavy uses. Therefore, engineers choose this brushless motor when they need a strong drive in a small size.
Long Lifetime Small Brushless Planetary Gearbox Motor Details
In addition, the top-notch sun gear planetary gearbox runs very quiet. Also, it outputs up to 15kg.cm max torque to handle tough loads with ease. For example, 4 sets of planetary gears work together to spread the load and boost the overall drive torque.
| Parameter | Details |
|---|---|
| Model | NFP-GA24Y-2418 |
| Rotation | CW / CCW |
| Rated Voltage | 12V / 24V DC |
| No-load Speed | 9rpm – 2,250rpm |
| No-load Current | 0.06A / 0.1A |
| Max Torque | 15kg.cm |
| Output Power | 2.2W / 4.8W |
| Output Shaft Diameter | 4mm / 6mm |
| Weight | 130g – 150g |
Model: NFP-GA24Y-2418-1245, 12V DC
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 4:1 | 1,125rpm | 0.06A | 950rpm | 0.18A | 0.08kg.cm | 0.3kg.cm | 0.35A |
| 16:1 | 281rpm | 0.06A | 237rpm | 0.18A | 0.3kg.cm | 1kg.cm | 0.35A |
| 25:1 | 180rpm | 0.06A | 152rpm | 0.18A | 0.4kg.cm | 1.5kg.cm | 0.35A |
| 64:1 | 70rpm | 0.06A | 59rpm | 0.18A | 1.2kg.cm | 4kg.cm | 0.35A |
| 88:1 | 51rpm | 0.06A | 43rpm | 0.18A | 1.5kg.cm | 5.5kg.cm | 0.35A |
| 110:1 | 41rpm | 0.06A | 34rpm | 0.18A | 2kg.cm | 7kg.cm | 0.35A |
| 138:1 | 325rpm | 0.06A | 27rpm | 0.18A | 2.5kg.cm | 9kg.cm | 0.35A |
| 256:1 | 17.5rpm | 0.06A | 15rpm | 0.18A | 5kg.cm | 16kg.cm | 0.35A |
| 320:1 | 14rpm | 0.06A | 12rpm | 0.18A | 6kg.cm | 18kg.cm | 0.35A |
| 400:1 | 11rpm | 0.06A | 9.5rpm | 0.18A | 7kg.cm | 22kg.cm | 0.35A |
| 500:1 | 9rpm | 0.06A | 7.5rpm | 0.18A | 9kg.cm | 28kg.cm | 0.35A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-GA24Y-2418-2490, 24V DC
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 4:1 | 2,250rpm | 0.1A | 1,900rpm | 0.2A | 0.15kg.cm | 0.5kg.cm | 0.86A |
| 16:1 | 562rpm | 0.1A | 475rpm | 0.2A | 0.5kg.cm | 1.8kg.cm | 0.86A |
| 25:1 | 360rpm | 0.1A | 304rpm | 0.2A | 0.8kg.cm | 2.5kg.cm | 0.86A |
| 64:1 | 140rpm | 0.1A | 119rpm | 0.2A | 2kg.cm | 7kg.cm | 0.86A |
| 88:1 | 102rpm | 0.1A | 86rpm | 0.2A | 2.5kg.cm | 10kg.cm | 0.86A |
| 110:1 | 82rpm | 0.1A | 69rpm | 0.2A | 3kg.cm | 12kg.cm | 0.86A |
| 138:1 | 65rpm | 0.1A | 55rpm | 0.2A | 4kg.cm | 15kg.cm | 0.86A |
| 256:1 | 35rpm | 0.1A | 30rpm | 0.2A | 8kg.cm | 29kg.cm | 0.86A |
| 320:1 | 28rpm | 0.1A | 24rpm | 0.2A | 10kg.cm | 36kg.cm | 0.86A |
| 400:1 | 22.5rpm | 0.1A | 19rpm | 0.2A | 12kg.cm | 45kg.cm | 0.86A |
| 500:1 | 18rpm | 0.1A | 15rpm | 0.2A | 15kg.cm | 56kg.cm | 0.86A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Reversible High Torque DC Brushless Gear Motor Outline Drawing
Furthermore, this type 2418 24mm 12V 24V BLDC Planetary Geared Motor includes an in-built Hall sensor for good control and safety. As a result, you can change speed with Pulse Width Modulation (PWM) and switch direction easily. It also protects against high current at 0.8A, high voltage up to 30V, and high heat at 80℃.
Micro Brushless Planetary Gear Motor Wiring Connections
- Black wire: Negative power supply pole (-). Do not wire wrongly.
- Red wire: Positive power supply pole (+). Do not wire wrongly.
- Yellow wire: FFG speed signal output. External devices use this to check speed (outputs 18 pulses per turn).
- White wire: PWM speed control. Connect to the negative pole for max speed.
- Orange wire: Direction control. Unconnected terminal runs CCW; connecting to low level (≤0.6V) runs CW.
Note: Do not swap the positive and negative power poles.
