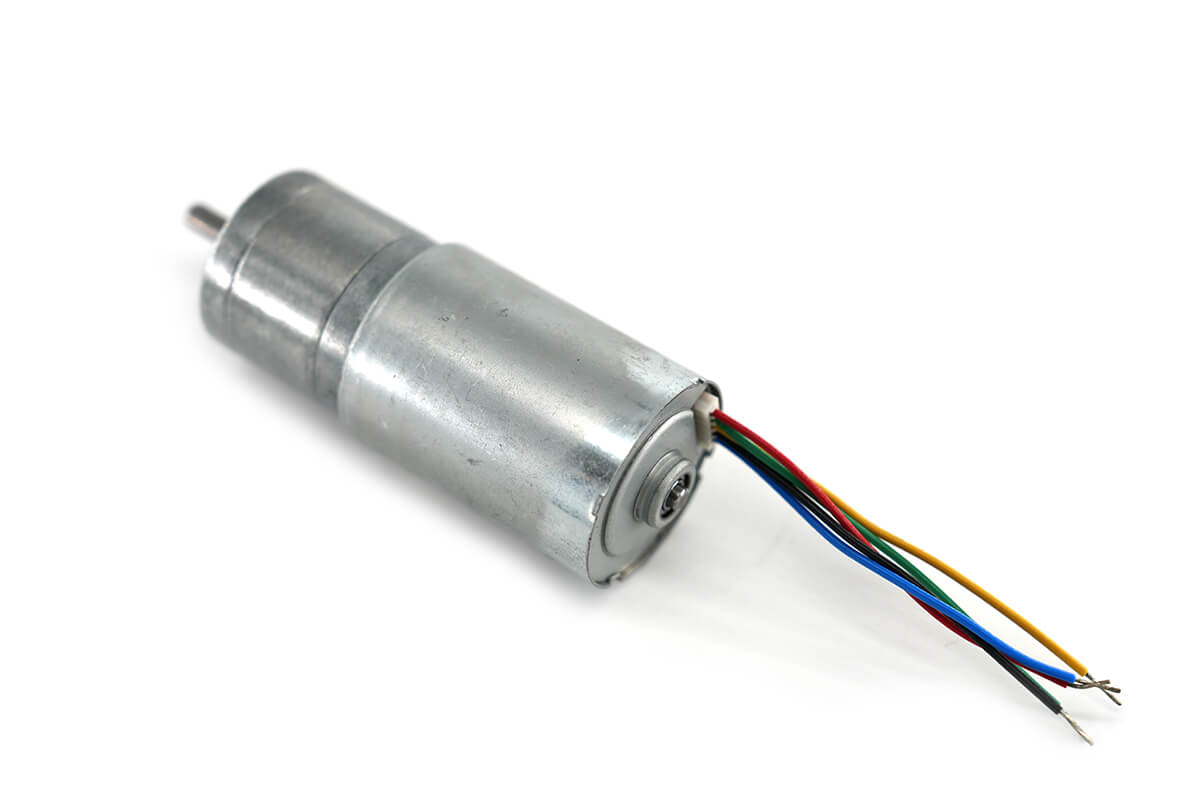

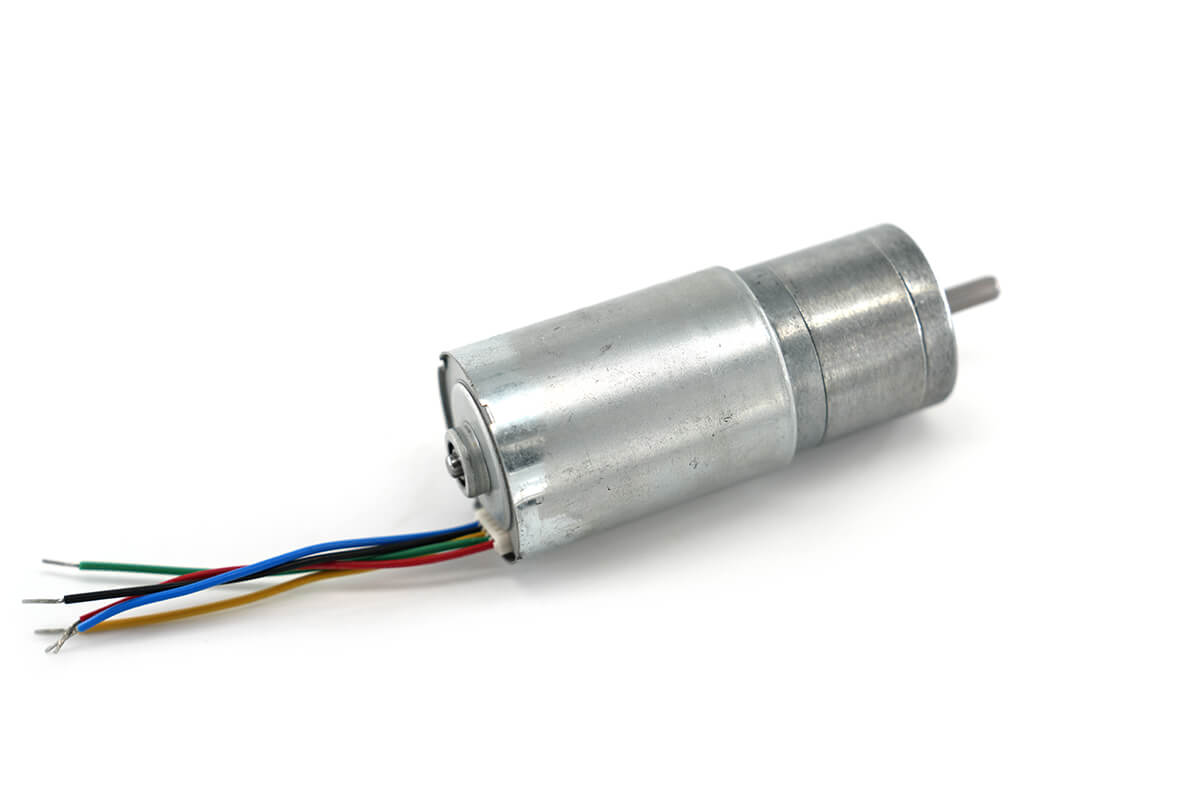

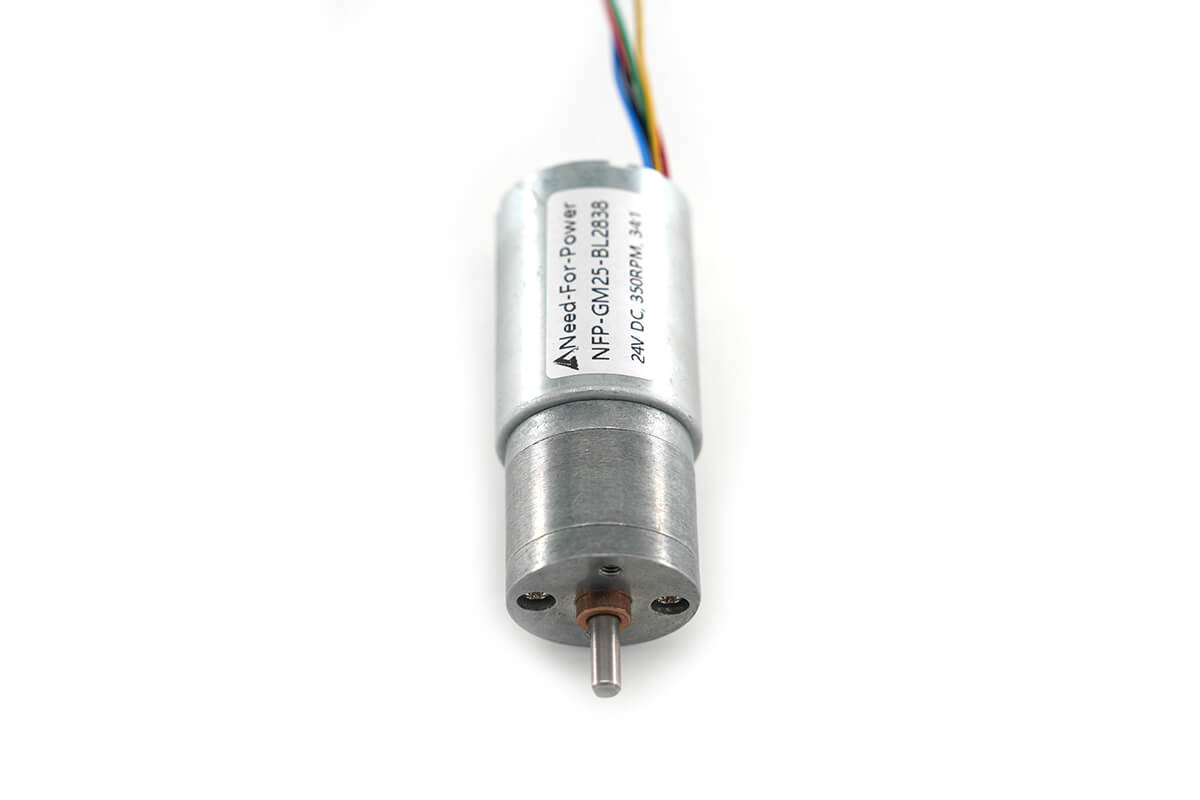

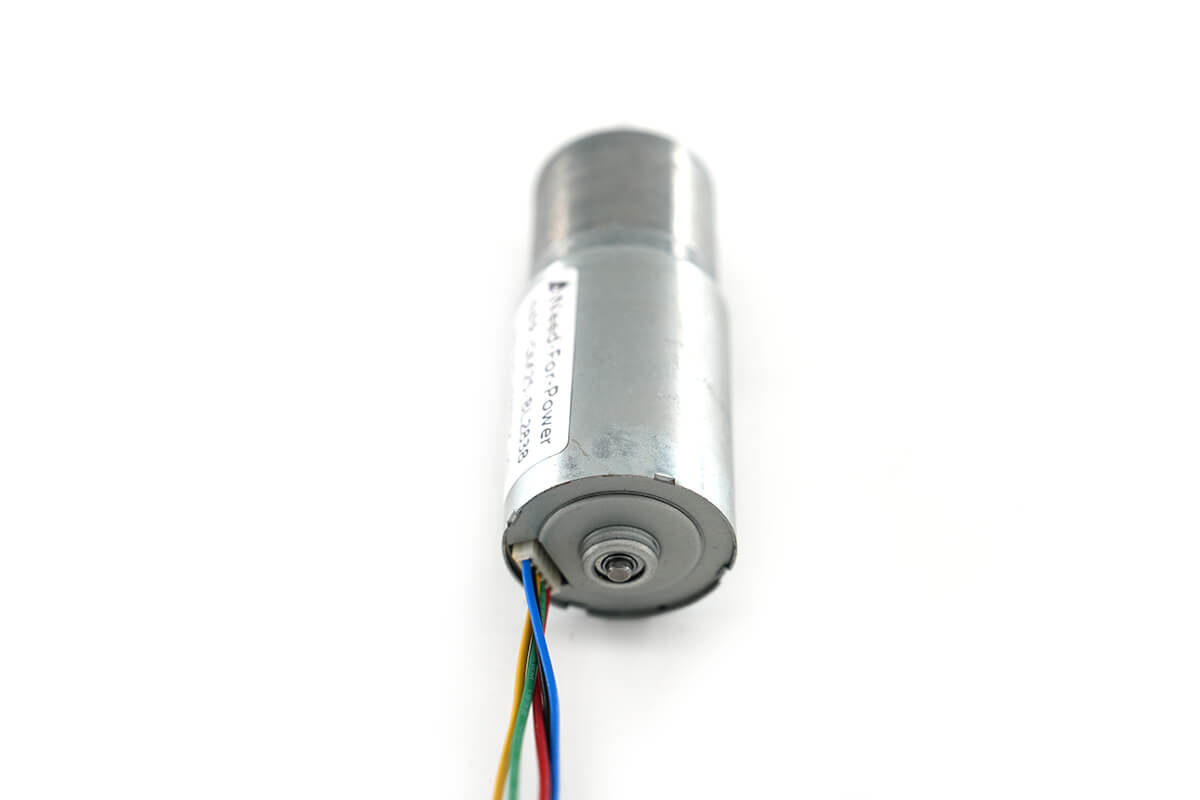

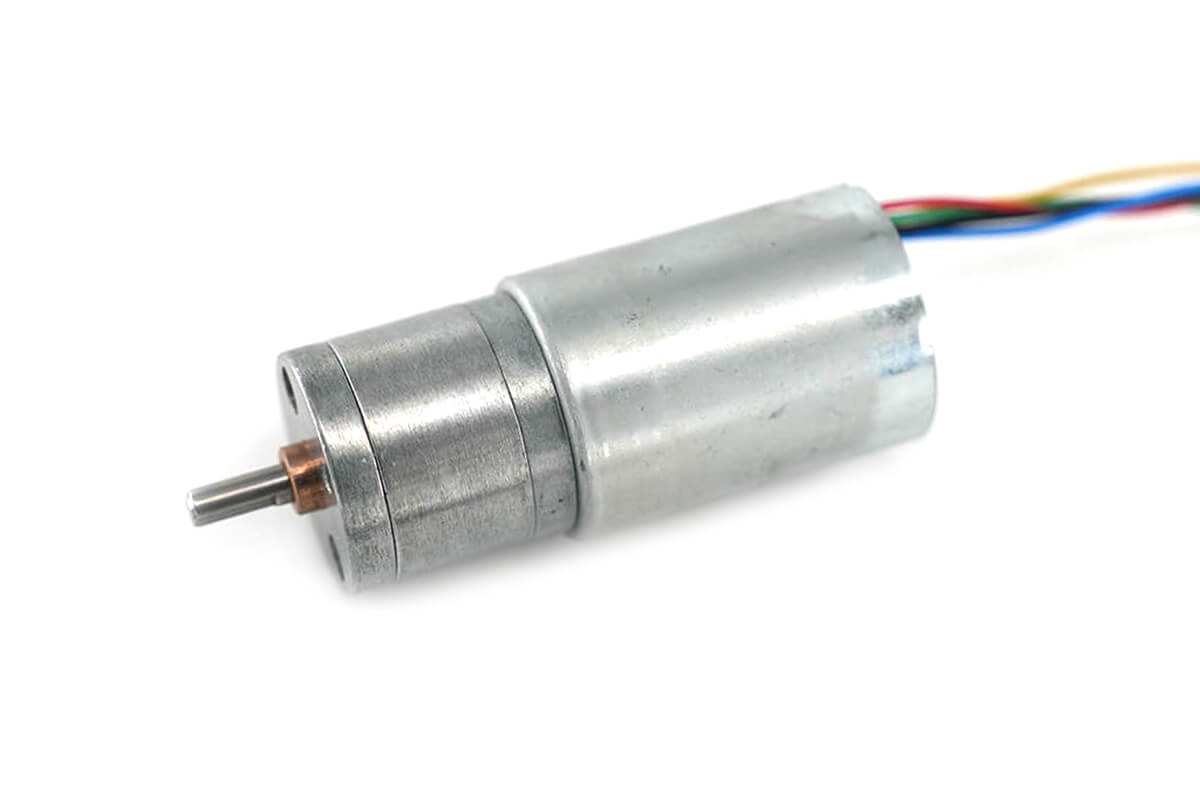

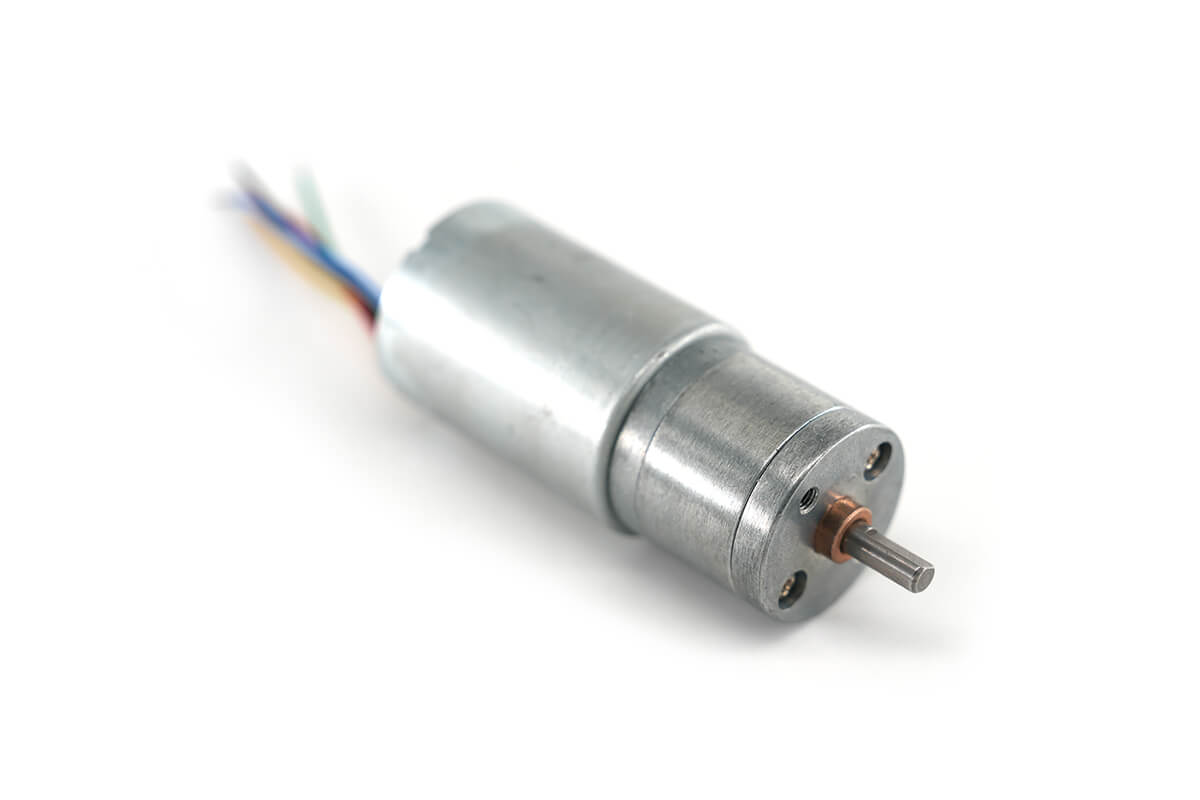

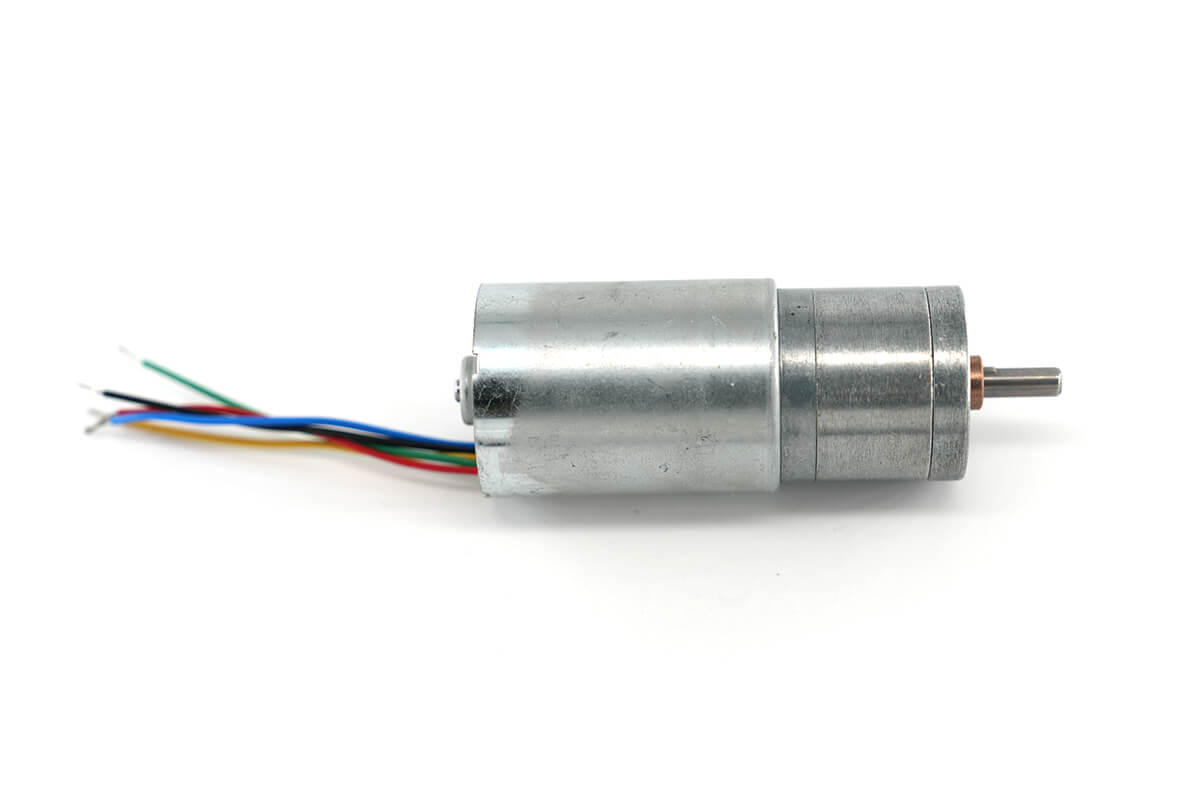

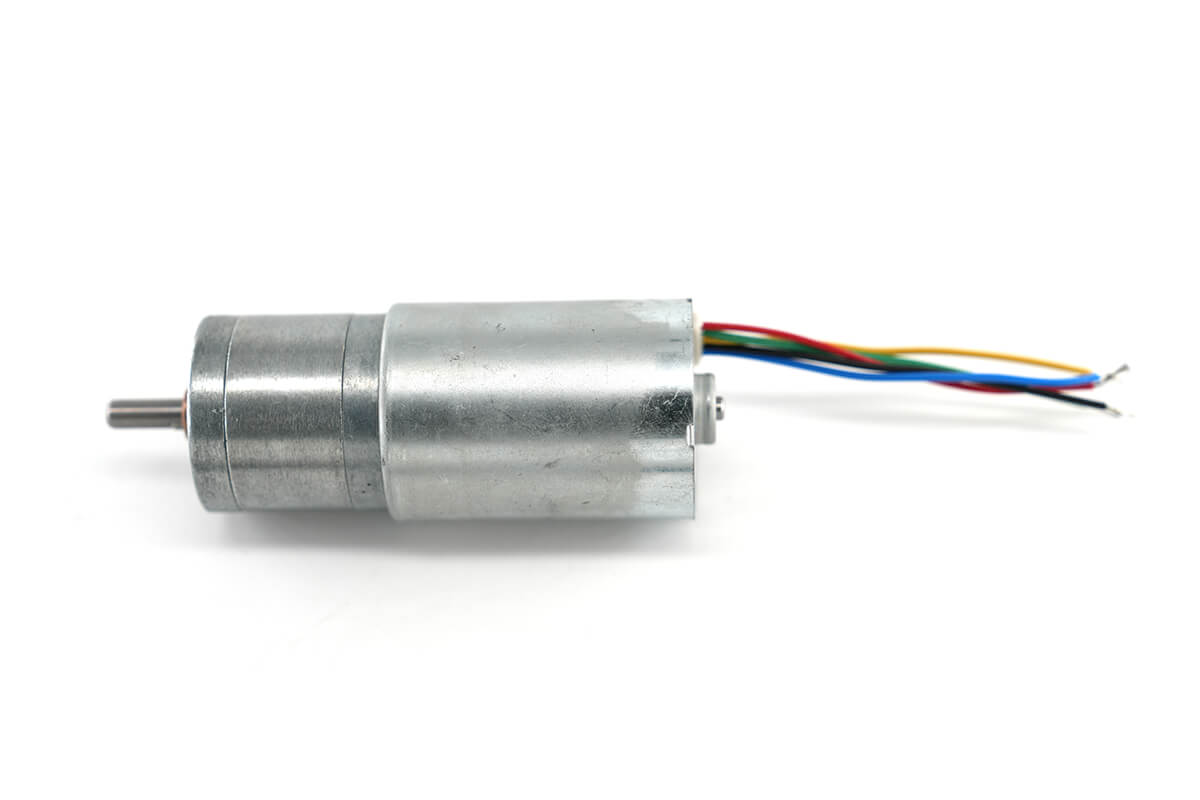

25mm 12V 24V Brushless DC Gear Motor Model NFP-GM25-BL2838
$30.00
Harness the power of our 25mm 12V 24V Brushless DC Gear Motor, designed for longevity and efficient performance. Order yours now!
First, engineers design this 25mm 12V 24V Brushless DC Gear Motor for high precision and long lifespan. Therefore, users can run this compact drive for over 2,000 hours without maintenance under rated torque. In addition, integrated Hall sensors supply exact speed feedback for your system needs.
High Torque Brushless Motor with Gearbox Datasheet
This motor uses stainless steel ball bearings to cut friction and noise. For example, the design allows fast heat release and strong performance across various uses.
| Parameter | Value |
|---|---|
| Model | NFP-GM25-BL2838 |
| Rated Voltage | 12V / 24V DC |
| No-load Current | ≤0.3A / ≤0.4A |
| No-load Speed | 12.5rpm – 2,700rpm |
| Output Shaft Diameter | 4mm |
| Output Shaft Length | 12mm |
| Rotation | CW / CCW |
| Hall Signals | Outputs 3 signals per revolution |
| Weight | appr. 120g |
Performance Data: Model NFP-GM25-BL2838, 12V DC
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 4.4:1 | 21mm | ≤0.3A | 1,360rpm | ≤0.7A | 1,090rpm | 0.5kg.cm | ≤3.0A | 2kg.cm |
| 9.3:1 | 21mm | ≤0.3A | 640rpm | ≤0.7A | 515rpm | 1.1kg.cm | ≤3.0A | 3.5kg.cm |
| 20:1 | 21mm | ≤0.3A | 300rpm | ≤0.7A | 240rpm | 2.3kg.cm | ≤3.0A | 9kg.cm |
| 34:1 | 23mm | ≤0.3A | 175rpm | ≤0.7A | 140rpm | 3.5kg.cm | ≤3.0A | 12kg.cm |
| 45:1 | 23mm | ≤0.3A | 130rpm | ≤0.7A | 105rpm | 4.5kg.cm | ≤3.0A | 12kg.cm |
| 57:1 | 25mm | ≤0.3A | 105rpm | ≤0.7A | 78rpm | 6kg.cm | ≤3.0A | 12kg.cm |
| 75:1 | 25mm | ≤0.3A | 80rpm | ≤0.7A | 65rpm | 7kg.cm | ≤3.0A | 12kg.cm |
| 100:1 | 25mm | ≤0.3A | 60rpm | ≤0.7A | 48rpm | ≤9kg.cm | ≤3.0A | 12kg.cm |
| 125:1 | 27mm | ≤0.3A | 48rpm | ≤0.7A | 40rpm | ≤9kg.cm | ≤3.0A | 12kg.cm |
| 217:1 | 27mm | ≤0.3A | 27rpm | ≤0.7A | 24rpm | ≤9kg.cm | ≤3.0A | 12kg.cm |
| 478:1 | 27mm | ≤0.3A | 12.5rpm | ≤0.7A | 11rpm | ≤9kg.cm | ≤3.0A | 12kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
Performance Data: Model NFP-GM25-BL2838, 24V DC
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 4.4:1 | 21mm | ≤0.4A | 2,700rpm | ≤1.2A | 2,180rpm | 1kg.cm | ≤2.5A | 4kg.cm |
| 9.3:1 | 21mm | ≤0.4A | 1,280rpm | ≤1.2A | 1,030rpm | 2.2kg.cm | ≤2.5A | 7kg.cm |
| 20:1 | 21mm | ≤0.4A | 600rpm | ≤1.2A | 480rpm | 4.5kg.cm | ≤2.5A | 12kg.cm |
| 34:1 | 23mm | ≤0.4A | 350rpm | ≤1.2A | 280rpm | 7kg.cm | ≤2.5A | 12kg.cm |
| 45:1 | 23mm | ≤0.4A | 260rpm | ≤1.2A | 210rpm | 9kg.cm | ≤2.5A | 12kg.cm |
| 57:1 | 25mm | ≤0.4A | 210rpm | ≤1.2A | 150rpm | 8kg.cm | ≤2.5A | 12kg.cm |
| 75:1 | 25mm | ≤0.4A | 160rpm | ≤1.2A | 140rpm | 8kg.cm | ≤2.5A | 12kg.cm |
| 100:1 | 25mm | ≤0.4A | 120rpm | ≤1.2A | 105rpm | 8kg.cm | ≤2.5A | 12kg.cm |
| 125:1 | 27mm | ≤0.4A | 96rpm | ≤1.2A | 85rpm | 8kg.cm | ≤2.5A | 12kg.cm |
| 217:1 | 27mm | ≤0.4A | 54rpm | ≤1.2A | 50rpm | 8kg.cm | ≤2.5A | 12kg.cm |
| 478:1 | 27mm | ≤0.4A | 25rpm | ≤1.2A | 11rpm | 8kg.cm | ≤3.0A | 12kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
Compact Low RPM Brushless Motor Outline Drawing
Also, full stainless steel ball bearings give this gearbox motor solid strength. Therefore, it delivers low friction, quiet operation, and long lifespan.
Wiring Diagram for Brushless Gear Motor
First, pick your rotation setup from the options below. Next, connect the lead wires to your power source accordingly:
- Clockwise (CW) Rotation: Connect the red wire to positive (+). Also, connect both black and blue wires to negative (-).
- Counter-Clockwise (CCW) Rotation: Connect the red wire to positive (+). In addition, connect black, blue, and yellow wires together to negative (-).
- Speed Control: Connect the blue PWM line to a 0-5V pulse signal to adjust motor speed.
- Signal Output: Use the green FG wire to receive 3 pulse signals per rotation for exact monitoring.
Related Motor Models & Options
If you need a brushed variation instead of brushless, explore the 25mm 12V 24V DC Geared Motor for simple drive applications.
For applications requiring precise position control, consider the 25mm Stepper Gear Motor Model NFP-25BY as a high-accuracy alternative.
If your design demands higher torque output in a similar footprint, check out the 37mm 12V 24V Brushless DC Gear Motor Model NFP-GM37-BL3650.
