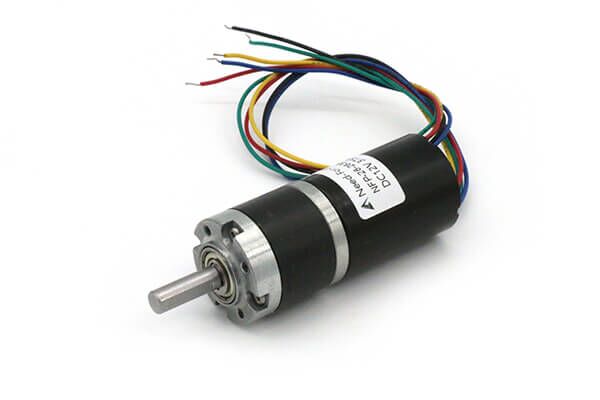

28mm 12V 24V BLDC Planetary Geared Motor Model NFP-GA28Y-2838
$36.00
Experience powerful performance with our 28mm 12V 24V BLDC Planetary Geared Motor. Enjoy low noise and high torque for your projects!
Brushless Full Metal Gear Motor | Planetary Gearbox Motor Parameters
First, this low speed, high torque DC brushless gear motor features a pure copper coil and a high-precision rotor for reliable performance. In addition, this motor ensures quiet operation with double ball bearings, providing smooth functionality for your projects.
| Parameter | Value |
|---|---|
| Model | NFP-GA28Y-2838 |
| Rated Voltage | 12V / 24V DC |
| Output Shaft Length | 13mm |
| Output Shaft Diameter | 6mm |
| No-load Current | 0.13A – 0.25A |
| No-load Speed | 15rpm – 3,000rpm |
| Power | 3.6W / 15W |
| Max Torque | 30kg.cm |
| Rotation | CW / CCW |
| Weight | 205g – 235g |
Model: NFP-GA28Y-2838-1260, 12V DC
For 12V power needs, this 28mm 12V 24V BLDC planetary geared motor provides key performance options across various ratios.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 4:1 | 1,500rpm | 0.13A | 1,350rpm | 0.33A | 0.15kg.cm | 0.4kg.cm | 0.5A |
| 16:1 | 375rpm | 0.13A | 300rpm | 0.33A | 0.5kg.cm | 1.5kg.cm | 0.5A |
| 25:1 | 240rpm | 0.13A | 216rpm | 0.33A | 1kg.cm | 2.5kg.cm | 0.5A |
| 64:1 | 94rpm | 0.13A | 84rpm | 0.33A | 2.25kg.cm | 6kg.cm | 0.5A |
| 88:1 | 68rpm | 0.13A | 61rpm | 0.33A | 3.25kg.cm | 8.5kg.cm | 0.5A |
| 138:1 | 43rpm | 0.13A | 39rpm | 0.33A | 5kg.cm | 13kg.cm | 0.5A |
| 400:1 | 15rpm | 0.13A | 13rpm | 0.33A | 15kg.cm | 40kg.cm | 0.5A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-GA28Y-2838-24120, 24V DC
Also, engineers choose the 24V setup when higher speeds and stronger output torque are needed.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 4:1 | 3,000rpm | 0.25A | 2,700rpm | 0.65A | 0.3kg.cm | 0.8kg.cm | 1A |
| 16:1 | 750rpm | 0.25A | 600rpm | 0.65A | 1kg.cm | 3kg.cm | 1A |
| 25:1 | 480rpm | 0.25A | 432rpm | 0.65A | 2kg.cm | 5kg.cm | 1A |
| 64:1 | 187rpm | 0.25A | 168rpm | 0.65A | 4.5kg.cm | 12kg.cm | 1A |
| 88:1 | 136rpm | 0.25A | 122rpm | 0.65A | 6.5kg.cm | 17kg.cm | 1A |
| 138:1 | 86rpm | 0.25A | 78rpm | 0.65A | 10kg.cm | 26kg.cm | 1A |
| 400:1 | 30rpm | 0.25A | 27rpm | 0.65A | 30kg.cm | 80kg.cm | 1A |
Note: all reduced no-load speeds have a tolerance of ±15%.
High Torque 28mm Micro DC Gear Motor Outline Drawing
Furthermore, this motor uses all-metal planetary gears, offering a compact design with light weight. Therefore, it delivers strong resistance to shock and smooth transmission for demanding uses.
In addition, built-in Hall sensors help control the rotor angle directly. As a result, this setup increases torque and provides long durability.
Micro Brushless Planetary Gearmotors Wiring Diagram
First, high efficiency gears and reliable wire materials ensure stable output. Next, the design protects against high temperatures during daily operation.
- Full metal planetary gear structure for long wear life
- Built-in Hall sensors for accurate control
- Double ball bearings for low noise and smooth operation
- Multiple gear ratios available to fit custom torque needs
Related Motor Models & Options
If you require precise angle control with custom mounting configurations, explore our NFP-GM12-N20V-EN Encoder Gear Motor as an integrated alternative.
For applications needing direct linear actuation instead of rotational output, consider the NFP-GM1024-N30-M4 Linear Stepper Motor.
For higher torque density in a compact form factor, check out the NFP-GM1218-TB050S Coreless Gear Motor.
Keywords:
24v geared dc motor, brushless gear motor, BLDC gear motor, quiet 12v gear motor for robotics and automation, durable 28mm dc gear motor for precise control applications, micro dc gear motor 12v 24v for small-scale machinery, 12v planetary dc gear motor for industrial equipment
Sampling quantities for stocked models are available for ordering directly from us online.
Engineering & Manufacturing:
Please contact one of our Sales Engineers for a quotation for production and consultation for customization and integration services.
Payment Method:
Payment methods : Paypal or T/T
Shipping Method:
1.Delivery: DHL door to door 5-7days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
5.In order to ensure you receive your order tax free upon import, we will declare it with a lower value, pls be noted ,thanks!
FAQ - Frequently Asked Questions
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It's better to offer application prototype drawings to us if possible.
Q: What's your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What's the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
