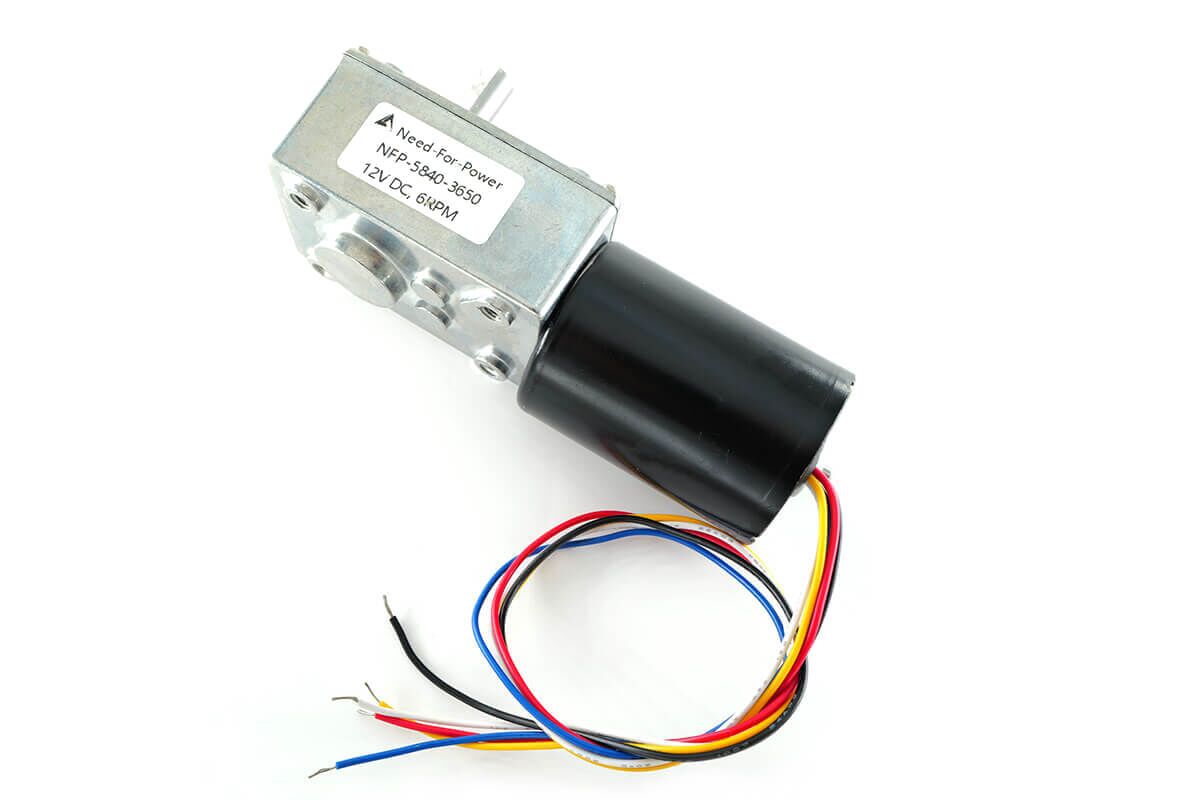

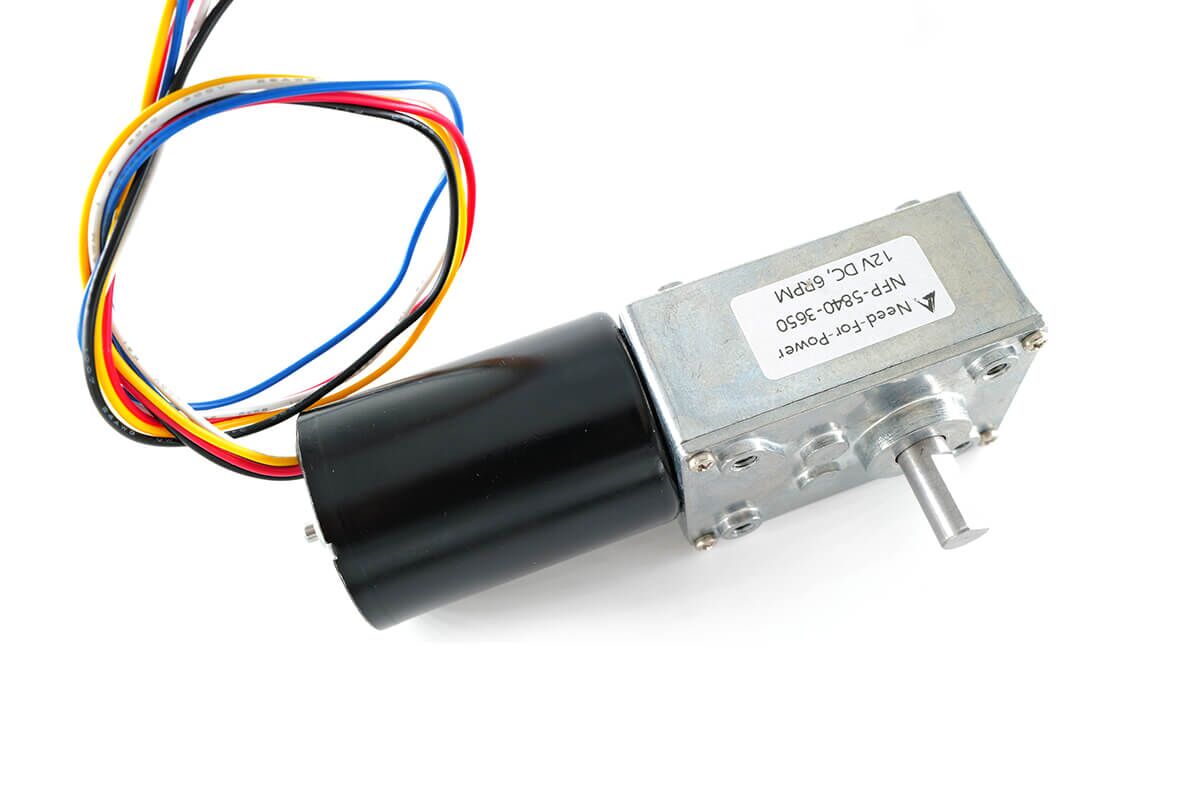

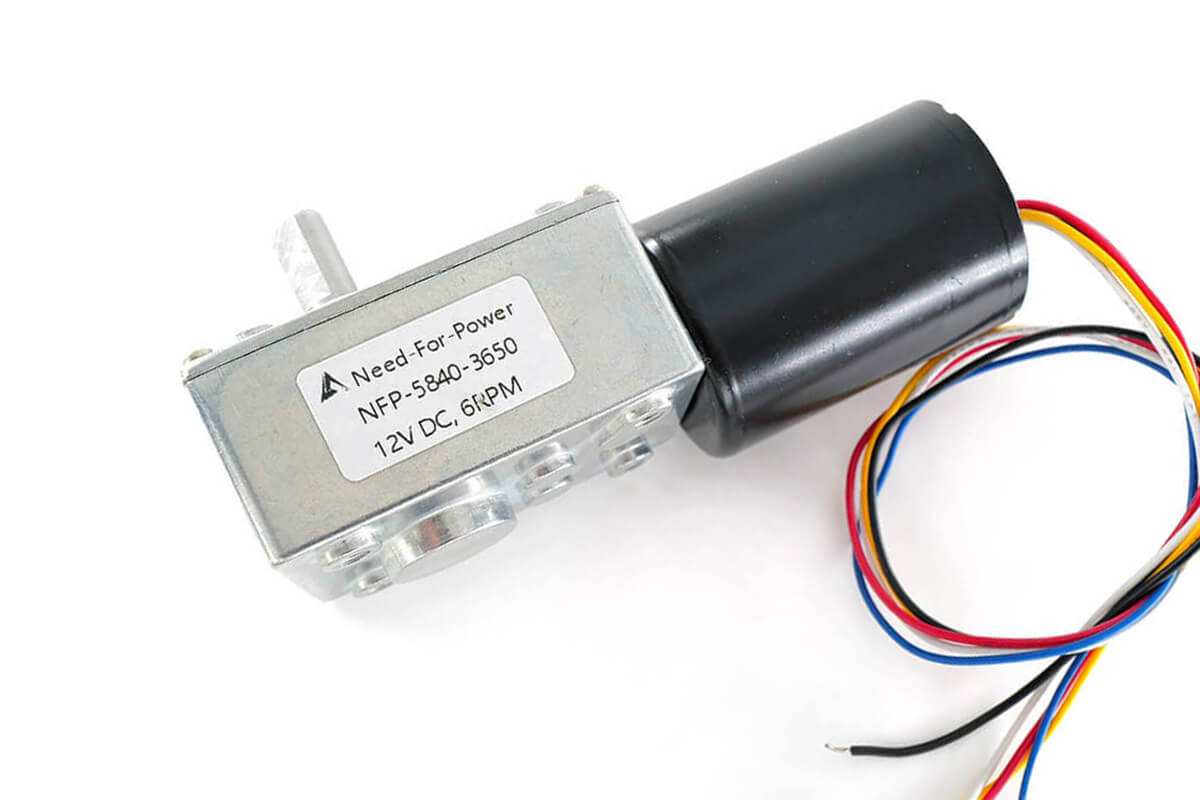

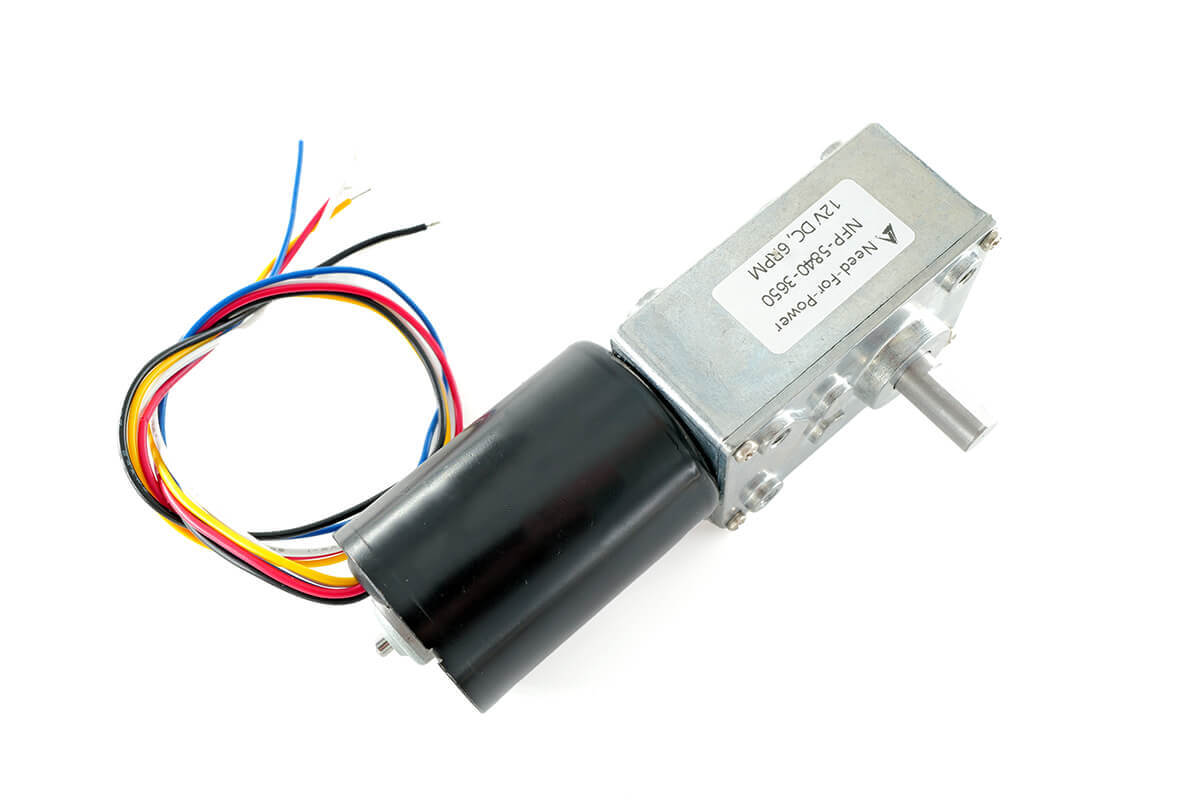

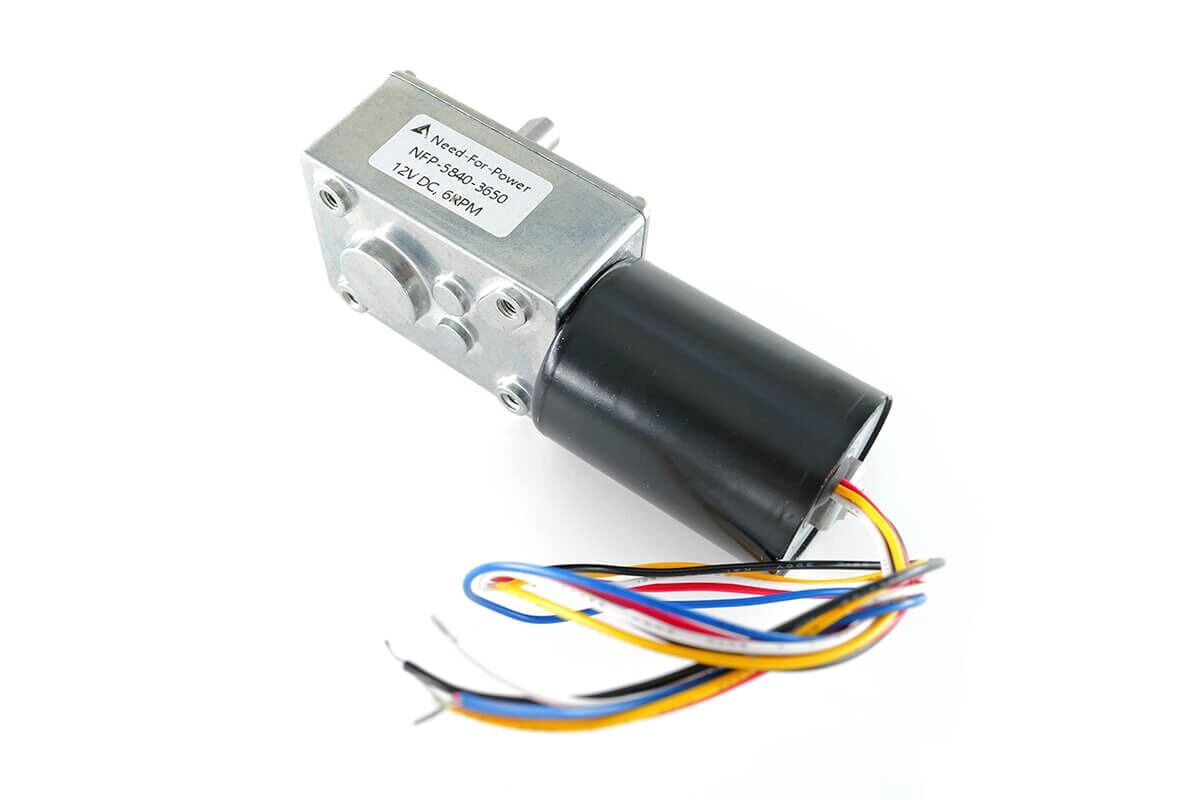

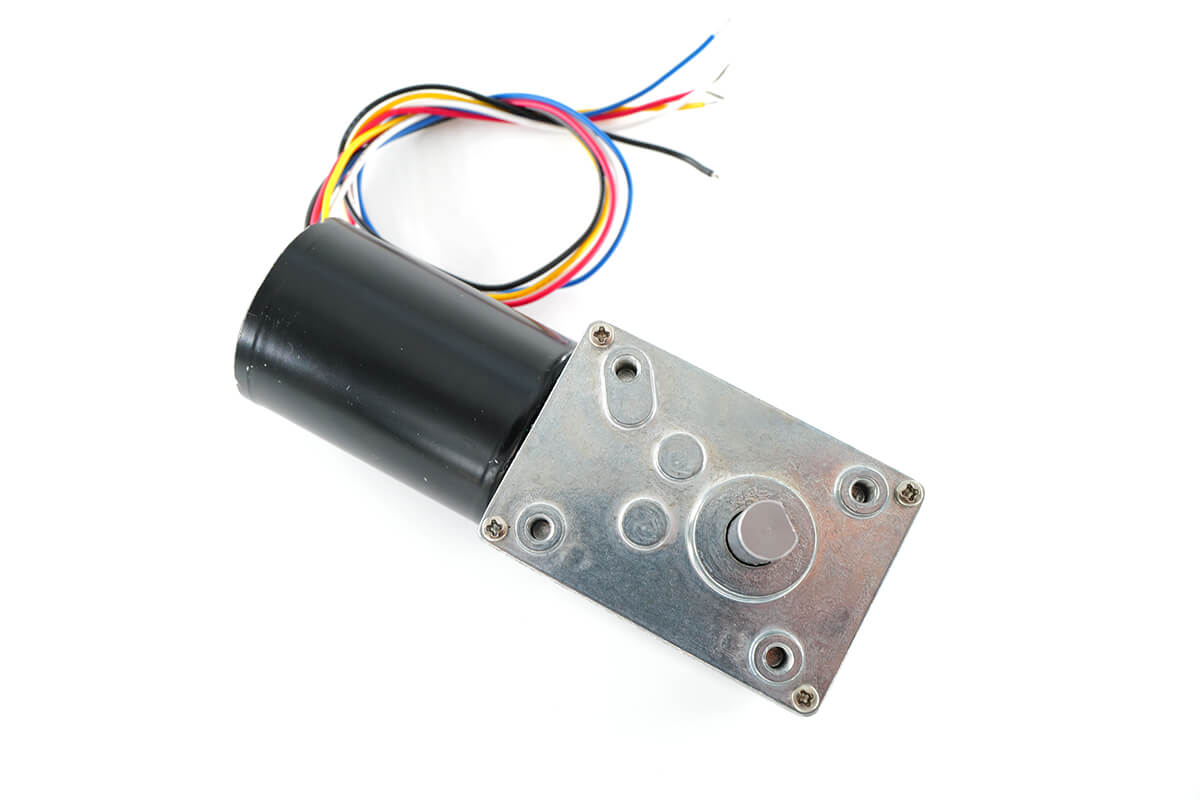

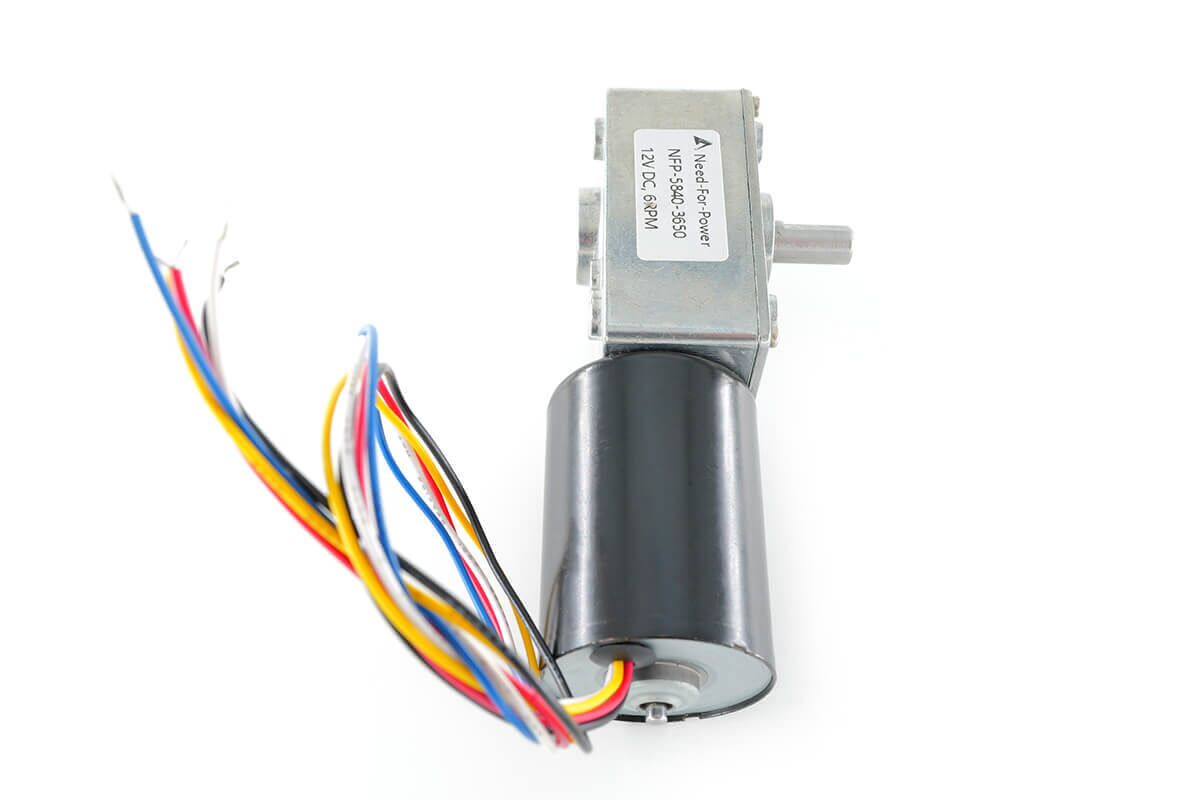

36mm 12V 24V Brushless DC Worm Gear Motor 40Kg.cm Self-locking Model NFP-5840-BL3650
$48.00
Unlock the power of versatility with the 36mm 12V 24V Brushless DC Worm Gear Motor. Ideal for various applications like locks and shredders!
High Power BLDC Right Angle Gear Motor Data Sheet
High Torque: Provides up to 40kg.cm of torque, ideal for heavy-duty applications.
Self-locking: Ensures stable positioning without additional mechanisms.
Reversible: Capable of both forward and reverse rotation to suit various operational needs.
Durable Construction: Built for reliability and longevity, suitable for continuous operation.
Versatile Applications: Perfect for electronic game machine, locks, paper shredders.
| Model | NFP-5840-BL3650 |
|---|---|
| Rated Voltage | 12V / 24V DC |
| No-load Current | ≤0.2A |
| No-load Speed | 5rpm – 350rpm |
| Shaft Diameter | 8mm |
| Shaft Length | 15mm |
| Rotation | CW / CCW |
| Weight | appr. 400g |
Model: NFP-5840-BL3650, 12V DC
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 17:1 | ≤0.2A | 175rpm | ≤0.6A | 135rpm | 1.5kg.cm | ≤2.5A | ≥6kg.cm |
| 36:1 | ≤0.2A | 83rpm | ≤0.6A | 63rpm | 3kg.cm | ≤2.5A | ≥12kg.cm |
| 54:1 | ≤0.2A | 55rpm | ≤0.6A | 42rpm | 4.5kg.cm | ≤2.5A | ≥18kg.cm |
| 72:1 | ≤0.2A | 41rpm | ≤0.6A | 32rpm | 6kg.cm | ≤2.5A | ≥35kg.cm |
| 106:1 | ≤0.2A | 28rpm | ≤0.6A | 21rpm | 9kg.cm | ≤2.5A | ≤40kg.cm |
| 212:1 | ≤0.2A | 14rpm | ≤0.6A | 11rpm | 18kg.cm | ≤2.5A | ≤40kg.cm |
| 280:1 | ≤0.2A | 10rpm | ≤0.6A | 8rpm | 24kg.cm | ≤2.5A | ≤40kg.cm |
| 590:1 | ≤0.2A | 5rpm | ≤0.6A | 4rpm | 40kg.cm | ≤2.5A | ≤40kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-5840-BL3650, 24V DC
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 17:1 | ≤0.2A | 350rpm | ≤1.3A | 240rpm | 3kg.cm | ≤4A | ≥10kg.cm |
| 36:1 | ≤0.2A | 165rpm | ≤1.3A | 112rpm | 6kg.cm | ≤4A | ≥20kg.cm |
| 54:1 | ≤0.2A | 110rpm | ≤1.3A | 74rpm | 9.5kg.cm | ≤4A | ≥30kg.cm |
| 72:1 | ≤0.2A | 83rpm | ≤1.3A | 55rpm | 12kg.cm | ≤4A | ≤40kg.cm |
| 106:1 | ≤0.2A | 56rpm | ≤1.3A | 37rpm | 19kg.cm | ≤4A | ≤40kg.cm |
| 212:1 | ≤0.2A | 28rpm | ≤1.3A | 19rpm | 38kg.cm | ≤4A | ≤40kg.cm |
| 280:1 | ≤0.2A | 21rpm | ≤1.3A | 14rpm | 40kg.cm | ≤4A | ≤40kg.cm |
| 590:1 | ≤0.2A | 10rpm | ≤1.3A | 7rpm | 40kg.cm | ≤4A | ≤40kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
High Performance Brushless Worm Gear Motor Outline Drawing
8mm D-shaped shaft with dual ball bearings:
- Precise Positioning: The D-shaped shaft allows for better alignment accuracy, ensuring precise positioning and secure mounting of the motor during installation and operation.
- Enhanced Stability: Dual ball bearings offer increased support area and uniform load distribution, enhancing the motor’s stability and reliability.
- Resistance to Lateral Loads: The design of dual ball bearings effectively withstands lateral forces and torque from various directions, reducing motor vibration and noise during operation.
Brushless BLDC Worm Gear Motors Bracket Dimension
BLDC motors operate with minimal noise emissions, ensuring a tranquil and comfortable environment in diverse settings. Whether integrated into residential appliances, office equipment, or medical devices, its subdued operational sound enhances user comfort and reduces disturbance.
Precision Brushless Gear Reduction Motor Wiring Instruction
Improved Durability: Utilizing dual ball bearings reduces wear and friction, extending the motor’s lifespan and enhancing performance stability.
Warning: Reversing power supply polarity or allowing power supply polarity to touch FG signal wire/speed control wire will damage driver board, resulting in motor to stop functioning or malfunction!
Keywords:
miniature brushless engine, brushless dc motors, bldc brushless motor, worm gearhead motor, small geared dc motor, miniature gear motor, motor with worm gearbox, worm gearmotor, high torque dc brushless gear motor, worm and wheel, reduction motor gearbox, motor with metal gearbox, 12v dc motor with gearbox.
Sampling quantities for stocked models are available for ordering directly from us online.
Engineering & Manufacturing:
Please contact one of our Sales Engineers for a quotation for production and consultation for customization and integration services.
Payment Method:
Payment methods : Paypal or T/T
Shipping Method:
1.Delivery: DHL door to door 5-7days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
5.In order to ensure you receive your order tax free upon import, we will declare it with a lower value, pls be noted ,thanks!
FAQ – Frequently Asked Questions
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
