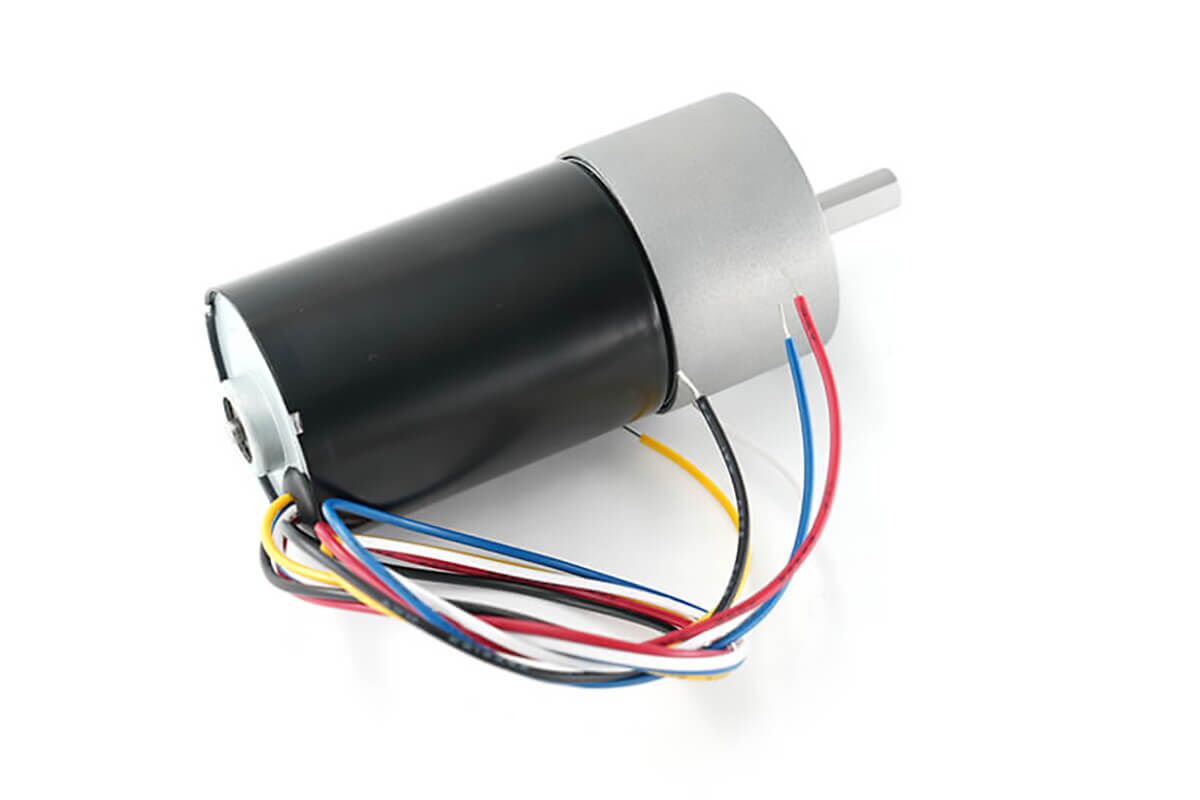

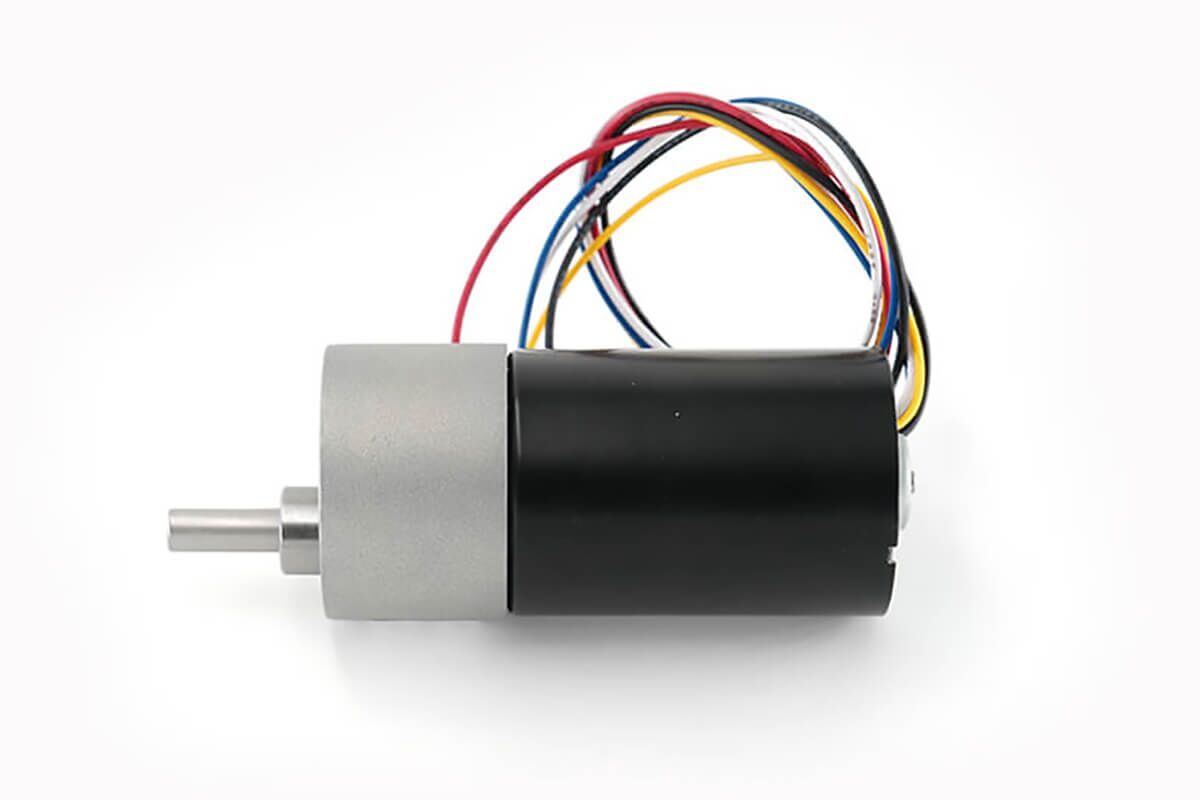

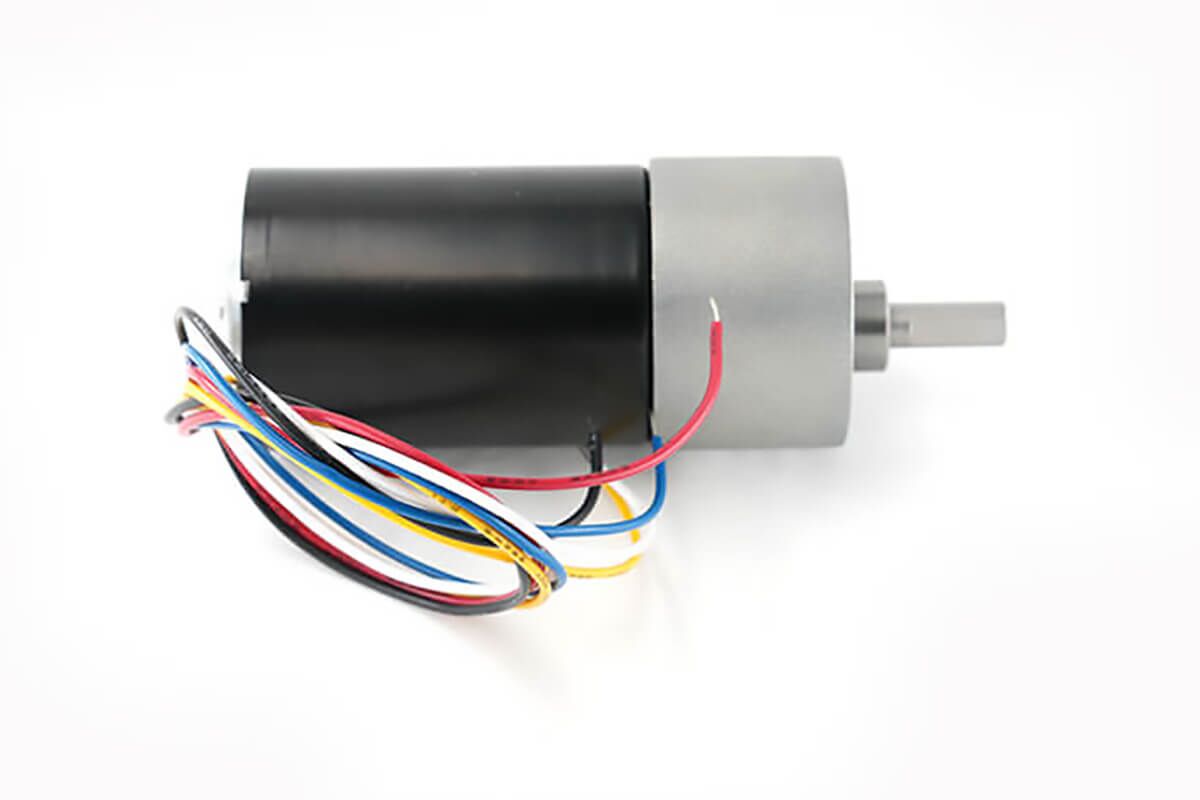

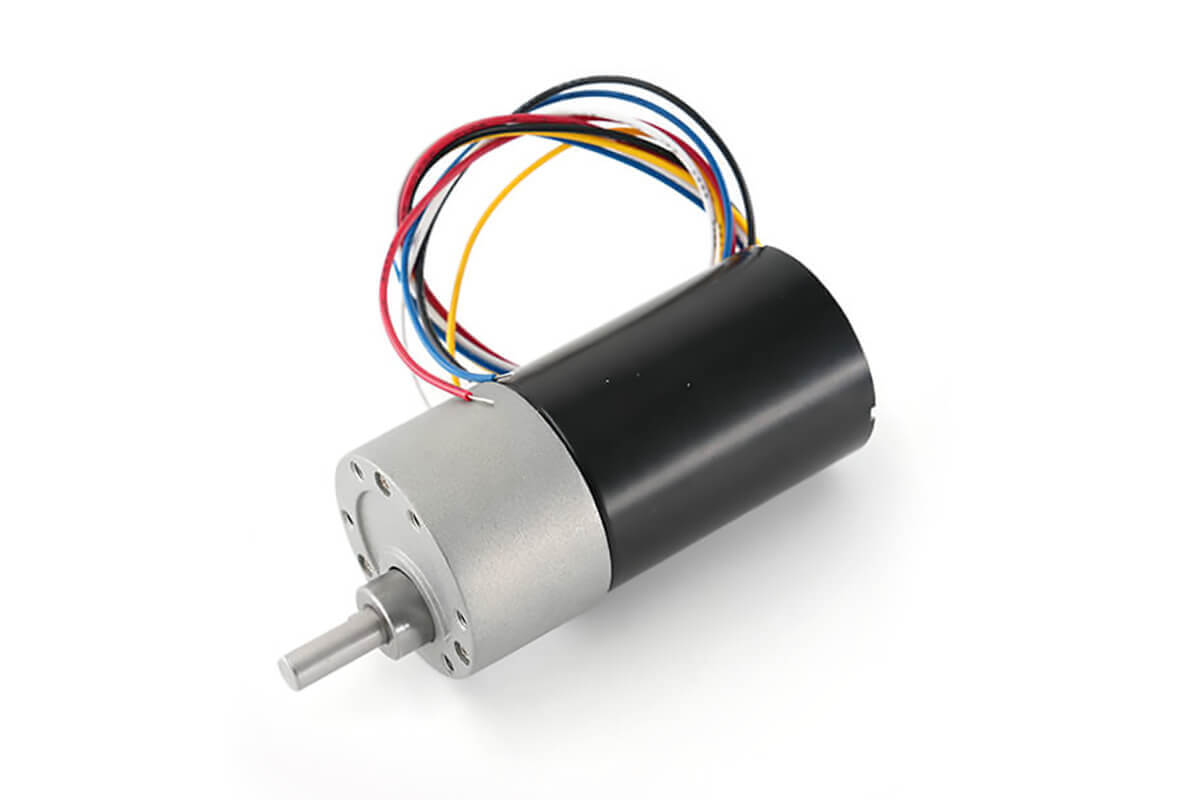

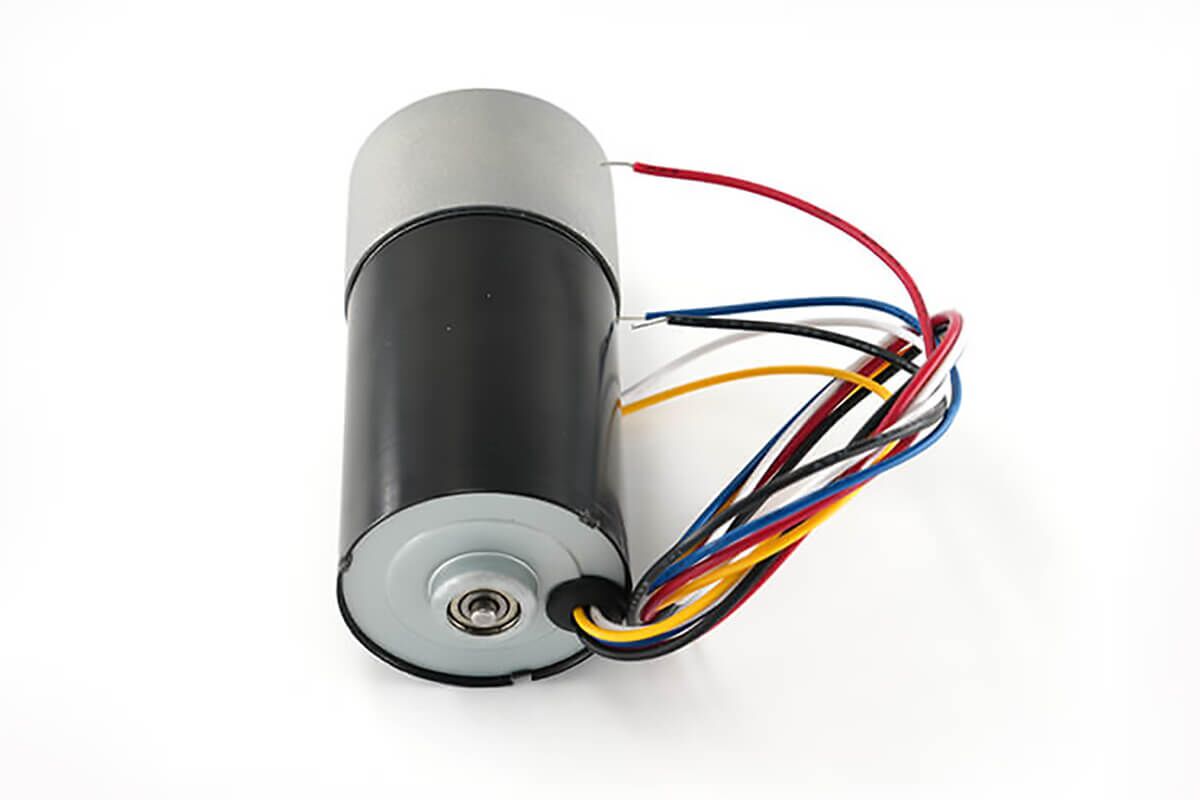

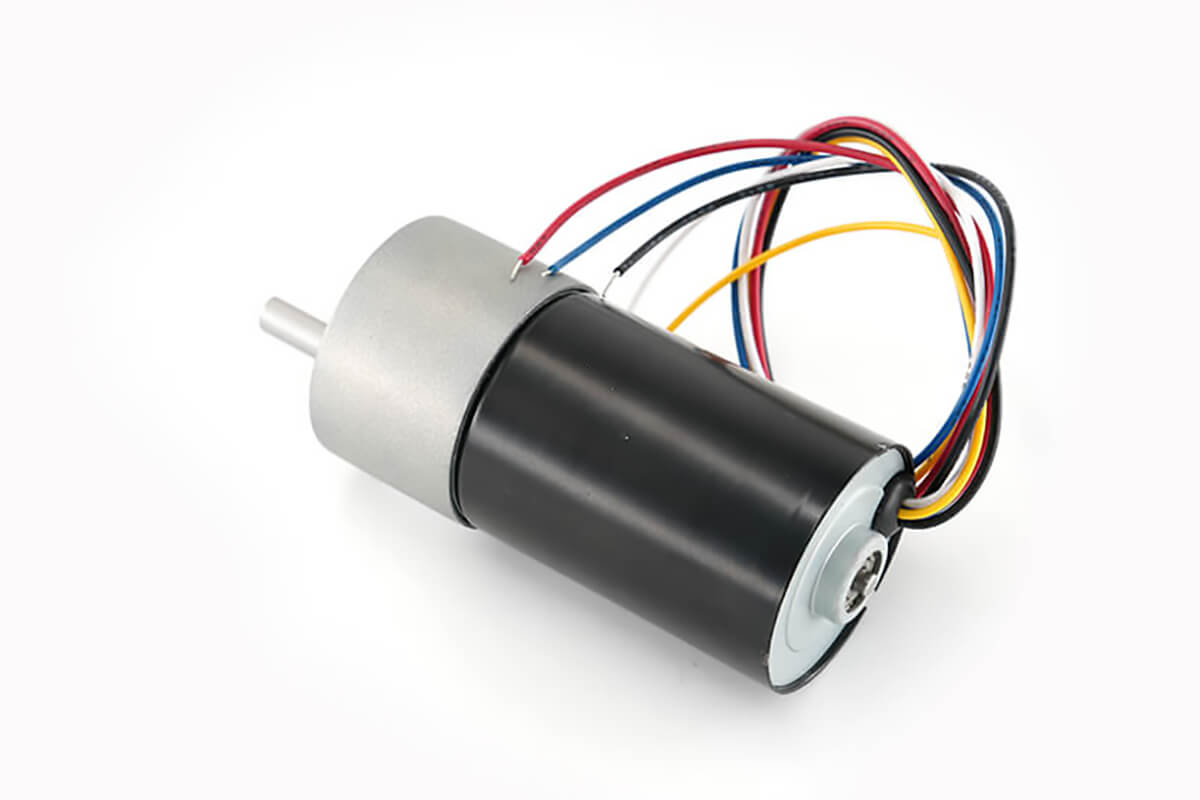

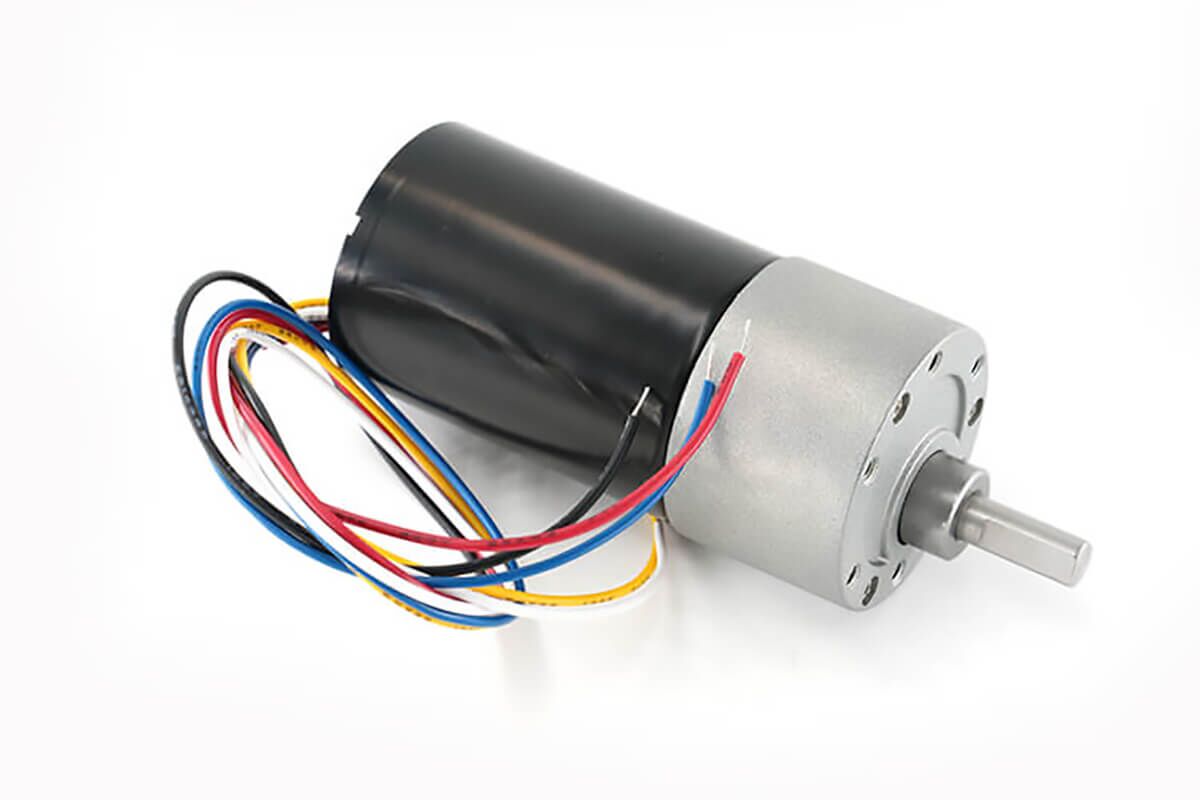

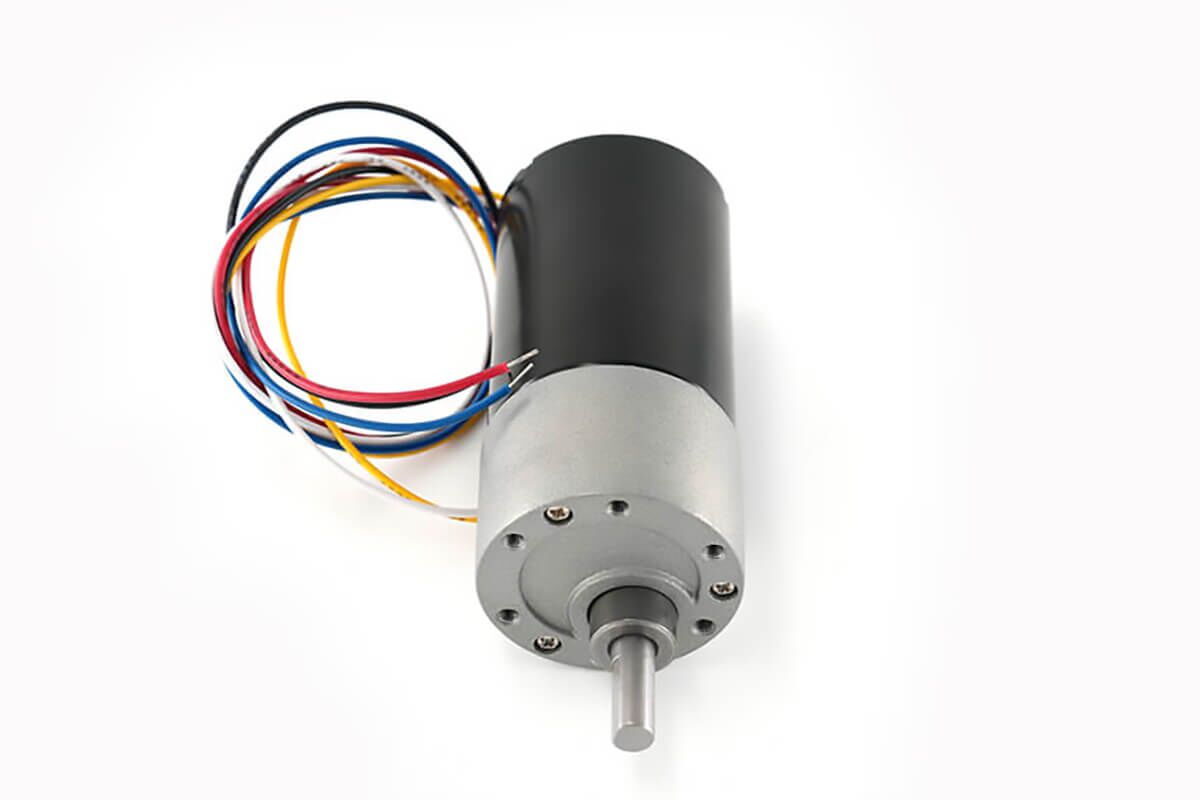

36mm 12V 24V Brushless DC Gear Motor Model NFP-GM37-BL3650
$31.00
Elevate your builds with the reliable 36mm 12V 24V Brushless DC Gear Motor, designed to decrease friction and enhance lifespan. Discover the difference!
BLDC Brushless Motor with Gearbox Key Features
First, this BLDC brushless motor with gearbox uses full ball bearing support in key motor areas. As a result, it can reduce friction, run more smoothly, and handle different loads.
- Ball bearing benefits: longer life, better precision, lower noise, and less maintenance.
- Full metal gear benefits: higher load, longer life, stronger build, and better heat stability.
Also, the table below gives the main motor data. Therefore, it helps you check voltage, speed range, shaft size, output power, and weight before choosing a model.
| Motor Model | NFP-GM37-BL3650 |
|---|---|
| Rated Voltage | 12V / 24V DC |
| No Load Speed | 5.2rpm – 1,300rpm |
| No Load Current | ≤0.2A / ≤0.32A |
| Max Output Power | 7W / 30W |
| Shaft Diameter | 6mm |
| Shaft Length | 21mm |
| D-cut Shaft Length | 12mm |
| Weight | appr. 280g |
In addition, the 12V DC version offers several gear ratios for different speed and torque needs. For example, a low ratio gives higher speed, while a high ratio gives higher torque.
Model: NFP-GM37-BL3650, 12V DC, Power-cut Protection Current 3A
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Gearbox Length |
|---|---|---|---|---|---|---|
| 6.3:1 | 650RPM | ≤0.2A | 530RPM | ≤0.85A | 0.8kg.cm | 19mm |
| 10:1 | 415RPM | ≤0.2A | 335RPM | ≤0.85A | 1.2kg.cm | 19mm |
| 18.8:1 | 215RPM | ≤0.2A | 178RPM | ≤0.85A | 2.2kg.cm | 21.5mm |
| 30:1 | 135RPM | ≤0.2A | 112RPM | ≤0.85A | 3.5kg.cm | 21.5mm |
| 50:1 | 82RPM | ≤0.2A | 67.5RPM | ≤0.85A | 6kg.cm | 24mm |
| 90:1 | 45RPM | ≤0.2A | 37RPM | ≤0.85A | 11kg.cm | 24mm |
| 150:1 | 27RPM | ≤0.2A | 23RPM | ≤0.85A | 18kg.cm | 26.5mm |
| 270:1 | 15RPM | ≤0.2A | 13RPM | ≤0.85A | 32kg.cm | 26.5mm |
| 450:1 | 9RPM | ≤0.2A | 7.5RPM | ≤0.85A | <30kg.cm | 29mm |
| 650:1 | 6.3RPM | ≤0.2A | 5.5RPM | ≤0.85A | <30kg.cm | 29mm |
| 810:1 | 5.2RPM | ≤0.2A | 4.5RPM | ≤0.85A | <30kg.cm | 29mm |
Therefore, the 12V DC data is useful when you need a compact brushless gear motor for low-voltage use. In short, all reduced no-load speeds have a tolerance of ±15%.
Furthermore, the 24V DC version gives higher speed and stronger output for many automation and robotics builds. Similarly, the gear ratio lets you balance speed and torque.
Model: NFP-GM37-BL3650, 24V DC, Power-cut Protection Current 3A
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Gearbox Length |
|---|---|---|---|---|---|---|
| 6.3:1 | 1300RPM | ≤0.32A | 1070RPM | ≤1.1A | 1.5kg.cm | 19mm |
| 10:1 | 830RPM | ≤0.32A | 670RPM | ≤1.1A | 2.5kg.cm | 19mm |
| 18.8:1 | 425RPM | ≤0.32A | 355RPM | ≤1.1A | 4.5kg.cm | 21.5mm |
| 30:1 | 270RPM | ≤0.32A | 225RPM | ≤1.1A | 7kg.cm | 21.5mm |
| 50:1 | 165RPM | ≤0.32A | 135RPM | ≤1.1A | 12kg.cm | 24mm |
| 90:1 | 90RPM | ≤0.32A | 75RPM | ≤1.1A | 22kg.cm | 24mm |
| 150:1 | 55RPM | ≤0.32A | 45RPM | ≤1.1A | <30kg.cm | 26.5mm |
| 270:1 | 30RPM | ≤0.32A | 27.5RPM | ≤0.6A | <30kg.cm | 26.5mm |
| 450:1 | 18RPM | ≤0.32A | 17RPM | ≤0.5A | <30kg.cm | 29mm |
| 650:1 | 12.5RPM | ≤0.32A | 12RPM | ≤0.4A | <30kg.cm | 29mm |
| 810:1 | 10.2RPM | ≤0.32A | 9.8RPM | ≤0.4A | <30kg.cm | 29mm |
As a result, the 24V DC version is a good choice when higher speed is needed. In conclusion, all reduced no-load speeds have a tolerance of ±15%.
Miniature Geared Electric Motors Outline Drawing
First, the outline drawing shows the main size data for this miniature geared electric motor. Also, it helps you check the shaft, gearbox, and body size before design work.
- Brushless internal Hall driver board benefits: high efficiency, long life, low EMI, and high-speed operation.
- The brushless design reduces brush wear and helps the motor run more safely at higher speeds.
High Power Brushless Gear Motor Wiring Instruction
Next, the wiring guide shows how to connect the motor power, direction, PWM speed control, and FG signal wires. Therefore, please check each wire before use.
- Red Wire: positive pole of motor power supply +, polarity must not be reversed.
- Black Wire: negative pole of motor power supply –, polarity must not be reversed.
- White Wire: direction control wire. When disconnected, the motor rotates in one direction. Connect it to the negative pole along with the black wire for reverse rotation.
- Blue Wire: PWM speed control wire. Connect it to a 0~5V pulse width modulator.
- Yellow Wire: FG signal wire. It outputs 6 square wave pulses, and speed can be checked by pulse frequency.
Finally, the wiring diagram gives a clear view of each wire position. As a result, it can reduce wiring errors during testing or installation.
