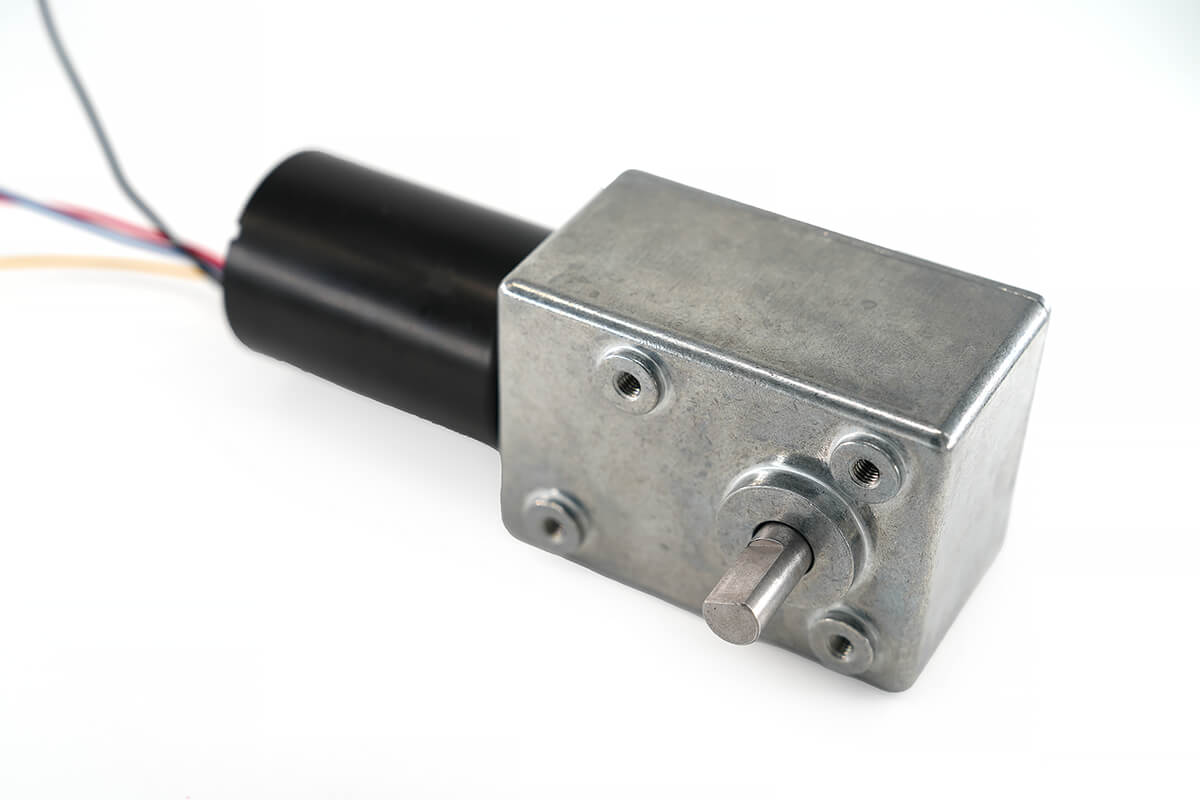

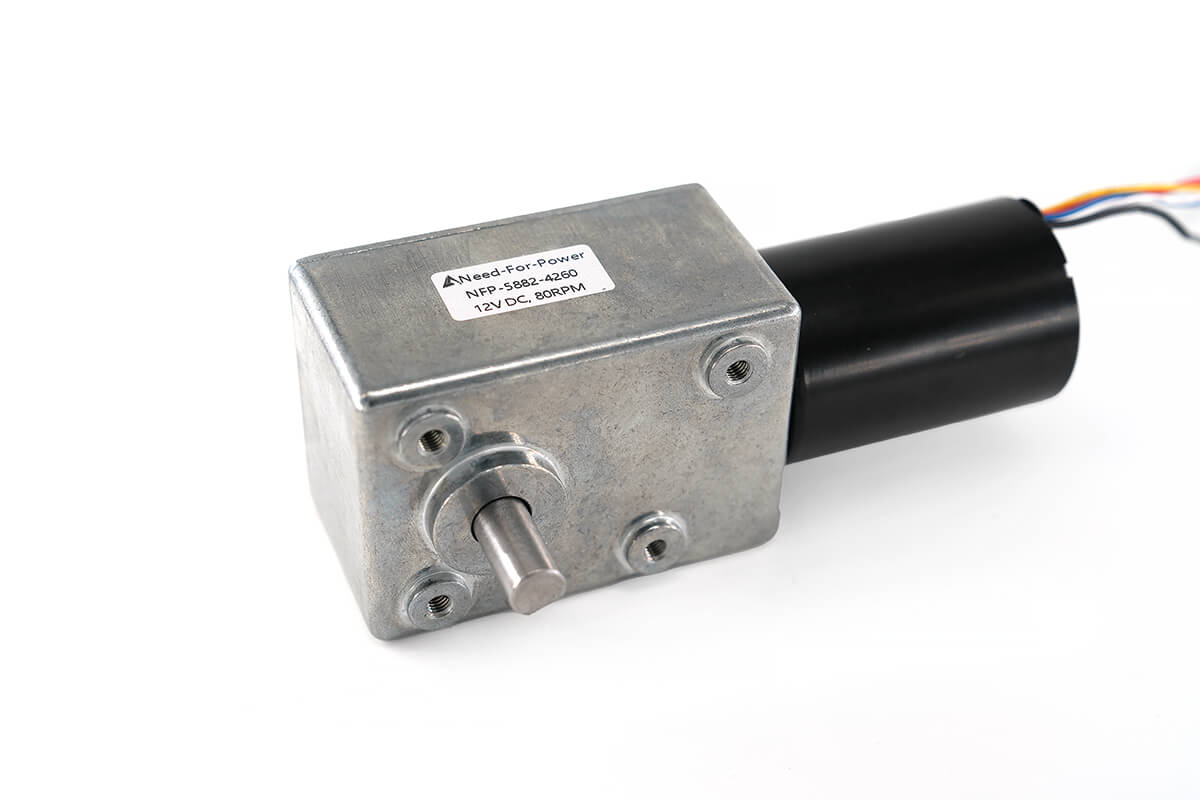

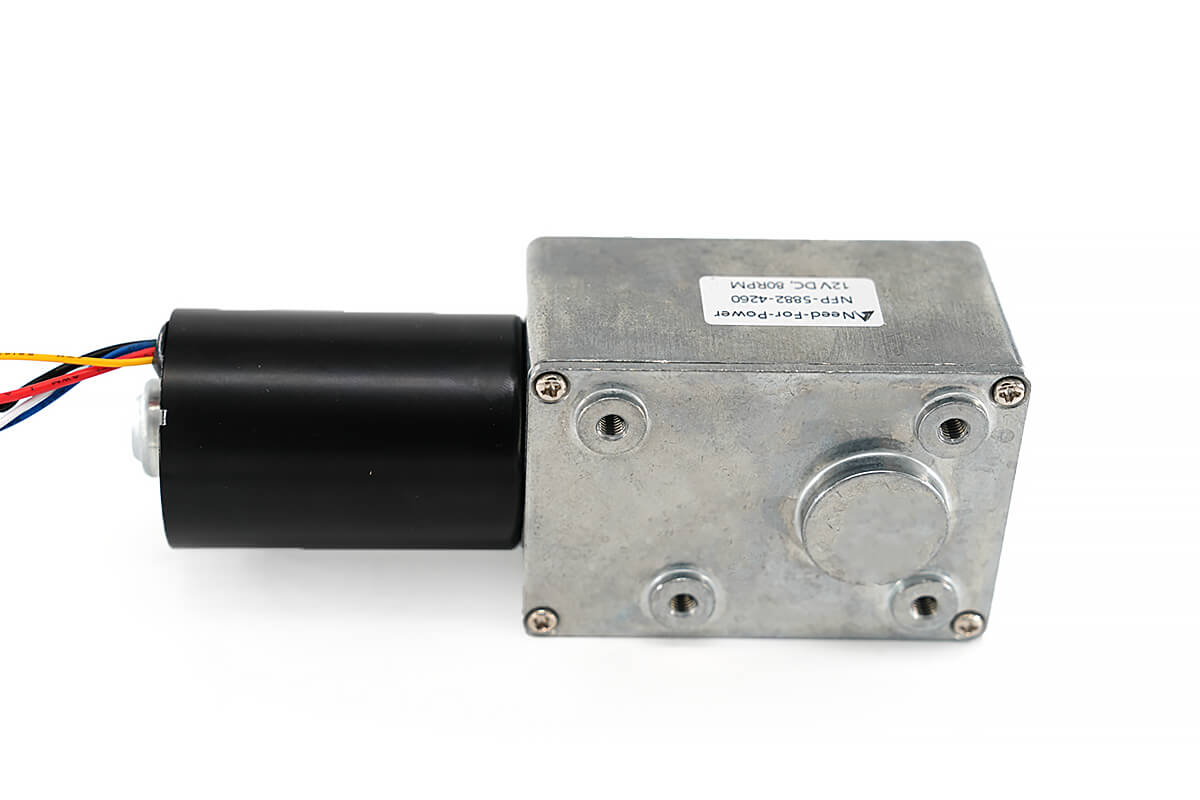

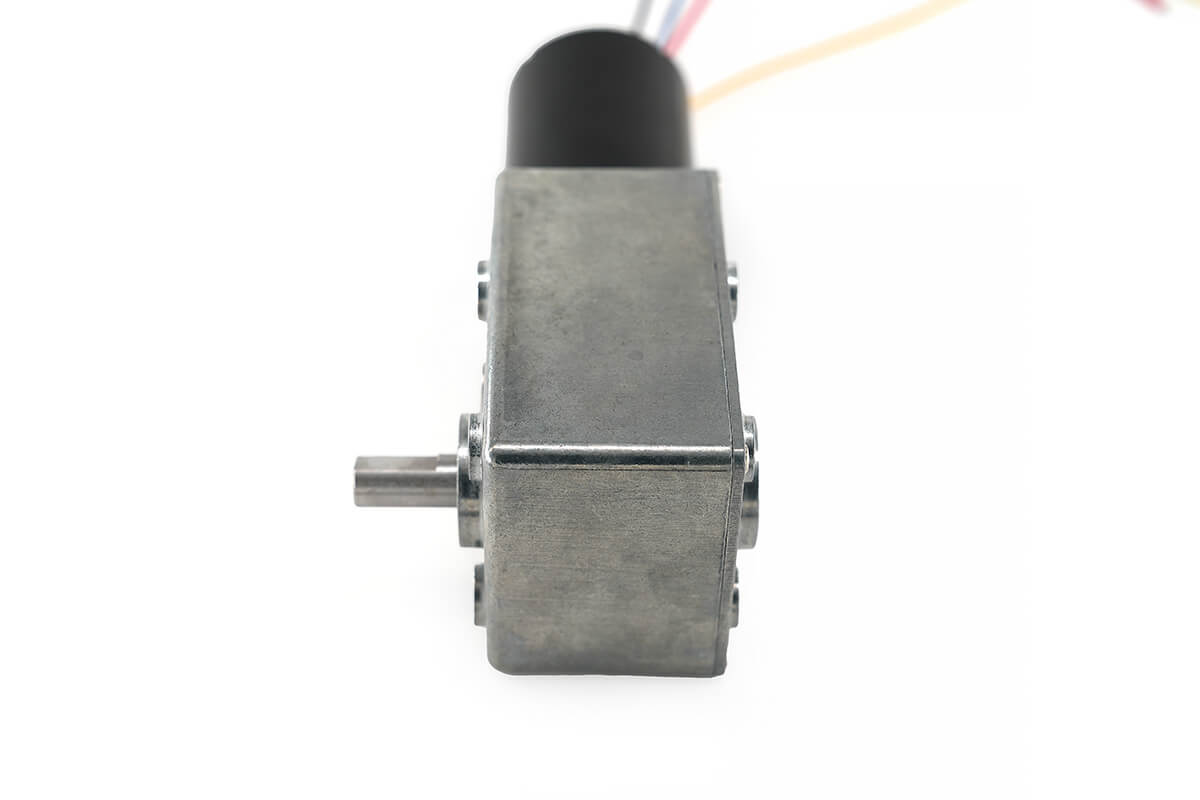

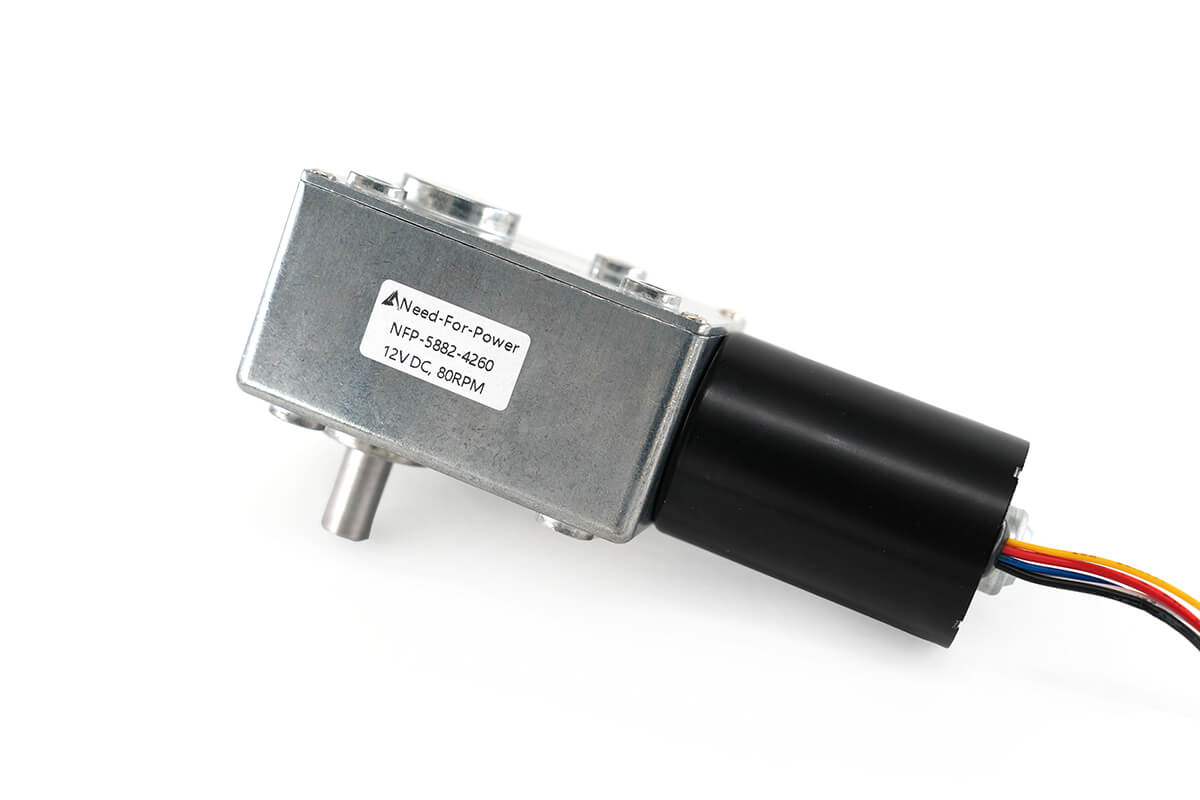

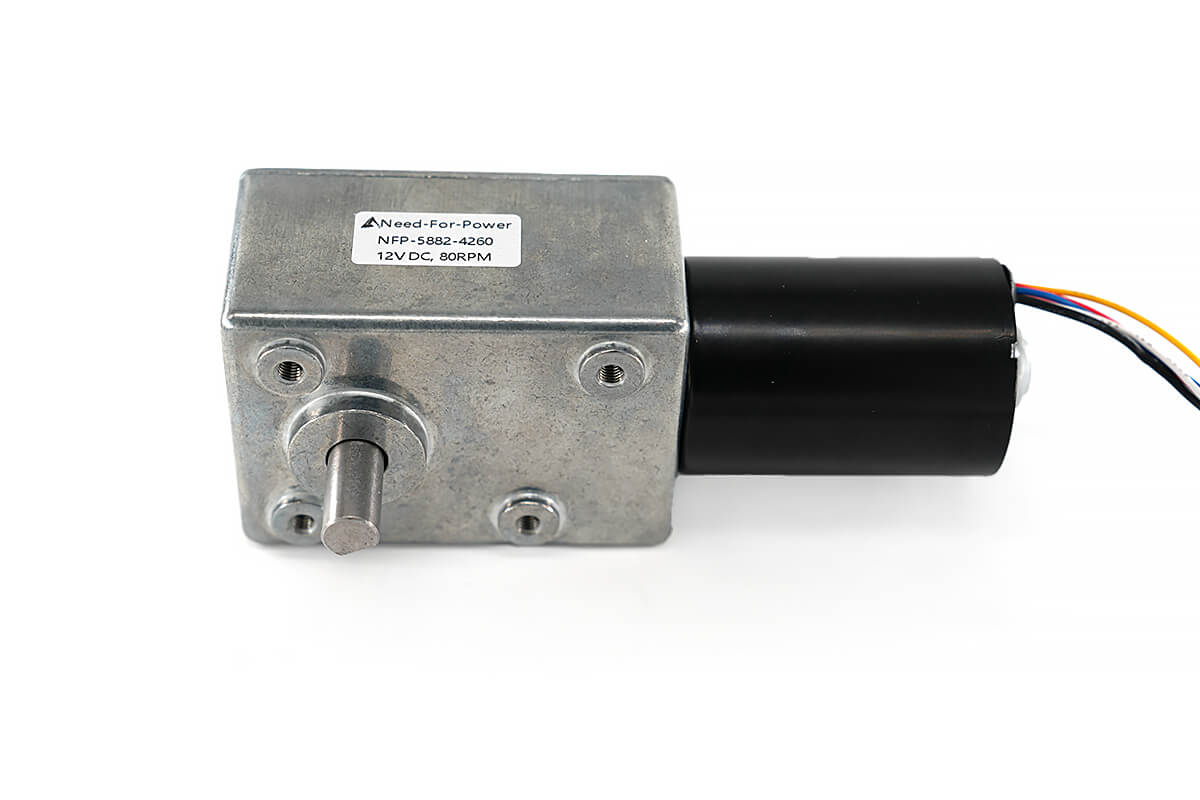

42mm 12V 24V Brushless Worm Reduction Motor Self-locking 150Kg.cm NFP-5882-4260
$65.00
Discover the power of the 42mm 12V 24V Brushless Worm Reduction Motor, designed for efficiency and longevity. Enjoy hassle-free performance today!
Brushless Motor with Gearbox Parameters
The core feature of this motor is its brushless design, which eliminates the need for physical brushes, reducing friction and wear. This results in higher efficiency, lower heat generation, and longer lifespan compared to traditional brushed motors. The absence of brushes also reduces maintenance requirements, making it a cost-effective solution over time.
This motor features a worm gear system, known for its ability to deliver high torque at low speeds. The motor is ideal for applications that require powerful rotational force in a compact form. Whether it’s for lifting heavy loads, precision positioning, or driving industrial machinery, this motor ensures smooth and reliable torque delivery.
- Voltage: 12V, 24V, 48V options available
- Torque Range: Up to 150kg.cm
- Speed: Adjustable, with various RPM options
- Built-in: Hall Board
- Bearings: Double Ball bearing
| Model | NFP-5882-4260 |
|---|---|
| Shaft Diameter | 10mm |
| Shaft Length | 20mm |
| Voltage | 12V / 24V DC |
| No-load Speed | 7.3rpm – 533rpm |
| No-load Current | 0.4A / 0.8A |
| Power | 19W |
| Rotation | CW / CCW |
| Weight | appr. 1,000g |
Model: NFP-5882-4260, 12V DC, BLDC motor without gearbox 8,000rpm
| Ratio | No-load Speed | No-load Current | Rated Torque | Rated Speed | Rated Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 15:1 | 533rpm | 0.8A | 4kg.cm | 433rpm | 1.8A | 15kg.cm | 7A |
| 30:1 | 265rpm | 0.8A | 8kg.cm | 216rpm | 1.8A | 30kg.cm | 7A |
| 50:1 | 160rpm | 0.8A | 14kg.cm | 130rpm | 1.8A | 48kg.cm | 7A |
| 100:1 | 80rpm | 0.8A | 28kg.cm | 65rpm | 1.8A | 80kg.cm | 7A |
| 176:1 | 45rpm | 0.8A | 49kg.cm | 36rpm | 1.8A | 120kg.cm | 7A |
| 250:1 | 30rpm | 0.8A | 70kg.cm | 26rpm | 1.8A | 150kg.cm | 7A |
| 545:1 | 14rpm | 0.8A | 100kg.cm | 11rpm | 1.8A | 180kg.cm | 7A |
| 1,090:1 | 7.3rpm | 0.8A | 150kg.cm | 6rpm | 1.8A | 180kg.cm | 7A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-5882-4260, 24V DC, BLDC motor without gearbox 8,000rpm
| Ratio | No-load Speed | No-load Current | Rated Torque | Rated Speed | Rated Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 15:1 | 533rpm | 0.4A | 4kg.cm | 433rpm | 1.6A | 15kg.cm | 7A |
| 30:1 | 265rpm | 0.4A | 8kg.cm | 216rpm | 1.6A | 30kg.cm | 7A |
| 50:1 | 160rpm | 0.4A | 14kg.cm | 130rpm | 1.6A | 48kg.cm | 7A |
| 100:1 | 80rpm | 0.4A | 28kg.cm | 65rpm | 1.6A | 80kg.cm | 7A |
| 176:1 | 45rpm | 0.4A | 49kg.cm | 36rpm | 1.6A | 120kg.cm | 7A |
| 250:1 | 30rpm | 0.4A | 70kg.cm | 26rpm | 1.6A | 150kg.cm | 7A |
| 545:1 | 14rpm | 0.4A | 100kg.cm | 11rpm | 1.6A | 180kg.cm | 7A |
| 1,090:1 | 7.3rpm | 0.4A | 150kg.cm | 6rpm | 1.6A | 180kg.cm | 7A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Electric Brushless Worm Motor Dimension
With its integrated worm gear mechanism, the motor is designed to save space while providing optimal performance. The compact footprint makes it ideal for use in confined spaces or applications where equipment size needs to be minimized without sacrificing power.
The brushless motor’s design allows for higher energy efficiency by reducing electrical losses associated with brushes and commutators. The motor operates with greater power efficiency, leading to lower operational costs, making it environmentally friendly and economically beneficial.
The motor is engineered for quiet performance, even under high torque loads. The precision gears ensure smooth movement, making it suitable for applications that demand low noise levels, such as medical devices, automation systems, or high-end consumer products.

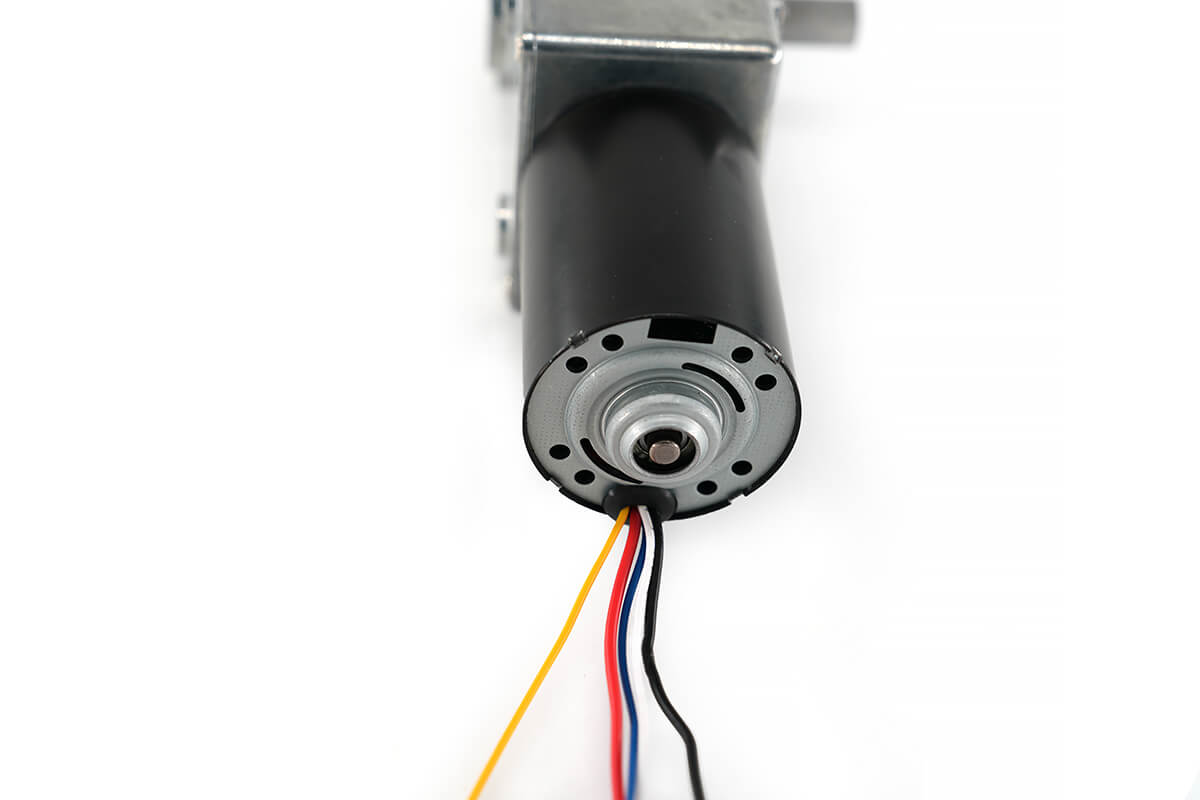

Efficient Brushless Worm Gear Motor Wiring Connection
- Red Wire: Motor Power Positive (+DC 12V-24V), must be connected correctly.
- Black Wire: Motor Power Negative (-DC 12V-24V), must be connected correctly.
- Yellow Wire: FG Signal Output (For external devices to detect motor speed, outputs 12 square wave pulses per motor revolution).
- White Wire: Motor Direction Control: When unconnected, motor runs counterclockwise (CCW). When connected to low level (≤ 0.6V), motor runs clockwise (CW).
- Blue Wire: Speed Control: Adjusts speed by inputting an analog voltage (0-5V); speed is proportional to the voltage.
Why Choose Our Brushless Worm Gear Motor?
Choosing our brushless worm gear motor ensures you benefit from a motor designed with innovation, efficiency, and durability in mind. Whether for industrial automation, robotics, or high-performance machinery, this motor delivers reliable performance with minimal maintenance. Its energy-efficient design, paired with high torque capabilities, makes it a smart choice for a wide range of applications.
Keywords:
compact brushless worm gear motor, 12v brushless worm gear motor, dc brushless gear motor, high torque brushless motor
Sampling quantities for stocked models are available for ordering directly from us online.
Engineering & Manufacturing:
Please contact one of our Sales Engineers for a quotation for production and consultation for customization and integration services.
Payment Method:
Payment methods : Paypal or T/T
Shipping Method:
1.Delivery: DHL door to door 5-7days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
5.In order to ensure you receive your order tax free upon import, we will declare it with a lower value, pls be noted ,thanks!
FAQ – Frequently Asked Questions
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
