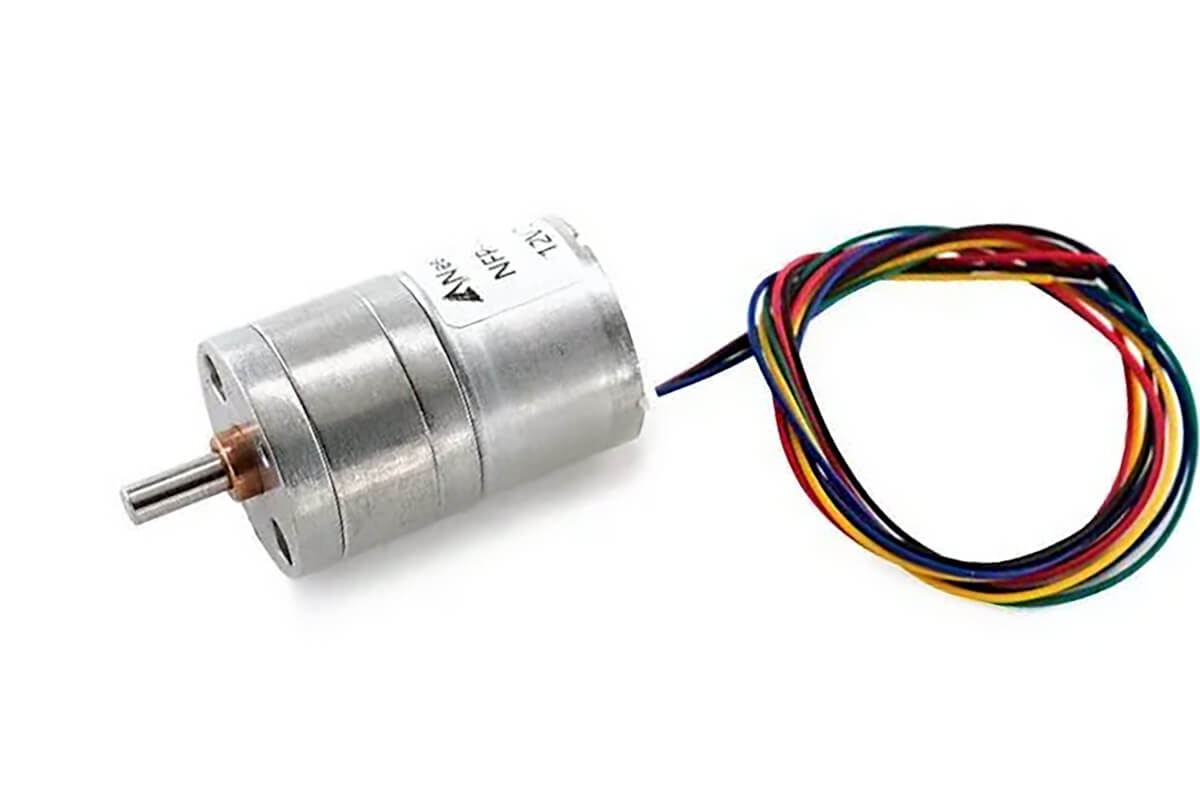

25mm 6V 12V 24V Brushless DC Gear Motor Model NFP-GM25-BL2418
$20.50
Discover the power of the 25mm Brushless DC Gear Motor with adjustable speed and impressive torque. Perfect for your next project – order now!
Micro Brushless Motor with Gearbox Data Sheet
— NFP-GM25-BL2418 DC gear motor’s speed can be adjusted, can be forward and reverse. The maximum torque of gear motors can reach 8kg.cm. Including all-metal gears, long service life, noise and other characteristics.
— For this model, 6V series is black, 12V 24V series is silver.
| Model | NFP-GM25-BL2418 |
|---|---|
| Motor Diameter | 24.4mm |
| Shaft Diameter | 4mm |
| Shaft Length | 12mm |
| Rated Voltage | 12V / 24V DC |
| Rated Current | ≤0.13A / ≤0.26A / ≤0.45A |
| Output Power | 0.65W / 2.5W |
| No-load Speed | 9.5rpm – 2,000rpm |
| No-load Current | ≤0.05A / ≤0.08A / ≤0.17A |
| Max Torque | 8kg.cm |
| Rotation | CW / CCW |
| Weight | appr. 70g |
Model: NFP-GM25-BL2418, 6V DC
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Torque |
|---|---|---|---|---|---|---|---|
| 4.4:1 | 19mm | ≤0.17A | 1,360rpm | ≤0.45A | 840rpm | 0.07kg.cm | ≥0.2kg.cm |
| 9.3:1 | 19mm | ≤0.17A | 645rpm | ≤0.45A | 400rpm | 0.15kg.cm | ≥0.5kg.cm |
| 20:1 | 19mm | ≤0.17A | 300rpm | ≤0.45A | 185rpm | 0.32kg.cm | ≥1.1kg.cm |
| 34:1 | 21mm | ≤0.17A | 175rpm | ≤0.45A | 108rpm | 0.55kg.cm | ≥1.7kg.cm |
| 45:1 | 21mm | ≤0.17A | 133rpm | ≤0.45A | 82rpm | 0.75kg.cm | ≥2.5kg.cm |
| 75:1 | 23mm | ≤0.17A | 80rpm | ≤0.45A | 50rpm | 1.25kg.cm | ≥3.5kg.cm |
| 100:1 | 23mm | ≤0.17A | 60rpm | ≤0.45A | 37rpm | 1.6kg.cm | ≥5kg.cm |
| 125:1 | 25mm | ≤0.17A | 48rpm | ≤0.45A | 30rpm | 2kg.cm | ≥6kg.cm |
| 217:1 | 25mm | ≤0.17A | 27rpm | ≤0.45A | 17rpm | 3kg.cm | ≥10kg.cm |
| 478:1 | 27mm | ≤0.17A | 12.5rpm | ≤0.45A | 7.7rpm | 8kg.cm | ≥10kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-GM25-BL2418, 12V DC
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Torque |
|---|---|---|---|---|---|---|---|
| 4.4:1 | 19mm | ≤0.05A | 1,000rpm | ≤0.13A | 700rpm | 0.07kg.cm | ≥0.2kg.cm |
| 9.3:1 | 19mm | ≤0.05A | 470rpm | ≤0.13A | 335rpm | 0.15kg.cm | ≥0.5kg.cm |
| 20:1 | 19mm | ≤0.05A | 225rpm | ≤0.13A | 150rpm | 0.32kg.cm | ≥1.1kg.cm |
| 34:1 | 21mm | ≤0.05A | 130rpm | ≤0.13A | 90rpm | 0.55kg.cm | ≥1.7kg.cm |
| 45:1 | 21mm | ≤0.05A | 100rpm | ≤0.13A | 70rpm | 0.75kg.cm | ≥2.5kg.cm |
| 75:1 | 23mm | ≤0.05A | 60rpm | ≤0.13A | 40rpm | 1.25kg.cm | ≥3.5kg.cm |
| 100:1 | 23mm | ≤0.05A | 45rpm | ≤0.13A | 30rpm | 1.6kg.cm | ≥5kg.cm |
| 125:1 | 25mm | ≤0.05A | 35rpm | ≤0.13A | 25rpm | 2kg.cm | ≥6kg.cm |
| 217:1 | 25mm | ≤0.05A | 20rpm | ≤0.13A | 15rpm | 3kg.cm | ≥10kg.cm |
| 478:1 | 27mm | ≤0.05A | 9.5rpm | ≤0.13A | 6rpm | 8kg.cm | ≥10kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-GM25-BL2418, 24V DC
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Torque |
|---|---|---|---|---|---|---|---|
| 4.4:1 | 19mm | ≤0.08A | 2,000rpm | ≤0.26A | 1,450rpm | 0.15kg.cm | ≥0.4kg.cm |
| 9.3:1 | 19mm | ≤0.08A | 960rpm | ≤0.26A | 700rpm | 0.3kg.cm | ≥1kg.cm |
| 20:1 | 19mm | ≤0.08A | 450rpm | ≤0.26A | 325rpm | 0.65kg.cm | ≥2.2kg.cm |
| 34:1 | 21mm | ≤0.08A | 260rpm | ≤0.26A | 190rpm | 1.1kg.cm | ≥3.5kg.cm |
| 45:1 | 21mm | ≤0.08A | 200rpm | ≤0.26A | 145rpm | 1.5kg.cm | ≥5kg.cm |
| 75:1 | 23mm | ≤0.08A | 120rpm | ≤0.26A | 85rpm | 2.5kg.cm | ≥7kg.cm |
| 100:1 | 23mm | ≤0.08A | 90rpm | ≤0.26A | 65rpm | 3.3kg.cm | ≥10kg.cm |
| 125:1 | 25mm | ≤0.08A | 72rpm | ≤0.26A | 52rpm | 4kg.cm | ≥10kg.cm |
| 217:1 | 25mm | ≤0.08A | 41rpm | ≤0.26A | 30rpm | 6kg.cm | ≥10kg.cm |
| 478:1 | 27mm | ≤0.08A | 19rpm | ≤0.26A | 12rpm | 8kg.cm | ≥10kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
Low Speed Brushless Gearhead Motor Outline Drawing
DC brushless gear motor used for CNC machine tools, valve, laser cutting, tool machinery, food packaging, robots, manipulators, communication equipment, printing equipment, precision monitoring systems, automatic control systems, vehicle industry, semiconductor equipment, parking equipment, etc.
High Torque DC Brushless Gear Motor Wiring Diagram
— Ensure that the power supply matches the specified 6V/12V/24V DC to avoid damage or underperformance.
— Utilize the FG speed signal wire to implement advanced control algorithms for optimal speed regulation.
— Take advantage of the PWM control for energy-efficient and responsive speed adjustments.
- Forward Rotation: Red wire connects to the power supply positive, black and blue wires connect to the power supply negative.
- Reverse Rotation: Connect yellow wire with black and blue to the negative for reverse.
- Caution: Incorrect polarity can damage the motor. Verify connections before operation.
How About DC Motor with Gearbox?
DC motor with a gearbox is a versatile component that enhances the motor’s torque while reducing its speed, providing a mechanical advantage for applications like robotics, machinery, and automotive systems where precise control and heavy load handling are required.
Adding a planetary gearbox to a DC motor, it is also relatively cost-effective, offers compact design with precise speed reduction, high torque density, efficient power transfer and smooth operation.
Keywords:
brushless gear motor, 25mm brushless motor, high torque motor, dc motor with gearbox, geared dc motor, low speed gear motors, 200rpm gear motor, BLDC motor high torque, 60rpm motor, adjustable speed dc motor for precision devices, compact gear motor for robotics.
Sampling quantities for stocked models are available for ordering directly from us online.
Engineering & Manufacturing:
Please contact one of our Sales Engineers for a quotation for production and consultation for customization and integration services.
Payment Method:
Payment methods : Paypal or T/T
Shipping Method:
1.Delivery: DHL door to door 5-7days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
5.In order to ensure you receive your order tax free upon import, we will declare it with a lower value, pls be noted ,thanks!
FAQ – Frequently Asked Questions
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
