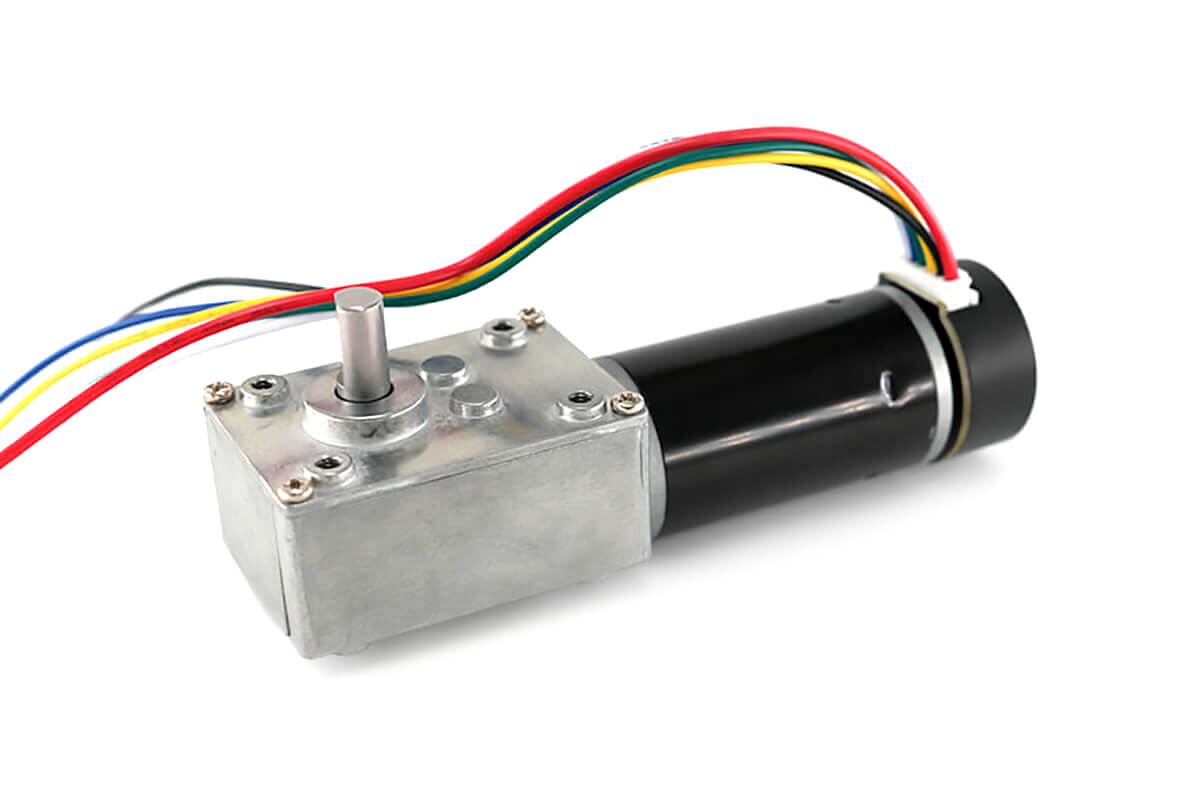

31mm 6V 12V 24V Worm Drive DC Motor with Encoder 40Kg.cm Self-locking NFP-GW5840-3162-EN
$35.00
Experience reliable efficiency with our 31mm 6V 12V 24V Worm Drive DC Motor. Built to last and perform in challenging environments, shop now!
High Torque Worm Gear Motor Data Sheet
- Efficient Performance: Perfect for versatile and durable applications, the worm drive motor features robust construction and high quality materials, ensuring long-lasting performance in challenging environments with low maintenance.
- Premium Gear Motor: Designed with precision engineering, these premium gear motors provaide smooth and consistent performance.
- Quiet Operation: Designed to minimize noise, the worm gear motor is perfect for environments requiring low noise levels, such as medical devices, office equipment, and home automation systems.
| Model | NFP-GW5840-3162-EN |
|---|---|
| Motor Diameter | 31mm |
| Length | 115mm |
| Shaft Diameter | 8mm |
| Shaft Length | 15mm |
| Rated Voltage | 6V / 12V / 24V DC |
| No-load Speed | 7rpm – 470rpm |
| No-load Current | ≤0.17A / ≤0.25A / ≤0.28A / ≤0.45A |
| Output Power | 5W / 6W / 20W / 35W |
| Connection | XH2.54-6PIN |
| Weight | appr. 360g |
Model: NFP-GW5840-3162-EN-0640, 6V DC, 40type
| Ratio | No-load Current | No-load Speed | Rated Torque | Rated Speed | Rated Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 17:1 | ≤0.28A | 230rpm | 2kg.cm | 170rpm | ≤0.9A | ≥7kg.cm | ≤3.5A |
| 36:1 | ≤0.28A | 111rpm | 4kg.cm | 82rpm | ≤0.9A | ≥15kg.cm | ≤3.5A |
| 54:1 | ≤0.28A | 74rpm | 6kg.cm | 55rpm | ≤0.9A | ≥25kg.cm | ≤3.5A |
| 72:1 | ≤0.28A | 55rpm | 8kg.cm | 40rpm | ≤0.9A | ≥35kg.cm | ≤3.5A |
| 108:1 | ≤0.28A | 37rpm | 12kg.cm | 27rpm | ≤0.9A | ≥50kg.cm | ≤3.5A |
| 212:1 | ≤0.28A | 18rpm | 25kg.cm | 14rpm | ≤0.9A | ≥70kg.cm | ≤3.5A |
| 280:1 | ≤0.28A | 14rpm | 30kg.cm | 11rpm | ≤0.9A | ≥70kg.cm | ≤3.5A |
| 590:1 | ≤0.28A | 7rpm | 40kg.cm | 6rpm | ≤0.9A | ≥70kg.cm | ≤3.5A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-GW5840-3162-EN-1240, 12V DC, 40type
| Ratio | No-load Current | No-load Speed | Rated Torque | Rated Speed | Rated Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 17:1 | ≤0.17A | 230rpm | 2kg.cm | 170rpm | ≤0.7A | ≥7kg.cm | ≤2.5A |
| 36:1 | ≤0.17A | 111rpm | 4kg.cm | 82rpm | ≤0.7A | ≥15kg.cm | ≤2.5A |
| 54:1 | ≤0.17A | 74rpm | 6kg.cm | 55rpm | ≤0.7A | ≥25kg.cm | ≤2.5A |
| 72:1 | ≤0.17A | 55rpm | 8kg.cm | 40rpm | ≤0.7A | ≥35kg.cm | ≤2.5A |
| 108:1 | ≤0.17A | 37rpm | 12kg.cm | 27rpm | ≤0.7A | ≥50kg.cm | ≤2.5A |
| 212:1 | ≤0.17A | 18rpm | 25kg.cm | 14rpm | ≤0.7A | ≥70kg.cm | ≤2.5A |
| 280:1 | ≤0.17A | 14rpm | 30kg.cm | 11rpm | ≤0.7A | ≥70kg.cm | ≤2.5A |
| 590:1 | ≤0.17A | 7rpm | 40kg.cm | 6rpm | ≤0.7A | ≥70kg.cm | ≤2.5A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-GW4058-3162-EN-1280, 12V DC, 80type
| Ratio | No-load Current | No-load Speed | Rated Torque | Rated Speed | Rated Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 17:1 | ≤0.45A | 470rpm | 4kg.cm | 350rpm | ≤1.8A | ≥10kg.cm | ≤7A |
| 36:1 | ≤0.45A | 222rpm | 8kg.cm | 165rpm | ≤1.8A | ≥20kg.cm | ≤7A |
| 54:1 | ≤0.45A | 148rpm | 12kg.cm | 105rpm | ≤1.8A | ≥35kg.cm | ≤7A |
| 72:1 | ≤0.45A | 111rpm | 16kg.cm | 85rpm | ≤1.8A | ≥50kg.cm | ≤7A |
| 108:1 | ≤0.45A | 74rpm | 25kg.cm | 55rpm | ≤1.8A | ≥70kg.cm | ≤7A |
| 212:1 | ≤0.45A | 38rpm | 40kg.cm | 30rpm | ≤1.8A | ≥70kg.cm | ≤7A |
| 280:1 | ≤0.45A | 28rpm | 40kg.cm | 23rpm | ≤1.8A | ≥70kg.cm | ≤7A |
| 590:1 | ≤0.45A | 15rpm | 40kg.cm | 13rpm | ≤1.8A | ≥70kg.cm | ≤7A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-GW4058-3162-EN-2480, 24V DC, 80type
| Ratio | No-load Current | No-load Speed | Rated Torque | Rated Speed | Rated Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 17:1 | ≤0.25A | 470rpm | 4kg.cm | 350rpm | ≤1.3A | ≥10kg.cm | ≤4.8A |
| 36:1 | ≤0.25A | 222rpm | 8kg.cm | 165rpm | ≤1.3A | ≥20kg.cm | ≤4.8A |
| 54:1 | ≤0.25A | 148rpm | 12kg.cm | 105rpm | ≤1.3A | ≥35kg.cm | ≤4.8A |
| 72:1 | ≤0.25A | 111rpm | 16kg.cm | 85rpm | ≤1.3A | ≥50kg.cm | ≤4.8A |
| 108:1 | ≤0.25A | 74rpm | 25kg.cm | 55rpm | ≤1.3A | ≥70kg.cm | ≤4.8A |
| 212:1 | ≤0.25A | 38rpm | 40kg.cm | 30rpm | ≤1.3A | ≥70kg.cm | ≤4.8A |
| 280:1 | ≤0.25A | 28rpm | 40kg.cm | 23rpm | ≤1.3A | ≥70kg.cm | ≤4.8A |
| 590:1 | ≤0.25A | 15rpm | 40kg.cm | 13rpm | ≤1.3A | ≥70kg.cm | ≤4.8A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Worm Geared DC Motor Mechanical Drawing
Compact and Powerful: Available in 6V, 12V, and 24V, this gear motor offers impressive torque and speed in a compact size, ideal for automotive and industrial where space is limited but power is essential.

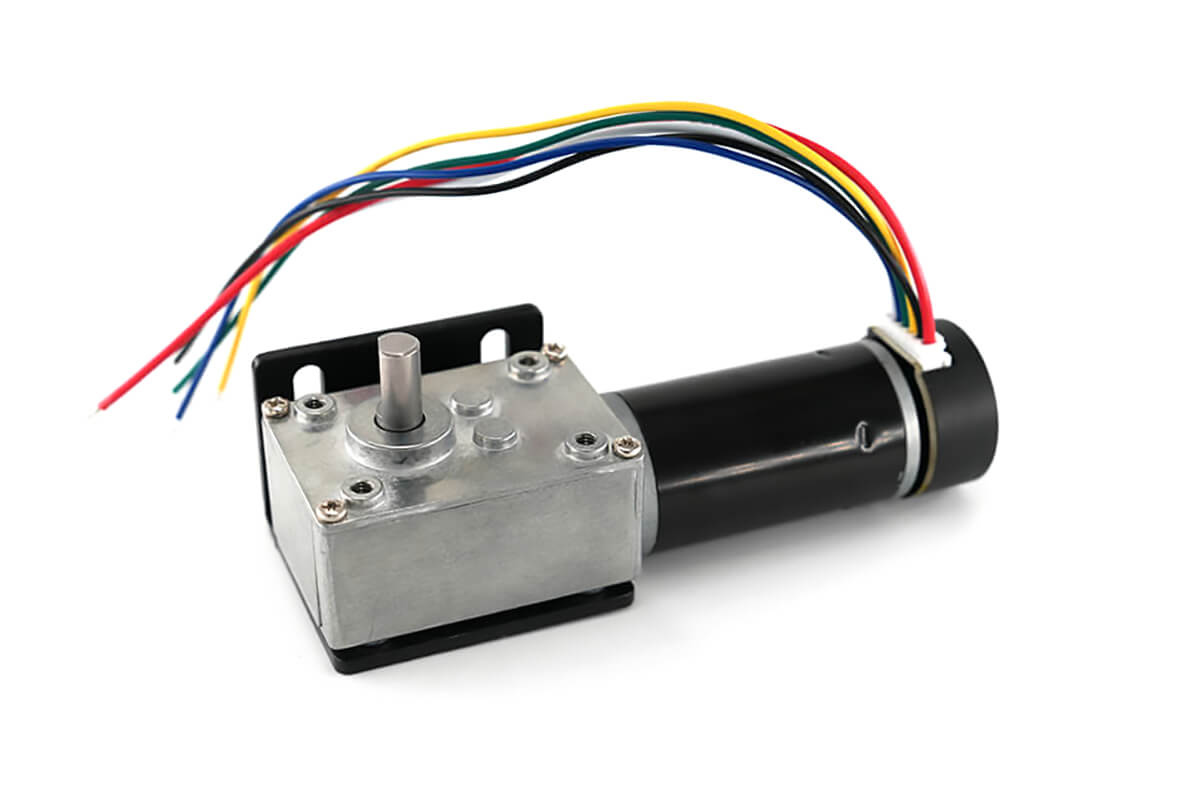

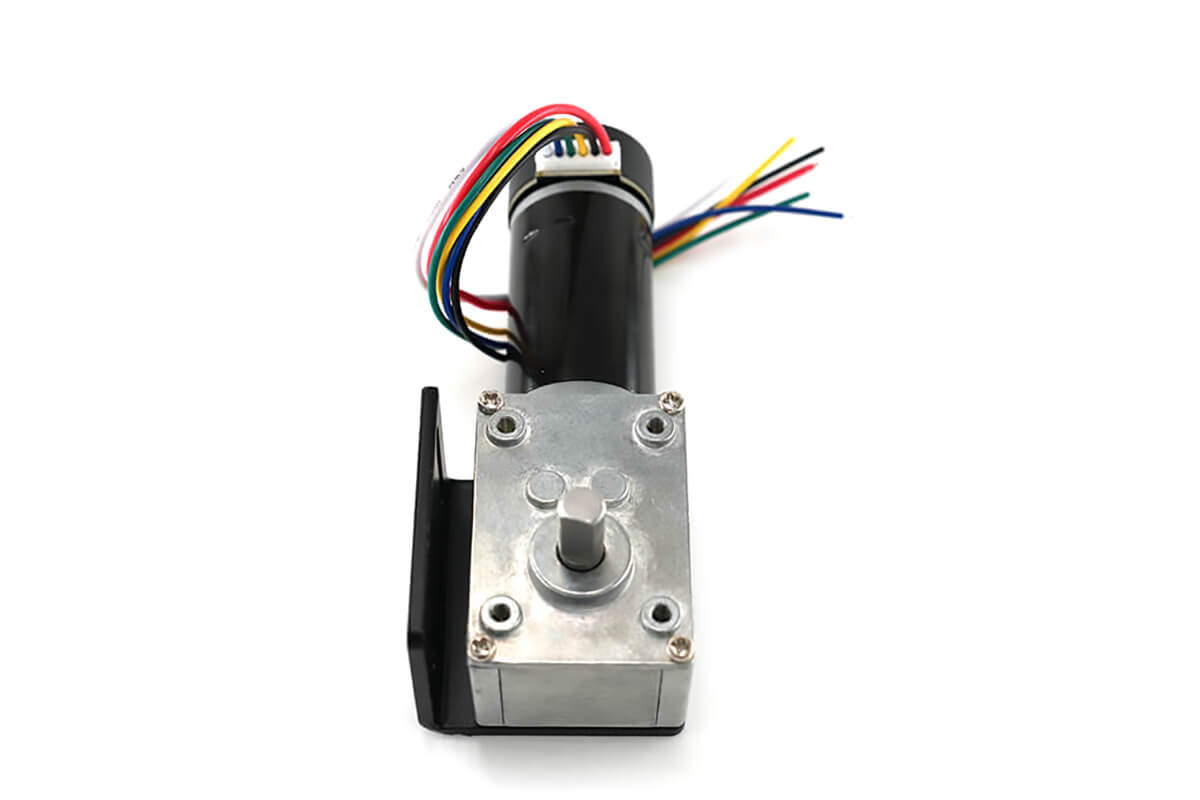

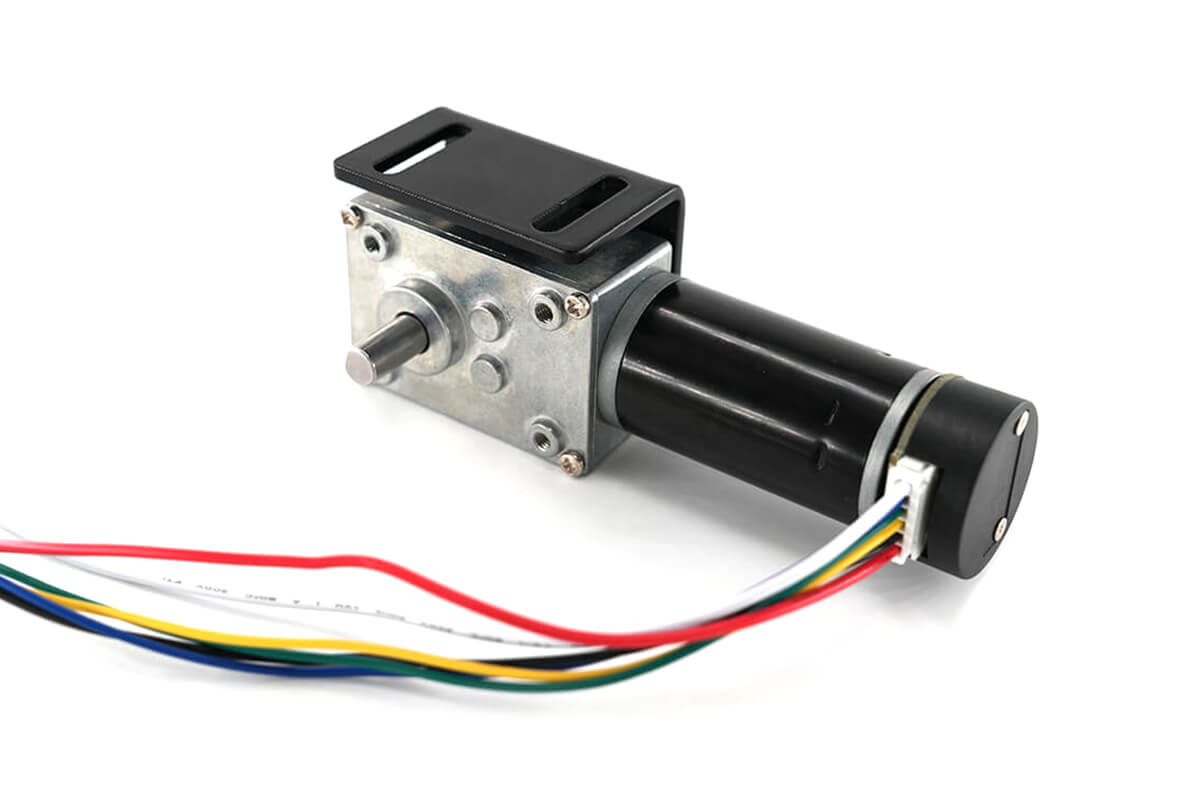

Installation Worm Gearbox Motor Bracket Dimension
The Hall encoder is a sensor device used for detecting the position or rotational speed of a motor, it is compact, accurate, and reliable, making it suitable for motors that require precise position feedback. It is commonly used in applications like robotics, automation systems, and electric vehicles. The encoder offers stable performance with minimal interference from external magnetic fields.
12V DC Motor with Encoder Connection Made
| AB Dual-phase Incremental Magnetic Hall Encoder | |
|---|---|
| Line Speed | Basic Pulse 11PPR x Gear Reduction Ratio |
| Supply Voltage | 3.3V / 5.0V DC |
| Basic Skills | Built-in pull-up shaping resistor, direct connection to MCU |
| Interface Type | XH2.54 (standard connection cable) |
| Output Signal Type | Square Wave AB Phase |
| Response Frequency | 100KHz |
| Basic Pulse Number | 11PPR |
| Number Of Magnetic Ring Trigger Poles | 22 Poles (11 Pairs) |
Related Motor Models & Options
If you require a motor with similar torque characteristics but without the integrated magnetic encoder, consider the 31mm 6V 12V 24V DC Worm Gear Motor Self-locking 70Kg.cm Model NFP-5840-31ZYS-S for standard direction control.

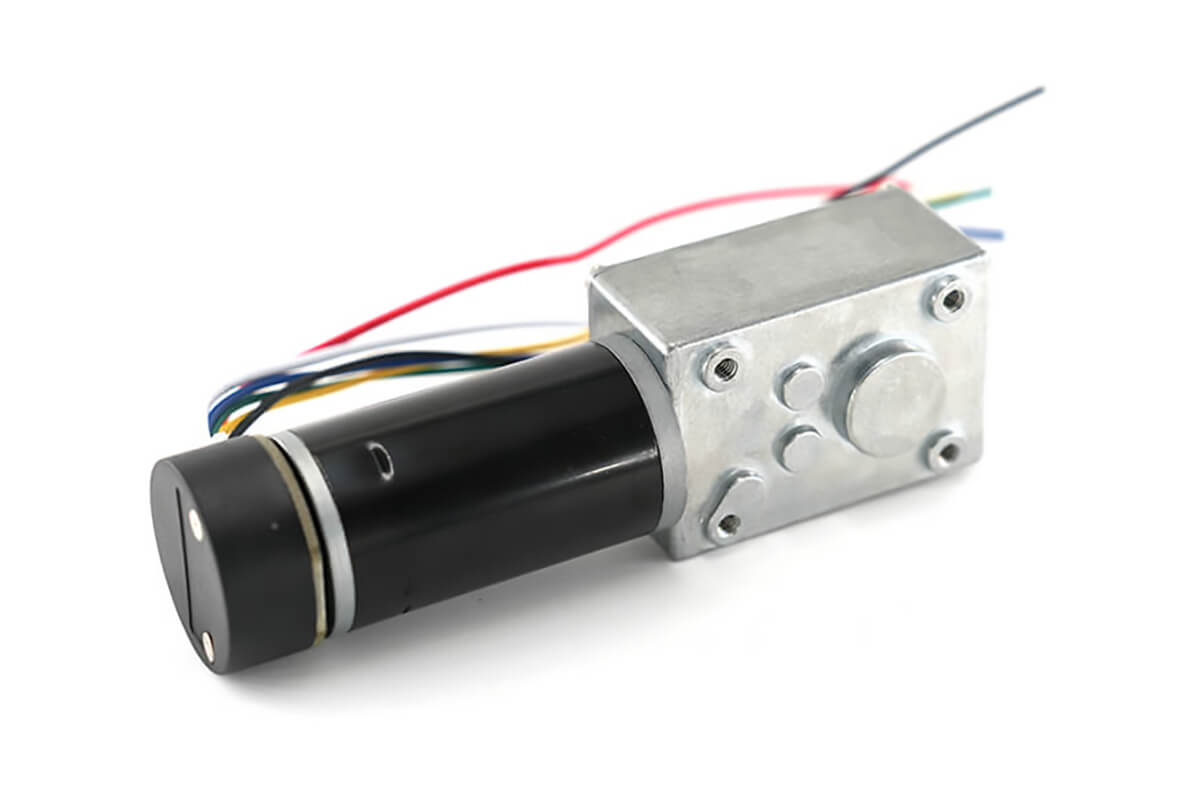

For applications that need precise feedback in a single-shaft configuration, view the 31mm 6V 12V 24V DC Motor with Encoder 40Kg.cm Self-locking NFP-GW5840-3162DS-EN.
For higher-speed, lower-torque requirement single 12V setup without encoder feedback, check the 31mm 12V 40RPM DC Worm Geared Motor 8mm Shaft 15Kg.cm Model NFP-5840-31ZYS-S-1240.
If your project calls for a compact inline planetary reduction ratio with built-in encoder instead of a right-angle worm gear, see the 20mm DC Planetary Geared Motor with Encoder Model NFP-20GP-180-EN.
For miniature precision motion requiring micro spur gear gearing, explore the 12mm 3V 6V 12V Spur Metal Gear Motor Model NFP-GM12-N20.
Keywords: dc motor worm gearmotors, electric worm gear engine, gear worm motor, 12 volt dc worm gear motor, 12 volt dc 150 rpm worm gear motor, micro worm gearbox motor.
