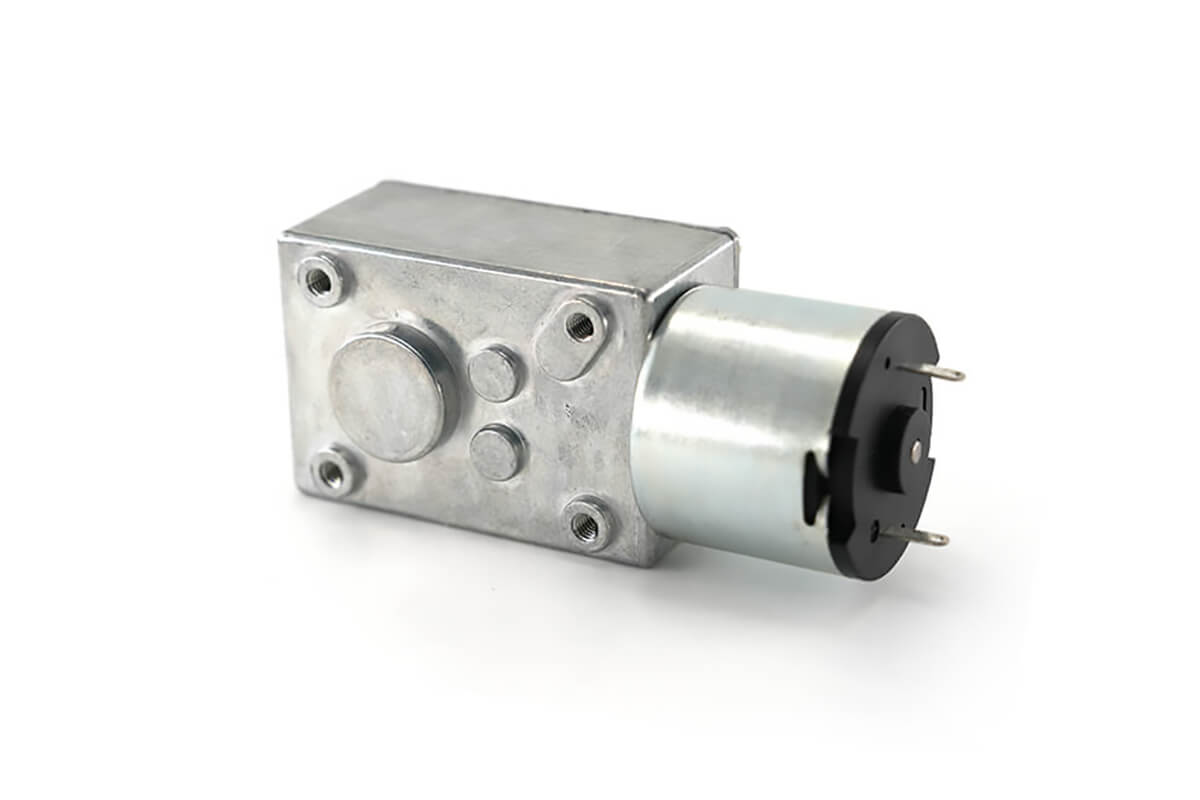

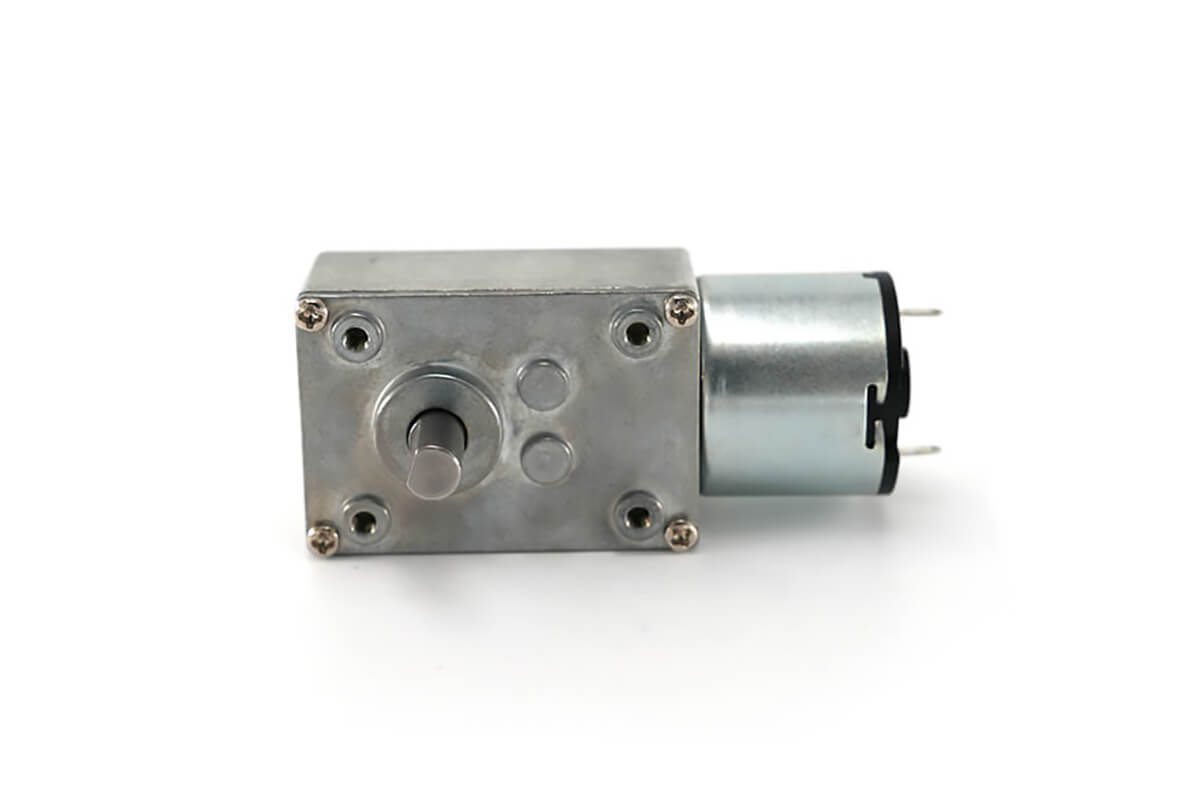

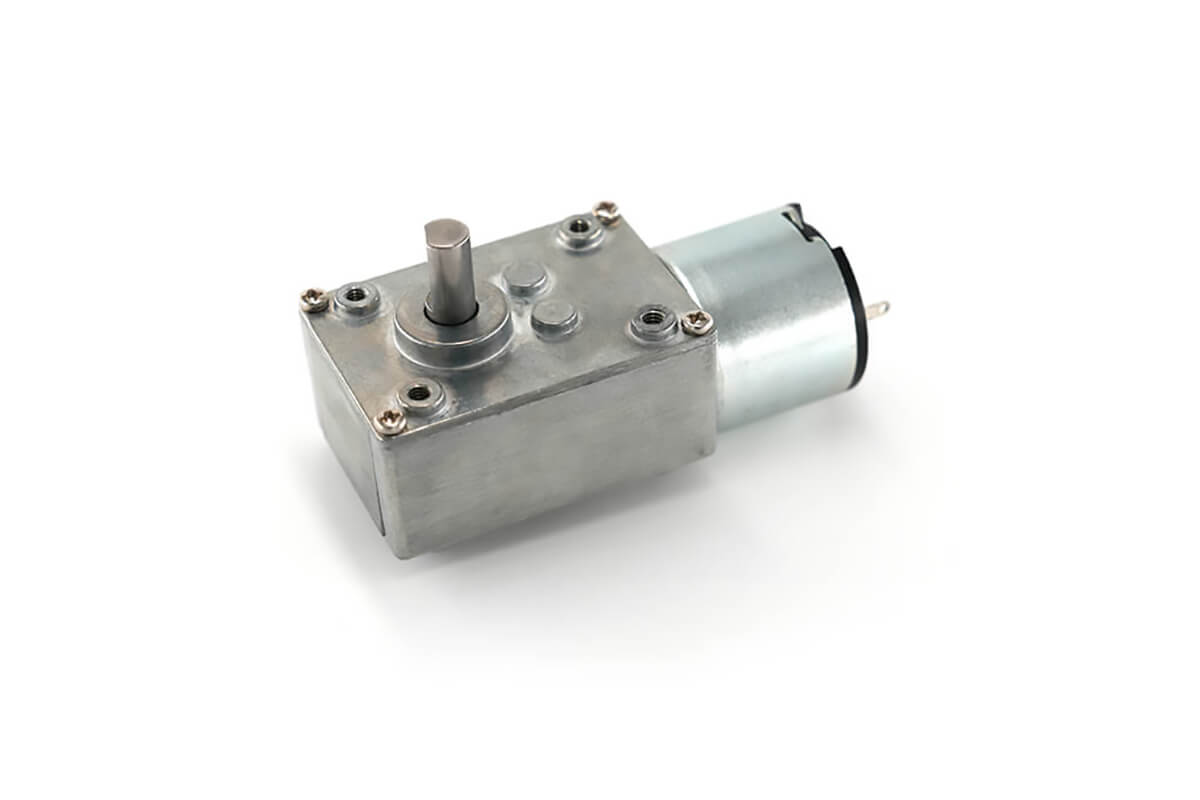

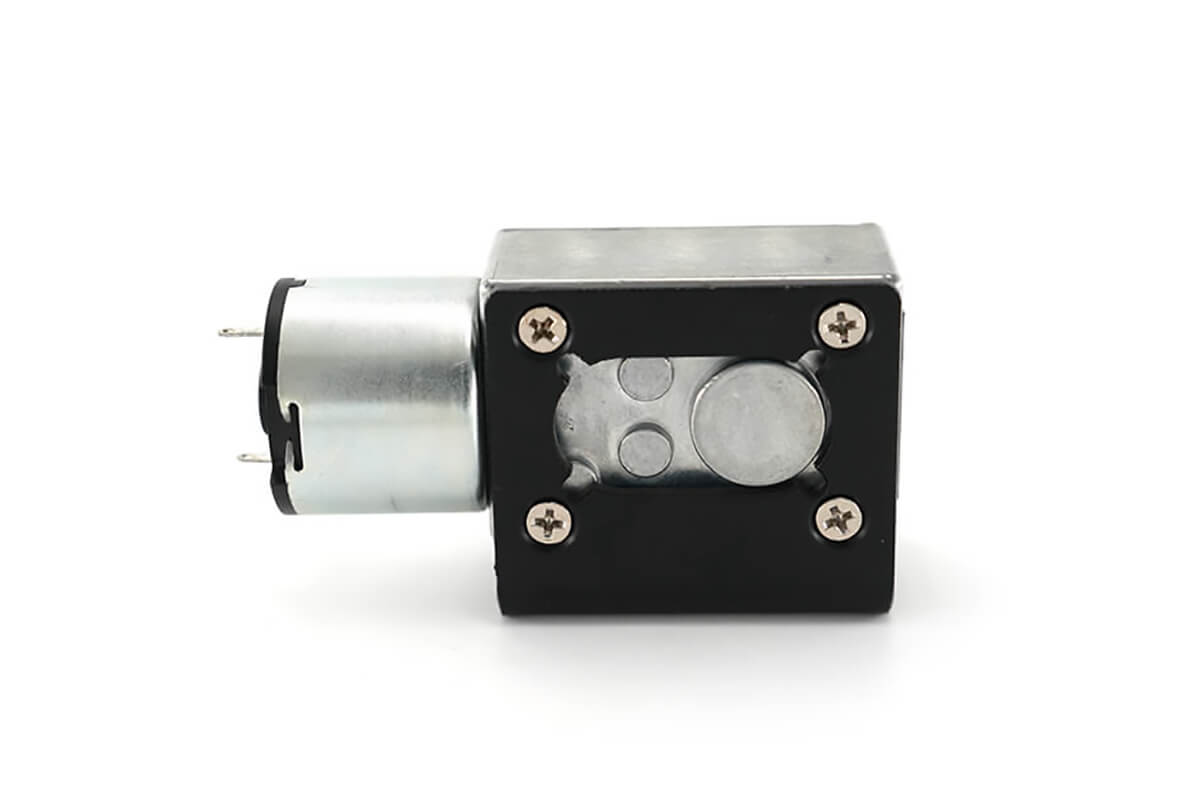

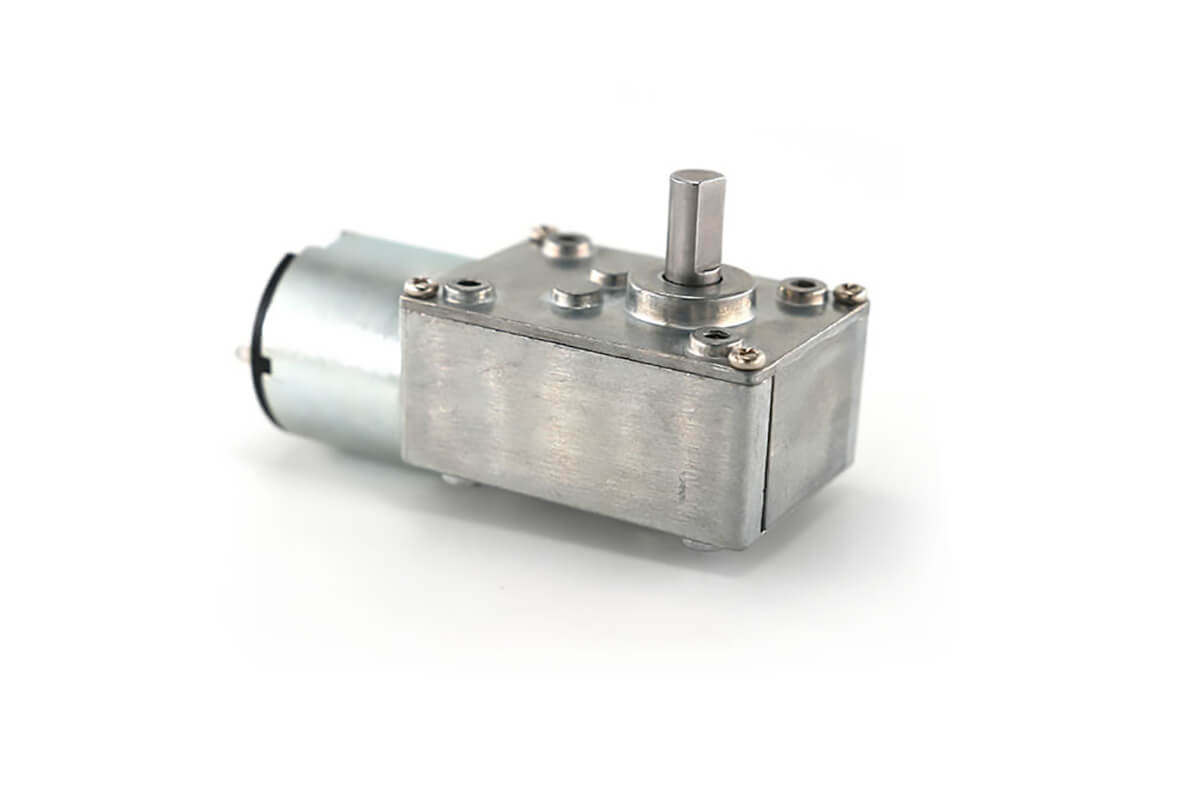

34mm 12V 24V DC Worm Geared Motor 30Kg.cm Self-locking Model NFP-5840-3429
$25.00
Unlock the power of efficiency with our 34mm 12V 24V DC Worm Geared Motor, complete with precision ball bearings. Experience low noise and high performance!

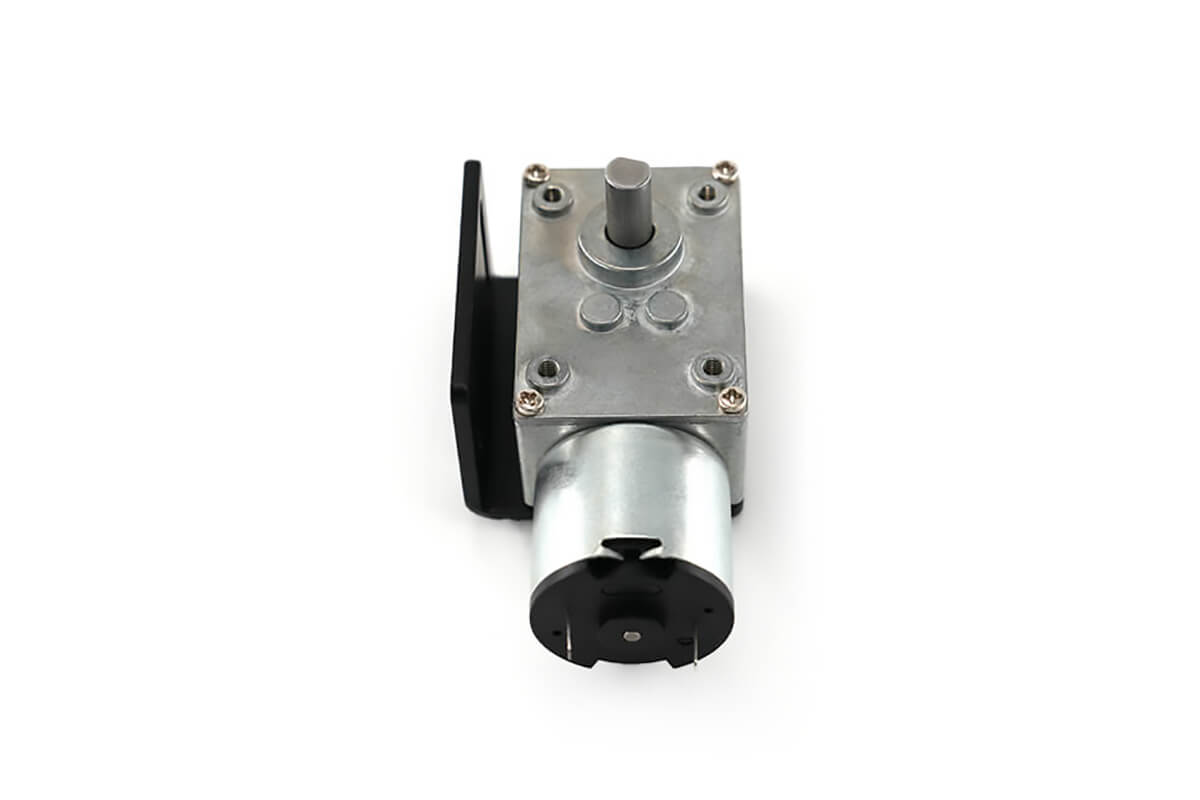

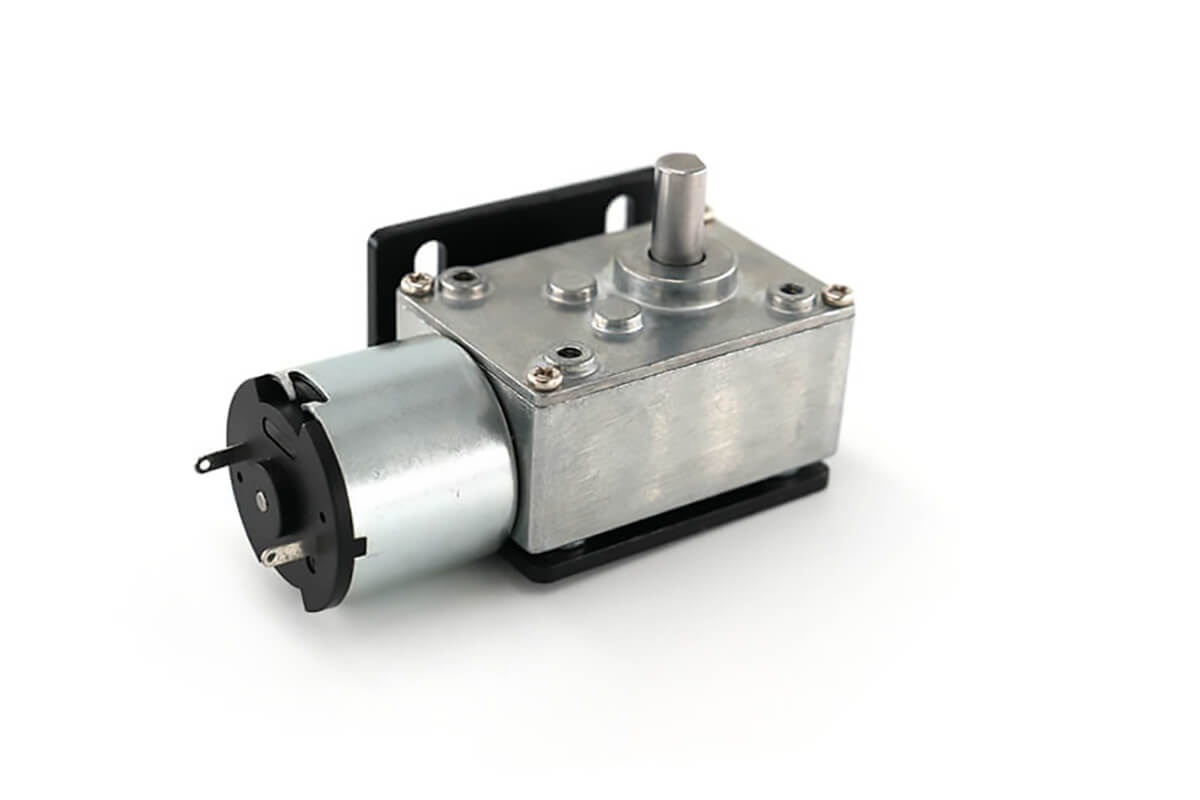

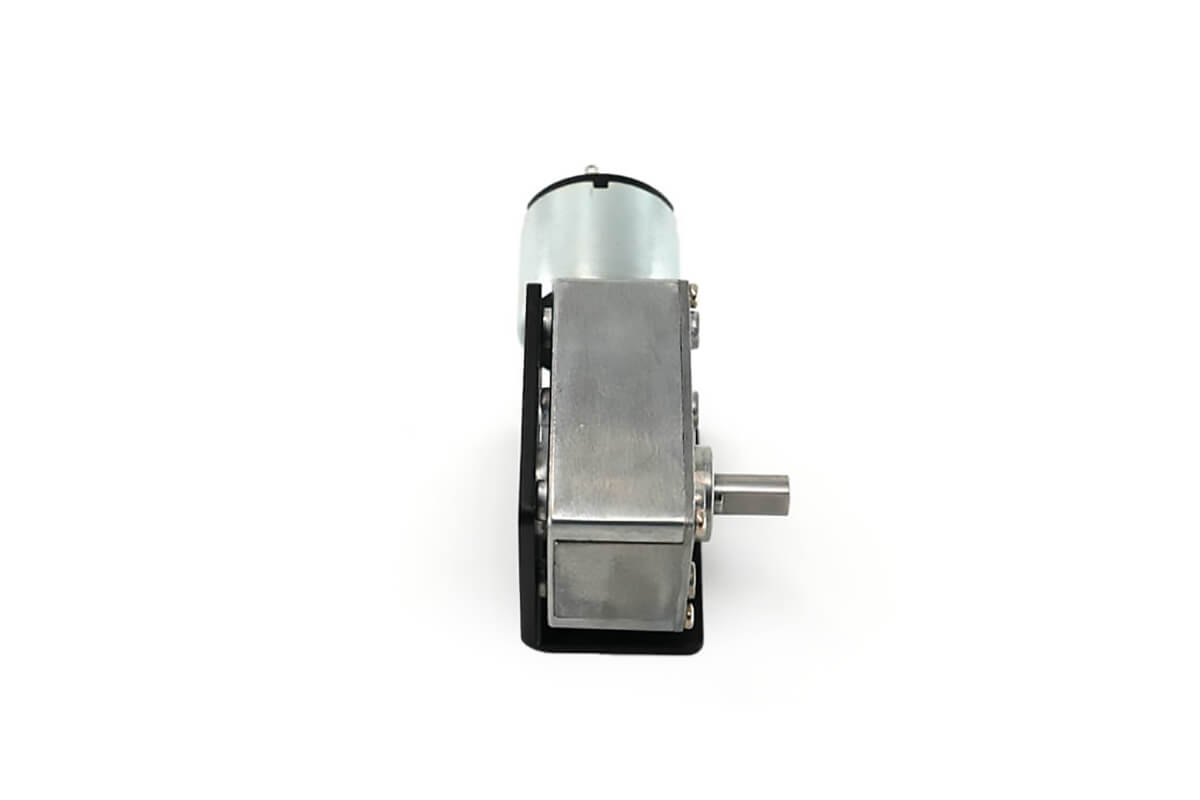

High Torque DC Worm Gear Motor with Bracket Specification
- Permanent Magnet DC Worm Gear Motors Functions: Power off self-locking function, support speed control, CW-OFF-CCW.
- High Quality Material: Wholemetal gears, pure copper wire winding, worm gearbox.
- Ball Bearing: Small friction resistance, low noise, long life, fast heat dissipation, high precision, strong composite ability.
- D-shape Spindle: Easier to install, less slippery, saves installation time.
- Key Features: Silent, big torque, low consumption and energy saving, smooth power, durable.
| Model | NFP-5840-3429 |
|---|---|
| Motor Diameter | 34mm |
| Length | 87.4mm |
| Shaft Diameter | 8mm |
| Shaft Length | 15mm |
| Rated Voltage | 12V / 24V DC |
| No-load Speed | 4rpm – 195rpm |
| No-load Current | ≤0.1A / ≤0.15A |
| Work Voltage Range | 3V – 24V |
| Power | 0.3W / 0.7W / 1.5W / 2.6W |
| Rotation | CW / CCW |
| Weight | appr. 270g |
Model: NFP-5840-3429, 12V DC, 2450#
| Ratio | No-load Speed | No-load Current | Rated Torque | Rated Speed | Rated Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 36:1 | 70rpm | ≤0.1A | 0.6kg.cm | 35rpm | ≤0.3A | 1.5kg.cm | ≤1.2A |
| 54:1 | 45rpm | ≤0.1A | 1kg.cm | 25rpm | ≤0.3A | 2kg.cm | ≤1.2A |
| 72:1 | 33rpm | ≤0.1A | 1.2kg.cm | 18rpm | ≤0.3A | 3kg.cm | ≤1.2A |
| 108:1 | 23rpm | ≤0.1A | 1.9kg.cm | 12rpm | ≤0.3A | 4.5kg.cm | ≤1.2A |
| 280:1 | 9rpm | ≤0.1A | 5kg.cm | 4.5rpm | ≤0.3A | 10kg.cm | ≤1.2A |
| 590:1 | 4rpm | ≤0.1A | 8kg.cm | 2.2rpm | ≤0.3A | 21kg.cm | ≤1.2A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-5840-3429, 12V DC, 2473#
| Ratio | No-load Speed | No-load Current | Rated Torque | Rated Speed | Rated Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 36:1 | 97rpm | ≤0.1A | 1kg.cm | 57rpm | ≤0.48A | 2.5kg.cm | ≤1.1A |
| 54:1 | 65rpm | ≤0.1A | 1.5kg.cm | 38rpm | ≤0.48A | 3.8kg.cm | ≤1.1A |
| 72:1 | 48rpm | ≤0.1A | 2kg.cm | 28rpm | ≤0.48A | 5kg.cm | ≤1.1A |
| 108:1 | 32rpm | ≤0.1A | 3kg.cm | 19rpm | ≤0.48A | 8kg.cm | ≤1.1A |
| 280:1 | 12.5rpm | ≤0.1A | 7.5kg.cm | 7rpm | ≤0.48A | 20kg.cm | ≤1.1A |
| 590:1 | 6rpm | ≤0.1A | 16kg.cm | 3.5rpm | ≤0.48A | 35kg.cm | ≤1.1A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-5840-3429, 24V DC, 2450#
| Ratio | No-load Speed | No-load Current | Rated Torque | Rated Speed | Rated Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 36:1 | 140rpm | ≤0.1A | 1.3kg.cm | 73rpm | ≤0.55A | 3kg.cm | ≤1.2A |
| 54:1 | 92rpm | ≤0.1A | 2kg.cm | 50rpm | ≤0.55A | 4.5kg.cm | ≤1.2A |
| 72:1 | 69rpm | ≤0.1A | 2.5kg.cm | 37rpm | ≤0.55A | 6kg.cm | ≤1.2A |
| 108:1 | 46rpm | ≤0.1A | 3.8kg.cm | 25rpm | ≤0.55A | 9kg.cm | ≤1.2A |
| 280:1 | 17.5rpm | ≤0.1A | 10kg.cm | 9.5rpm | ≤0.55A | 22kg.cm | ≤1.2A |
| 590:1 | 8.5rpm | ≤0.1A | 17kg.cm | 4.5rpm | ≤0.55A | 40kg.cm | ≤1.2A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-5840-3429, 24V DC, 2473#
| Ratio | No-load Speed | No-load Current | Rated Torque | Rated Speed | Rated Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 36:1 | 195rpm | ≤0.15A | 2kg.cm | 112rpm | ≤0.85A | 5kg.cm | ≤2A |
| 54:1 | 130rpm | ≤0.15A | 3kg.cm | 76rpm | ≤0.85A | 7.5kg.cm | ≤2A |
| 72:1 | 97rpm | ≤0.15A | 4kg.cm | 57rpm | ≤0.85A | 10kg.cm | ≤2A |
| 108:1 | 65rpm | ≤0.15A | 6kg.cm | 38rpm | ≤0.85A | 15kg.cm | ≤2A |
| 280:1 | 25rpm | ≤0.15A | 15kg.cm | 14.5rpm | ≤0.85A | 35kg.cm | ≤2A |
| 590:1 | 12rpm | ≤0.15A | 30kg.cm | 7rpm | ≤0.85A | 40kg.cm | ≤2A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Low Noise Reversible Worm Gear Reducer Motor Outline Drawing
DC worm gear motor widely used for intelligent robots, smart door locks, household appliances, electric curtains, electric drying racks, etc.
Keywords:
worm gear motor 12v, battery worm gear reducer, high torque worm gearbox, 12 volt right angle worm drive gear motor, wholesale micro speed reducer, high power worm gearbox motor.
Sampling quantities for stocked models are available for ordering directly from us online.
Engineering & Manufacturing:
Please contact one of our Sales Engineers for a quotation for production and consultation for customization and integration services.
Payment Method:
Payment methods : Paypal or T/T
Shipping Method:
1.Delivery: DHL door to door 5-7days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
5.In order to ensure you receive your order tax free upon import, we will declare it with a lower value, pls be noted ,thanks!
FAQ – Frequently Asked Questions
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
